Neodymium Cylinder Magnet - 5mm x 5mm | N50M | High Temperature ≤100ºC

Product code: C-D5H5-N50M

for 1 to 9 items
$1.04buy 10 to 99 itemsand save 9%
$0.92buy 100+ itemsand save 20%

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

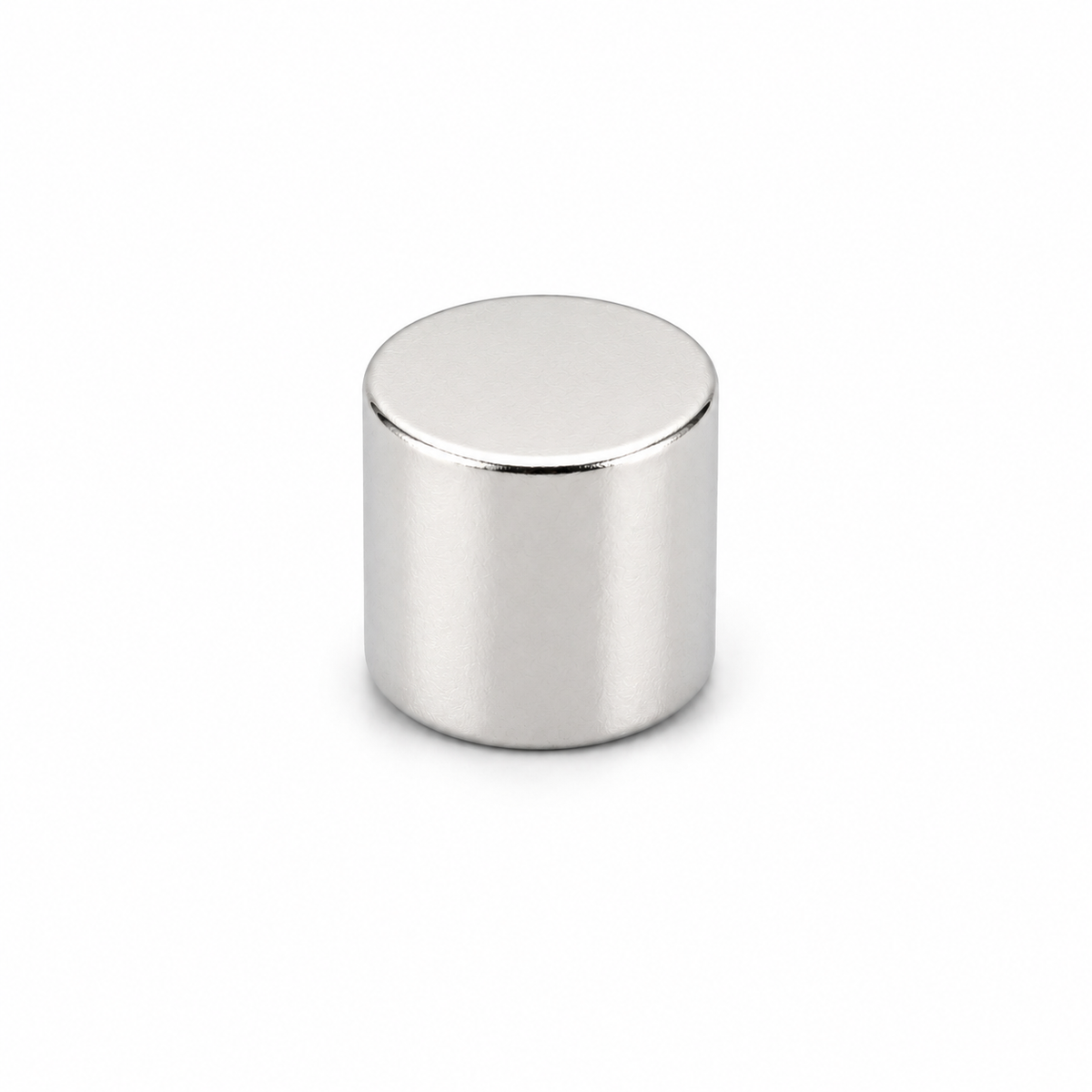

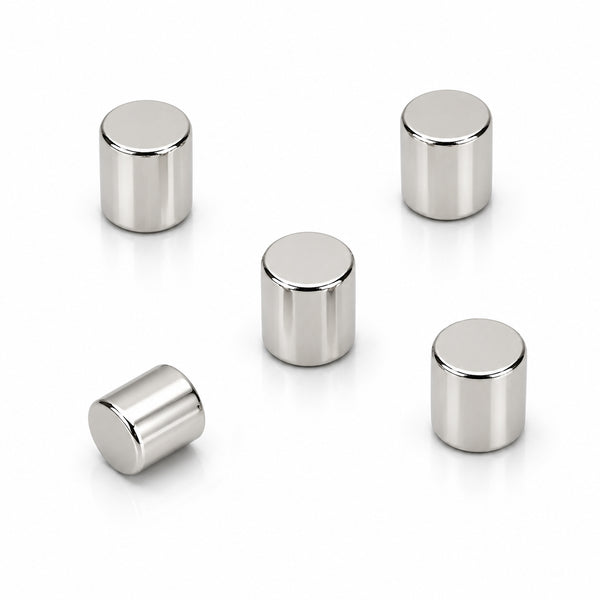

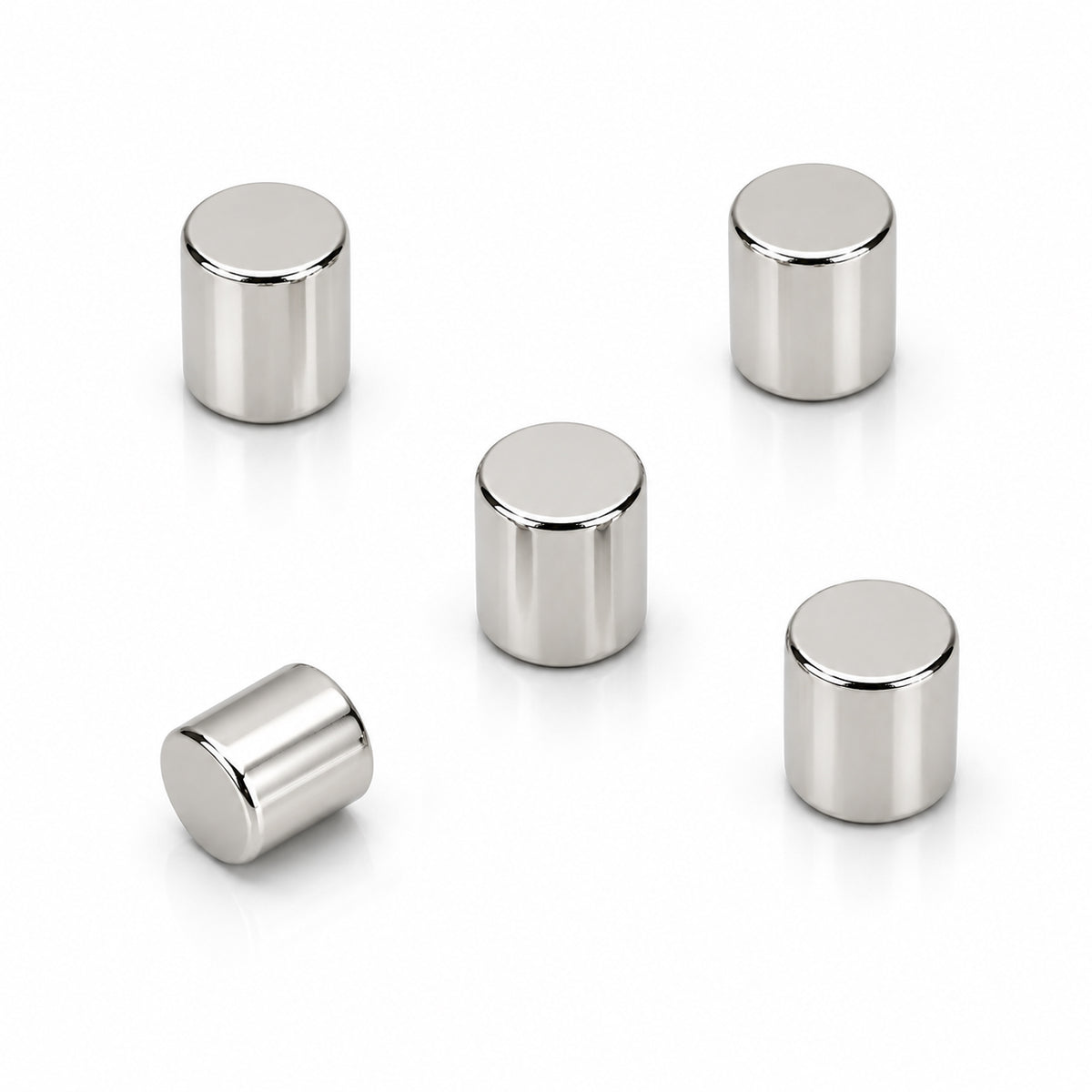

Neodymium Cylinder Magnet - 5mm x 5mm | N50M | High Temperature ≤100ºC

Rated 5.0 out of 5
Based on 1 review
Product Code C-D5H5-N50M
Pull Force* 1.088 kg
Weight 10 gm
Style Neodymium Cylinder magnet
Gauss 6482
Grade N50M
Coating Nickel (NiCuNi)
Direction of Magnetisation Through height
Dimensions Height:5mm, Diameter:5mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 5mm x 5mm | N50M | High Temperature ≤100ºC

Magnetic Product Description:

This Neodymium cylinder has high-temperature resistance (up to 100°C) and contains higher strength N50 grade Neodymium inside a nickel-coated exterior. Height and diameter dimensions are 5mm and the pull force exceeds 1kg. Surface gauss measures 6482G.

Uses for our rare earth cylinder magnets:

Magnets of this caliber resist the demagnetising effect that is caused by exposure to heat and are chosen for applications where operating environments exceed 80°C. Processing plants that use heat treatments for manufacturing or sterilizing their products require sensitive and reliable magnetic devices for controlling, measuring and monitoring that need to remain reliable and operational under these conditions. Cylinder-shaped permanent Neodymium magnets are often included as components in sensors and warning systems that are crucial to the safe and compliant operation of manufacturing and commercial processes. This N50M Grade magnet suits specialised applications where size, strength and heat resistance parameters need to be met with precision. High-tech Industries where reliable and temperature-sensitive Neodymium magnets are necessary can include automation and robotics, electric motor vehicle manufacturing and Aviation.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Les F.
Verified Buyer
I recommend this product
Rated 5 out of 5
Review posted

Model Engine ignition timing magnets

Magnets supplied were of exceptional quality,fit for purpose and the delivery was also very fast to W.A.

Was this helpful?

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
