Cylindrical magnets are sometimes also referred to as ‘Rod’ or ‘Tube’ Magnets. Cylinder magnets have much bigger height or length dimensions compared to a disc magnet, which means there is more magnetic material between the two flat poles at each end. Because of this, they are able to produce more magnetic power than disc magnets.
The cylinder shape is important to the operation of many simple devices where the cylinder magnet is used to hold two surfaces together or to detect metal that falls within its field range. Cylinder magnets are the ideal shape to fit into pre-drilled holes in surfaces made from timber, acrylics and other materials where the magnet can be used to do anything from magnetically hanging signage to securing the lid of storage spaces. High energy output and concentrated magnetic fields from narrow, small diameter poles also make the cylinder-shaped magnet a great detecting or sensing tool that is often incorporated into alarms and industrial equipment warning systems. The elongated shape of cylinder magnets is also easier to grasp by hand which can make it a useful accessory for magnetic whiteboards or for temporary hanging of diagrams and documents.
Cylinder shaped permanent magnets are available in both Ceramic or Rare Earth form and should be selected based on their strength, intended use or the particular magnetic properties required for your application. Neodymium is by far the strongest of magnetic materials but others may have higher temperature tolerance or offer better corrosion resistance. The AMF catalogue contains a huge range of Cylinder magnets that vary in size, material and magnetic grade, ensuring that finding the right magnet for your needs is a quick and simple process.
Neodymium Cylinder Magnet - 6mm x 6mm
Pull Force: 1.2 kg
Neodymium Cylinder Magnet - 6mm x 6mm | N50
Pull Force: 1.59kg
Neodymium Cylinder Magnet - 3mm x 5mm N45
Pull Force: 345 gm
Neodymium Cylinder Magnet - 5mm x 5mm | N50M | High Temperature ≤100ºC
Pull Force: 1.088 kg
Neodymium Cylinder Magnet - 1mm x 3mm | N50
Neodymium Cylinder Magnet - 25.4mm x 50.8mm | N52
Pull Force: 38.75 kg
Neodymium Cylinder Magnet - 6.35mm x 12.7mm
Pull Force: 1.58 kg
Neodymium Cylinder Magnet - 10mm x 20mm
Pull Force: 4 kg
Neodymium Cylinder Magnet - 5mm x 10mm | N50
Pull Force: 1.2 kgs

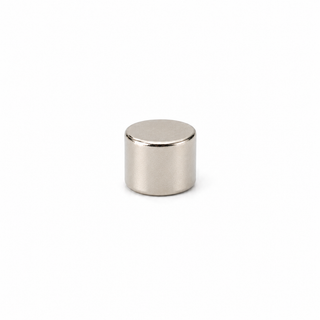

Neodymium Cylinder Magnet - 2mm x 2mm N50
Pull Force: 0.1130 kgs
