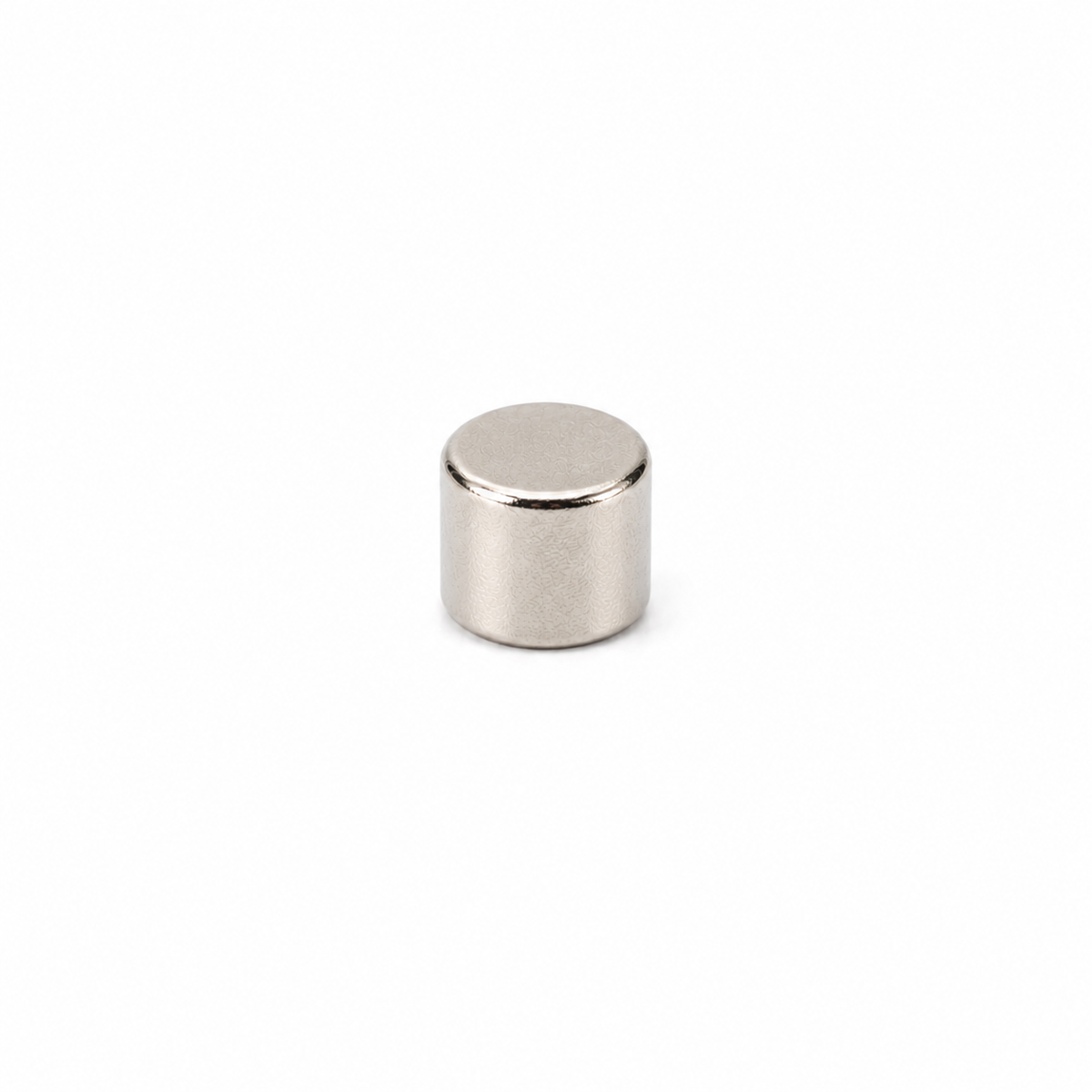

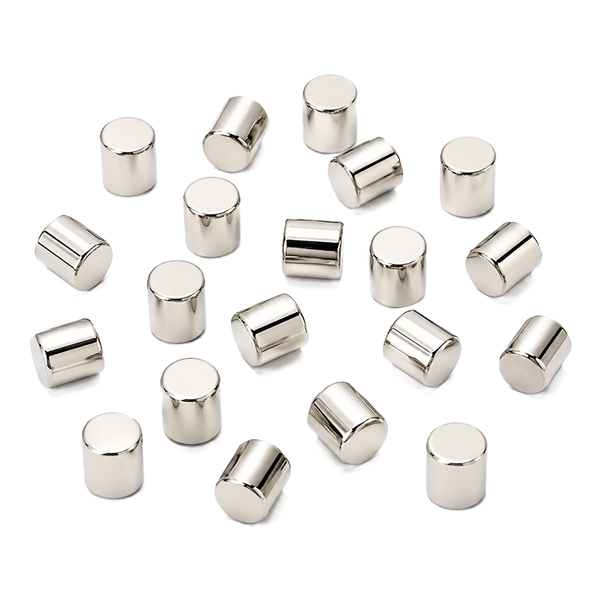

Neodymium Cylinder Magnet - 1.58mm x 1.58mm | N52

Product code: C-D1.58H1.58-N52

$0.30for 1 to 99 items
$0.25buy 100 to 999 itemsand save 16%
$0.20buy 1000+ itemsand save 33%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 1.58mm x 1.58mm | N52

Product Code C-D1.58H1.58-N52
Pull Force* 0.1980 kg
Weight 1 gm
Style Neodymium Cylinder magnet
Gauss 6610.23
Grade N52
Coating Nickel (NiCuNi)
Direction of Magnetisation Through height - 1.58mm
Dimensions Height:1.58 mm, Diameter:1.58 mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 1.58mm x 1.58mm | N52

Magnetic Product Description:

This cylindrical Rare Earth magnet has equal height and diameter dimensions of 1.58mm. Magnetic Flux measures 6610.23 Gauss, It has a pull force of 0.198kg and a nickel-based outer coating that improves durability. This magnet is manufactured with maximum strength N52 Grade Neodymium.


Uses for our rare earth cylinder magnets:

This minute cylinder magnet is manufactured with the highest, and therefore strongest, N52 Grade Neodymium material. Cylindrical shapes are most suited to applications where they can be embedded into small drilled holes in other materials to create a point of magnetic attachment. This bond can be created using either a metallic surface or another magnet with a pole arranged in an opposing direction. Cylinder magnets also play an important role in sensitive measuring devices where their shape provides a unique type of field that is both deep and concentrated. Meters and gauges that control large scale industrial processes contain sensitive cylinder magnets for detection and measuring purposes. Permanent Neodymium magnets provide the accuracy and reliability that these essential devices require to operate effectively over long periods.

Neodymium Cylinder Magnet - 1.58mm x 1.58mm | N52 (C-D1.58H1.58-N52)

Grade
N52 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.43-1.8 N/A
Remanence Br(kGs)
14.3-14.8 N/A
Coercivity bHc(kA/m)
>=876 N/A
Coercivity bHc(Oe)
>=11 N/A
Intrinsic Coercivity iHc(kA/m)
>=960 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
390-422 N/A
Max Energy Product(BH)max(MGOe)
49-53 N/A
Grade N52 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.43-1.8 N/A
Remanence Br(kGs) 14.3-14.8 N/A
Coercivity bHc(kA/m) >=876 N/A
Coercivity bHc(Oe) >=11 N/A
Intrinsic Coercivity iHc(kA/m) >=960 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 390-422 N/A
Max Energy Product(BH)max(MGOe) 49-53 N/A
