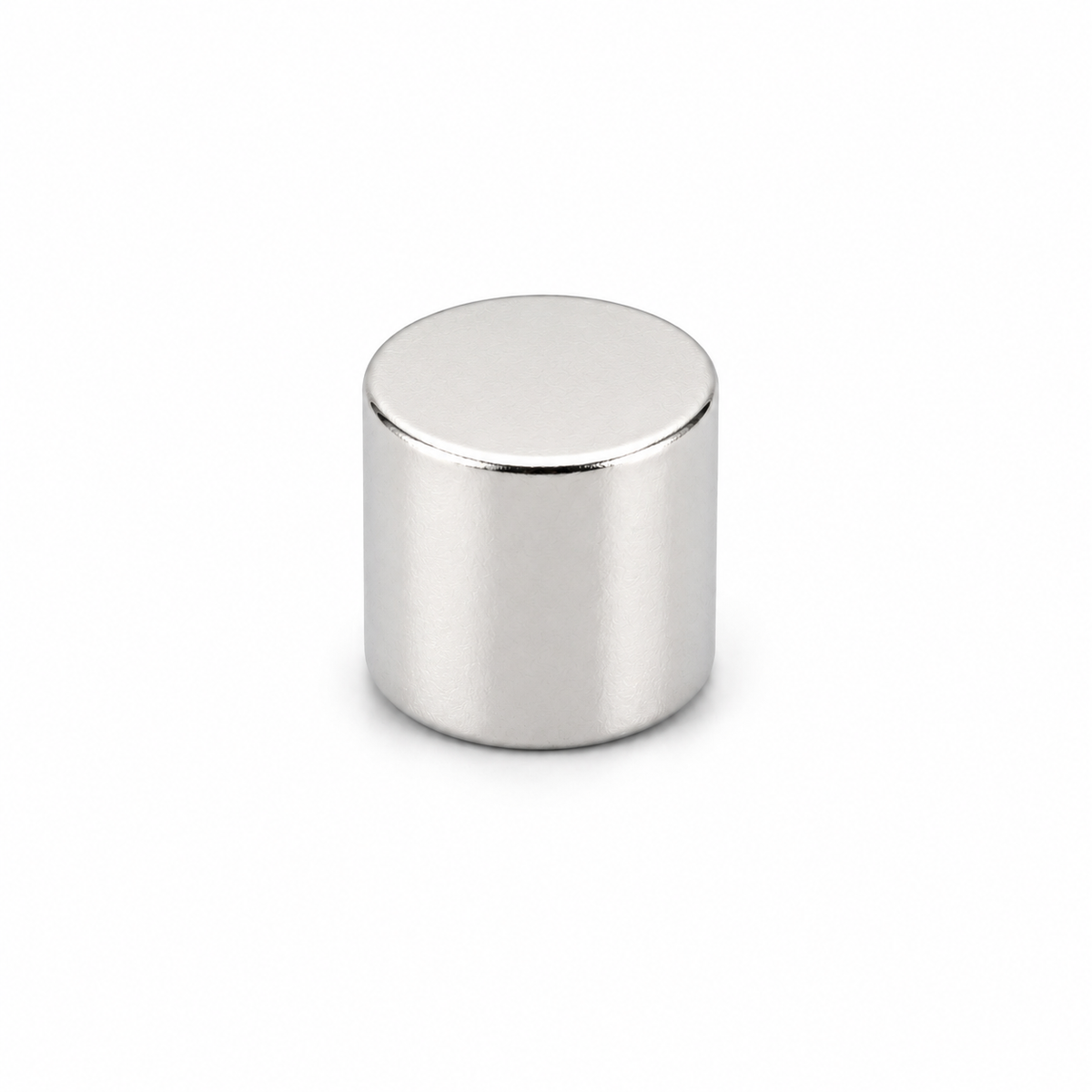

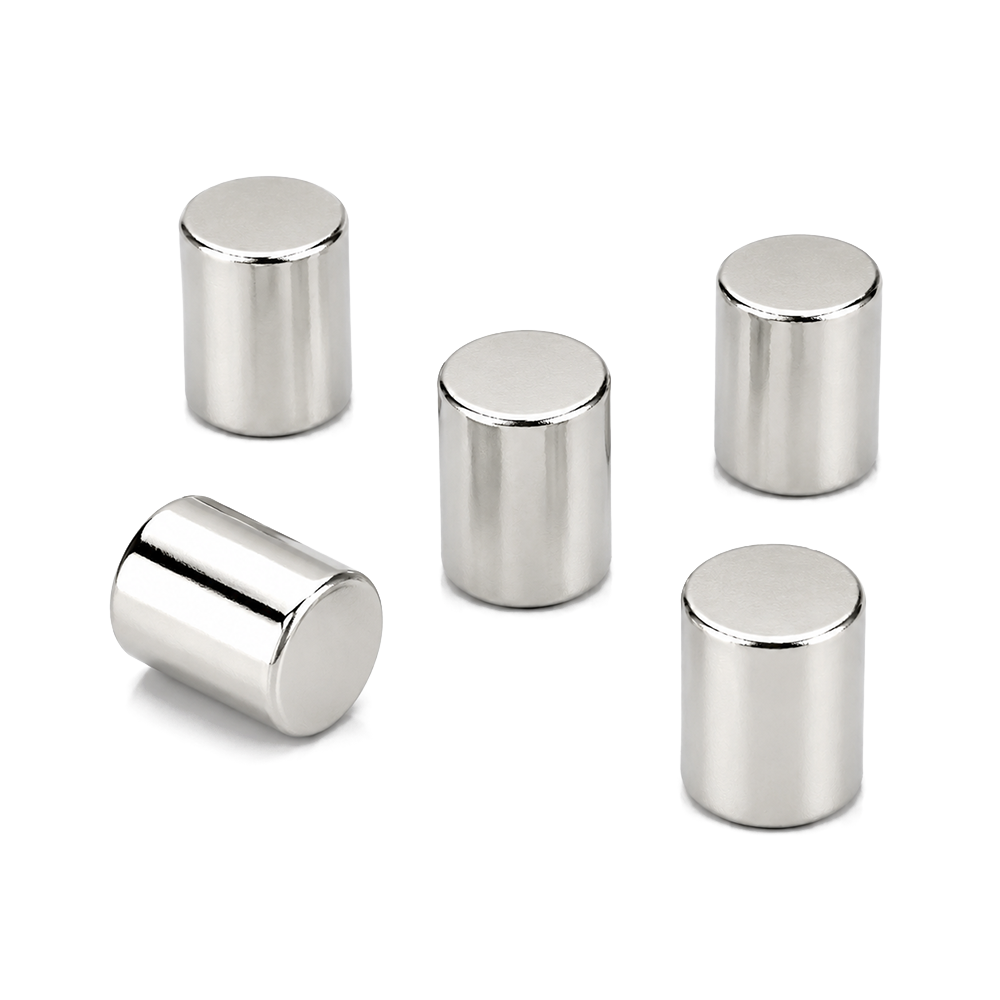

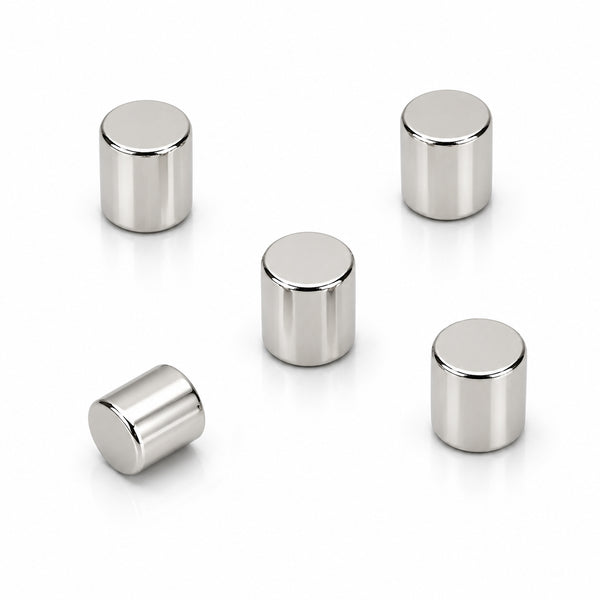

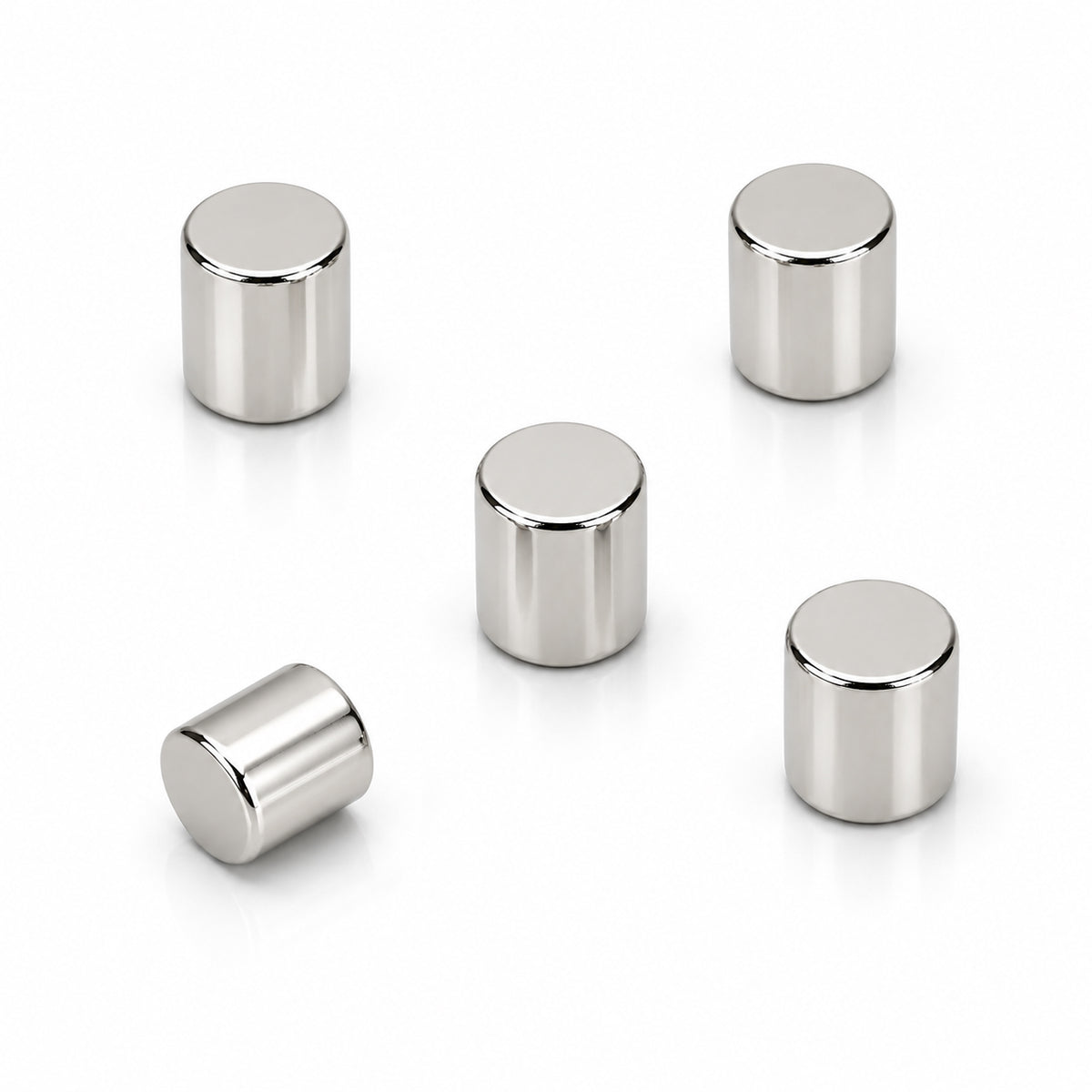

Neodymium Cylinder Magnet - 5mm x 6mm

Product code: 21050.5

$1.04for 1 to 9 items
$0.83buy 10 to 99 itemsand save 20%
$0.75buy 100+ itemsand save 27%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 5mm x 6mm

Product Code 21050.5
Pull Force* 1 kg
Weight 1 gm
Style Rare Earth Cylinder magnet
Gauss 5635
Grade N45
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:6mm, Diameter:5mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 5mm x 6mm

Magnetic Product Description:

This Rare Earth cylinder has a diameter of 5mm and a height of 6mm. It has a magnetic flux reading of 5635 Gauss and a pull force of 1 kilogram. Its part number is 21050.5.


Uses for our Rare Earth cylinder magnets:

The Neodymium Cylinders are a great versatile product that is suited to many applications due to their small size but strong magnetic pull. These small Neodymium Cylinders specifically are 5mm in diameter and 6mm long, with a surprising pull force of 1kg, considering their small size. The magnet is made of N45 Grade Neodymium which gives it even stronger magnetic energy and deeper field penetration. This makes small Rare Earth cylinders perfect for applications where accuracy and precision is required, coupled with an elegant and sleek appearance. These small discs would often be used in display applications, arts and crafts, as well as within small motors used as a sensor mechanism. They are also known to provide accuracy and efficiency when used within electronic devices such as microphones and speakers.

Neodymium Cylinder Magnet - 5mm x 6mm (21050.5)

Grade
N45 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.32-1.38 N/A
Remanence Br(kGs)
13.2-13.8 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
334-366 N/A
Max Energy Product(BH)max(MGOe)
42-46 N/A
Grade N45 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.32-1.38 N/A
Remanence Br(kGs) 13.2-13.8 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 334-366 N/A
Max Energy Product(BH)max(MGOe) 42-46 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
