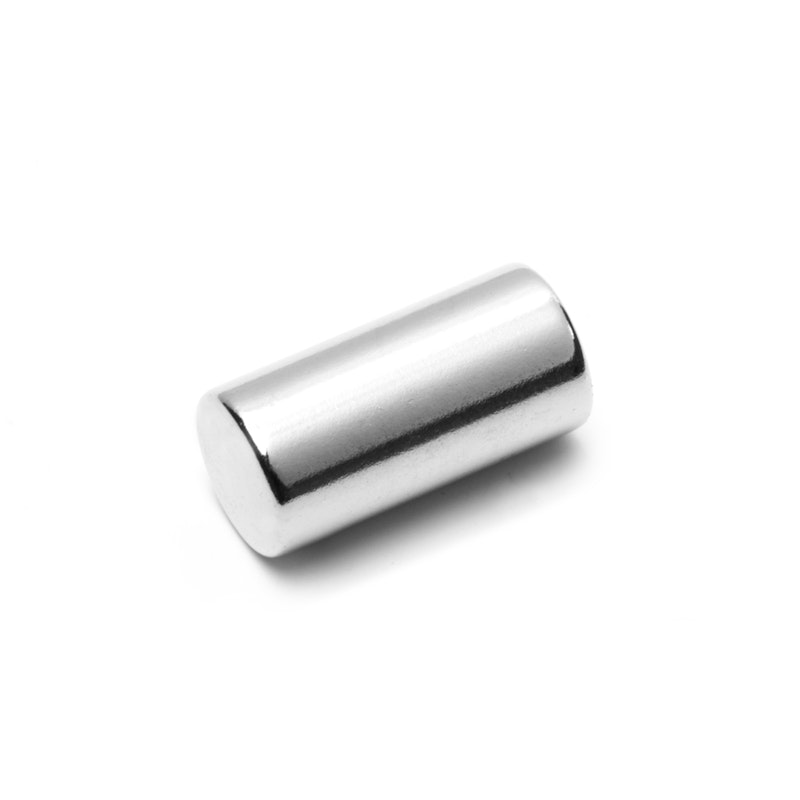

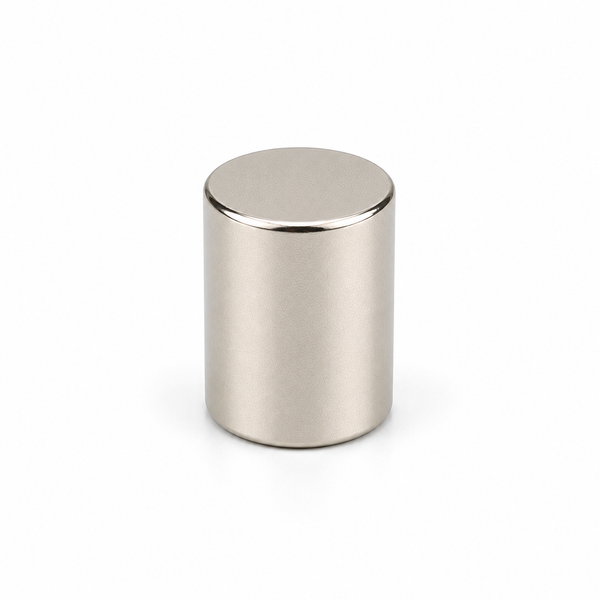

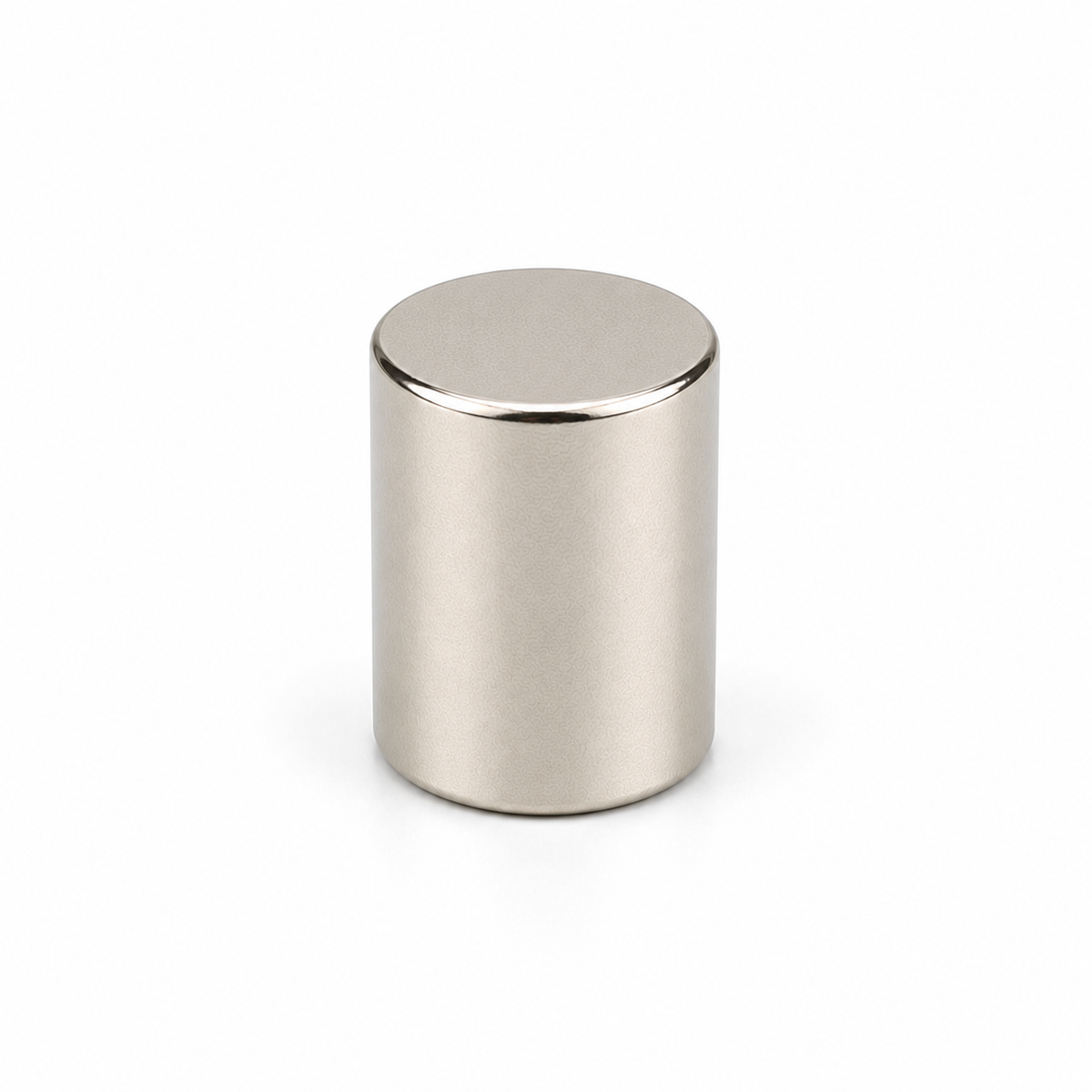

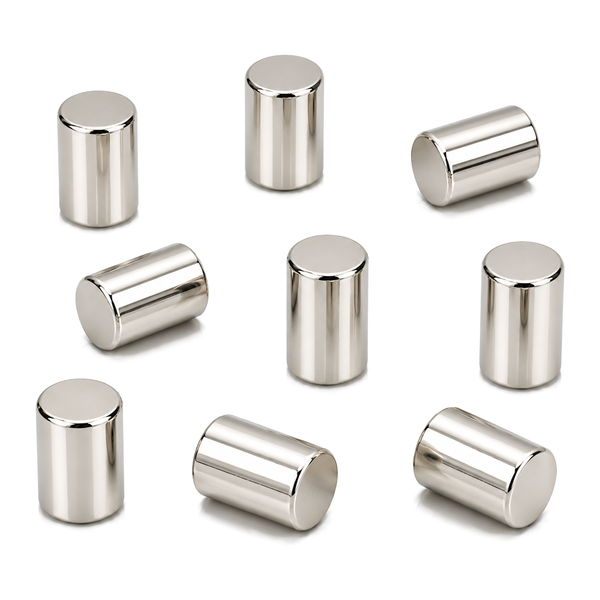

Neodymium Cylinder Magnet - 8mm x 10mm

Product code: 21034

$3.05for 1 to 9 items
$2.65buy 10 to 99 itemsand save 13%
$2.19buy 100+ itemsand save 28%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 8mm x 10mm

Rated 5.0 out of 5
Based on 2 reviews
Product Code 21034
Pull Force* 2.4 kg
Weight 5 gm
Style Rare Earth Cylinder magnet
Gauss 5849
Grade N35
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:10mm, Diameter:8mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 8mm x 10mm

Magnetic Product Description:

This magnet has an 8mm diameter and a height of 10mm. It has a flux reading of approximately 5849 Gauss and a pull force of 2.4 kilograms. It is identified by the AMF Magnet part number 21034.

Uses for our Rare Earth Cylinder Magnets:

This Neodymium Cylinder magnet has been specifically designed for use in Galleries, Museums, exhibition spaces and studios. This product was originally developed as a Magnart proprietary product as part of a reusable magnetic display system for hanging artwork or any other graphic material. The N35 Grade magnet is of weaker magnetic material than the standard and this facilitates easy removal and replacement of the magnet and also helps to reduce the risk of damaging the surface of the artwork. This is a specialised magnet for hanging paper, card or other delicate material and the combination of dimensions and the weaker grade Neodymium are perfectly suited to this purpose.

Neodymium Cylinder Magnet - 8mm x 10mm (21034)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
263-294 N/A
Max Energy Product(BH)max(MGOe)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 263-294 N/A
Max Energy Product(BH)max(MGOe) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 2 reviews
  • 5 Stars
    2 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
2 Reviews
Reviewed by Vinny
I recommend this product
Rated 5 out of 5
Review posted

8x10 neodymium magnet

Excellent service, I needed to replace a broken magnet in an electronic ignition and these were a perfect fit

Loading...
Was this helpful?
Reviewed by Inge
I recommend this product
Rated 5 out of 5
Review posted

Excellent service ad perfect product

I was needing to find a replacement magnet for my dog door and fell upon this website. I found exactly what I needed and it was delivered in days. Excellent service.

Loading...
Was this helpful?
