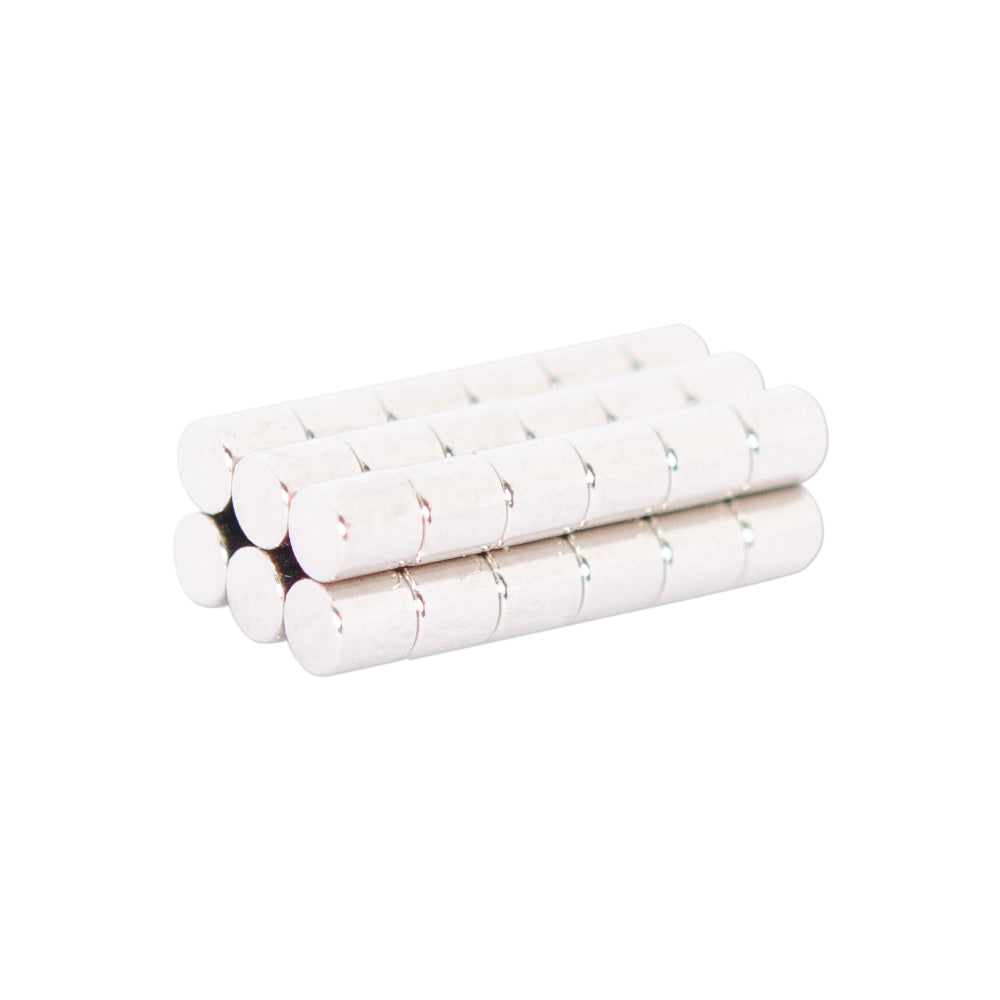

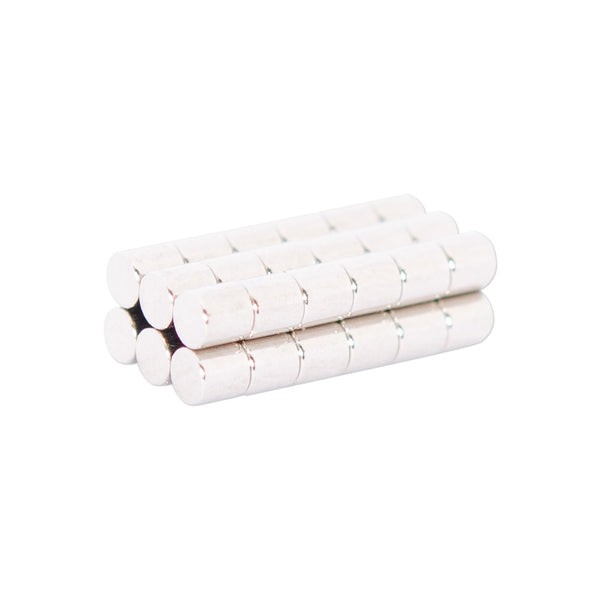

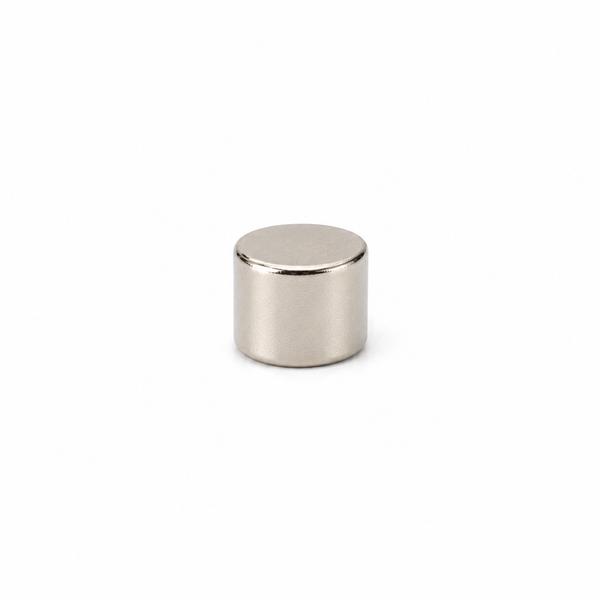

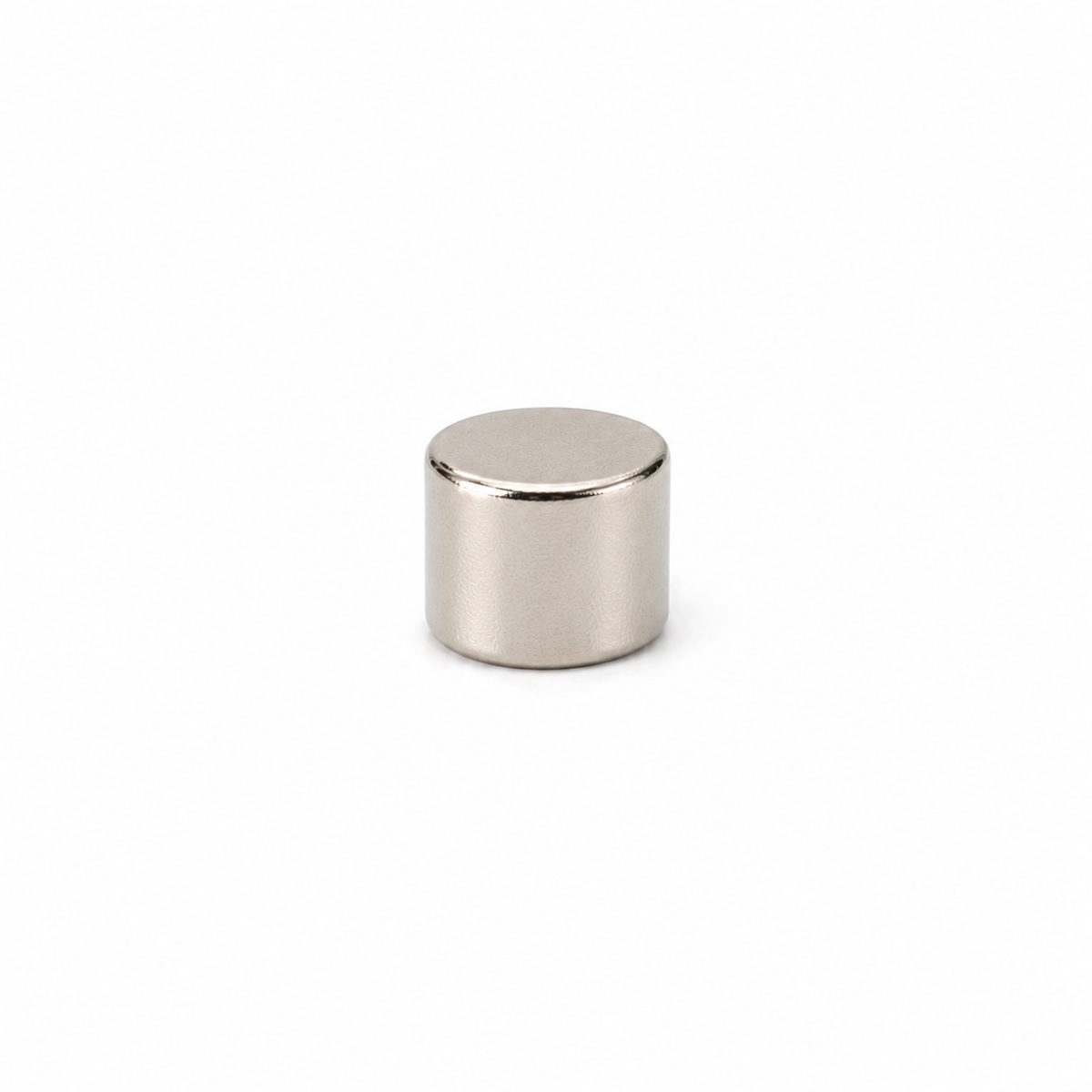

Neodymium Cylinder Magnet - 2mm x 2mm N50

Product code: C-D2H2-N50

$0.46for 1 to 99 items
$0.40buy 100 to 999 itemsand save 13%
$0.35buy 1000+ itemsand save 23%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 2mm x 2mm N50

Product Code C-D2H2-N50
Pull Force* 0.1130 kgs
Weight 1 gm
Style Neodymium Cylinder Magnet
Grade N50
Coating Nickel (Ni)
Direction of Magnetisation Thrugh height
Dimensions Height:2mm, Diameter:2mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 2mm x 2mm N50

Magnetic Product Description:

This rare earth cylinder has a diameter of 2mm and a height of 2mm. It has a magnetic flux reading of 6479 Gauss and a pull force of 113 grams. Its part number is C-D2H2-N50.


Uses for our rare earth cylinder magnets:

This Neodymium rod magnet is petite in size however it is made from super strong Neodymium N50 grade material. Permanent magnets such as these rare earth cylinder magnets are ideal for applications that require maximum precision gained through the powerful and narrow magnetic field. Small magnets such as these are often incorporated into larger magnetic products and magnet tools. This magnet is zinc coated which lends it a dull, powdery appearance and provides reasonable protection against corrosion.

Neodymium Cylinder Magnet - 2mm x 2mm N50 (C-D2H2-N50)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.4-1.46 N/A
Remanence Br(kGs)
14-14.6 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
374-406 N/A
Max Energy Product(BH)max(MGOe)
47-51 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.4-1.46 N/A
Remanence Br(kGs) 14-14.6 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 374-406 N/A
Max Energy Product(BH)max(MGOe) 47-51 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
