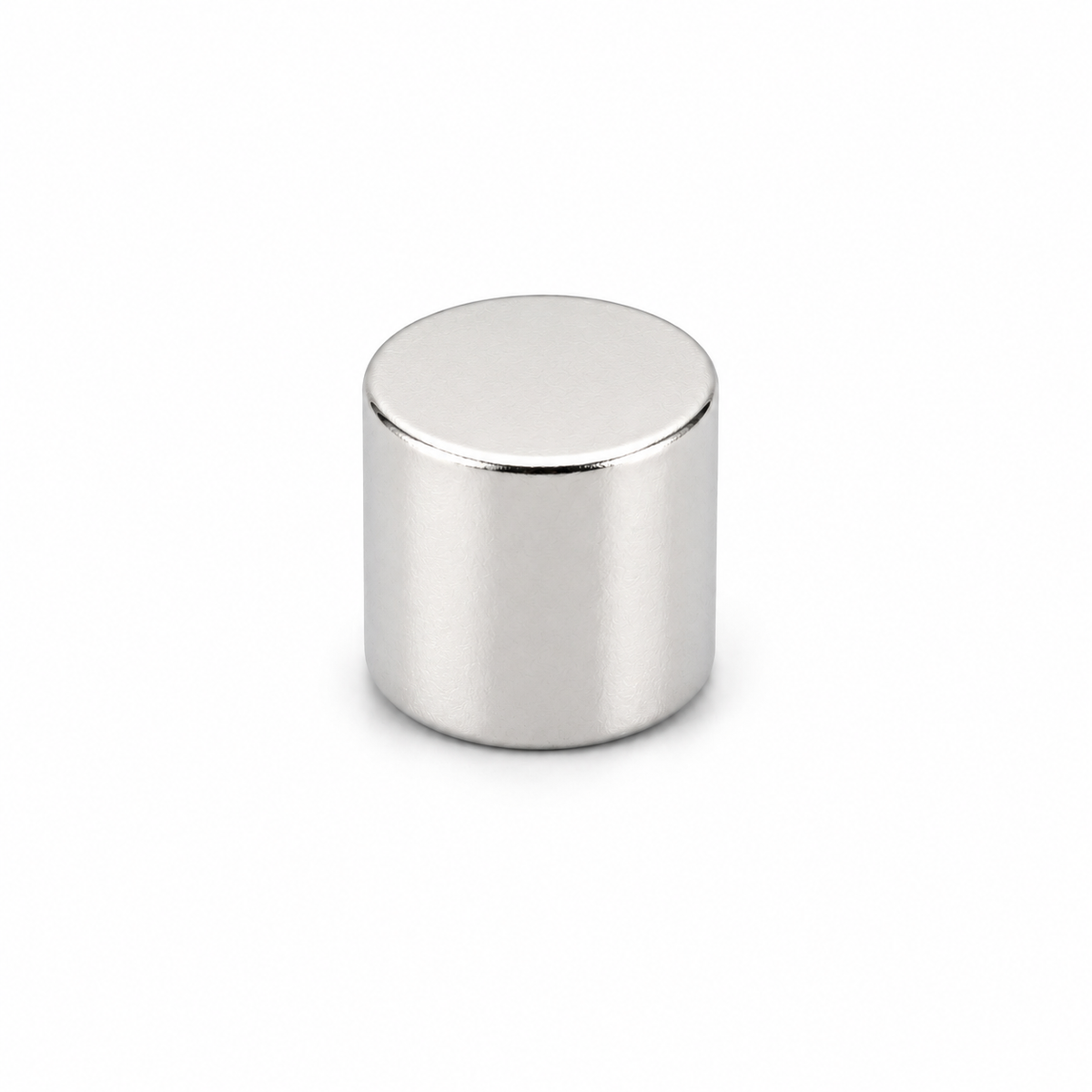

Neodymium Cylinder Magnet - 6mm x 6mm

Product code: 21045

$1.15for 1 to 9 items
$0.91buy 10 to 99 itemsand save 20%
$0.77buy 100+ itemsand save 33%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 6mm x 6mm

Rated 5.0 out of 5
Based on 3 reviews
Product Code 21045
Pull Force* 1.2 kg
Weight 1 gm
Style Rare Earth Cylinder magnet
Gauss 5635
Grade N38
Coating Nickel ( NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:6mm, Diameter:6mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 6mm x 6mm

Magnetic Product Description:

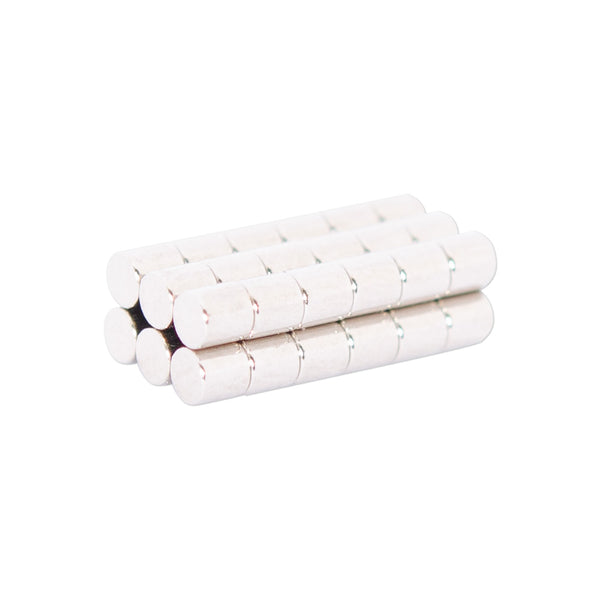

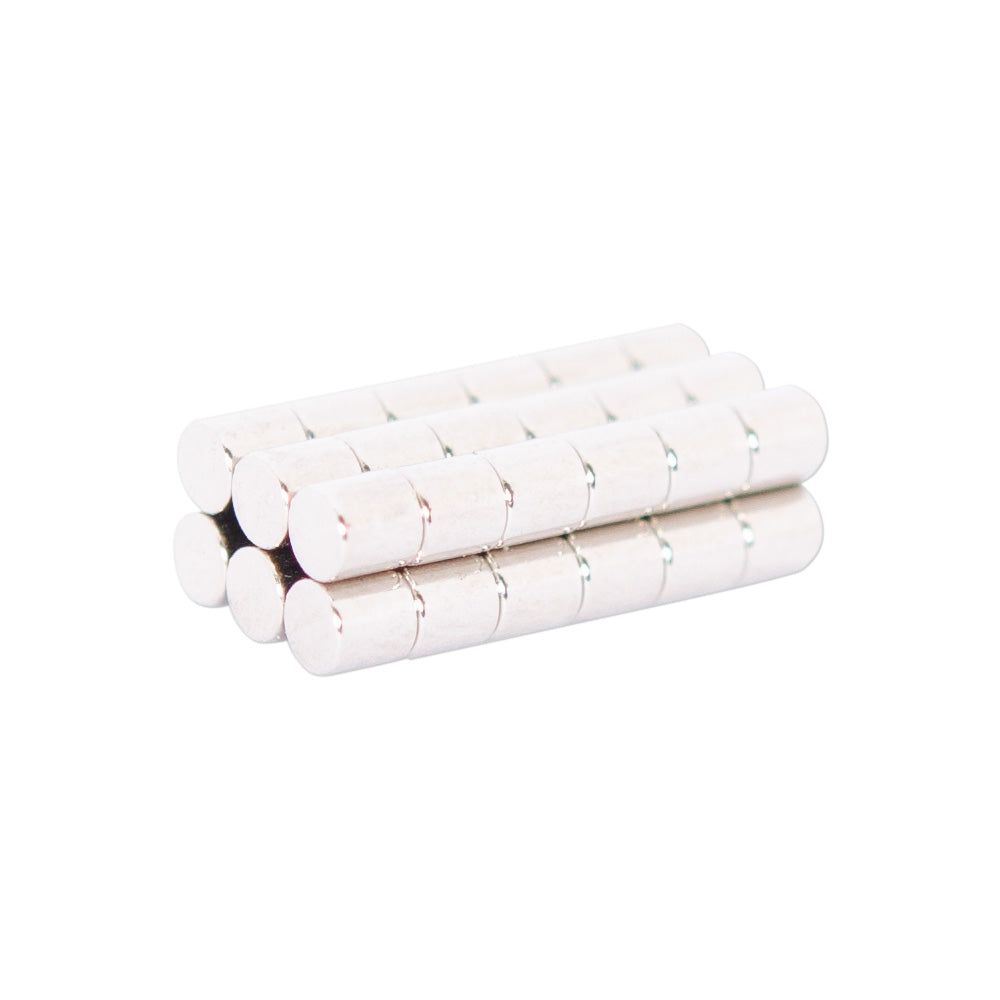

This Rare Earth Cylinder Magnet has a diameter of 6mm and a height of 6mm. Made from strong neodymium magnetic material, it has a pull force of 1.2 kilos against 3 mm mild steel. It has a flux reading of 5635 Gauss. Identified by the AMF magnet part number 21045. AMF Magnets stock a range of magnets including Rare Earth Neodymium Cylinders in a variety of sizes, dimensions and pull strengths. For other Rare Earth magnetic products see our Rare Earth range


Uses for our rare earth cylinder magnets:

These small rod magnets are popular in many industries due to their size to strength ratio. They are particularly useful in the signage and display industry, as well as for craft makers.

Hobbyists, schools and specialist cabinet manufacturers often use these magnets to create all sorts of crafts. Watchmakers and jewellers use this Neodymium Cylinder 6mm x 6mm as they need something petite yet efficient for their art. Holding signs and products securely in place is important in allowing for impulse purchases. These magnets also allow for easy repositioning of items as stock and trading conditions.

Neodymium Cylinder Magnet - 6mm x 6mm (21045)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
