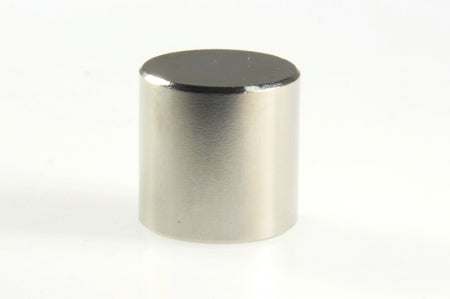

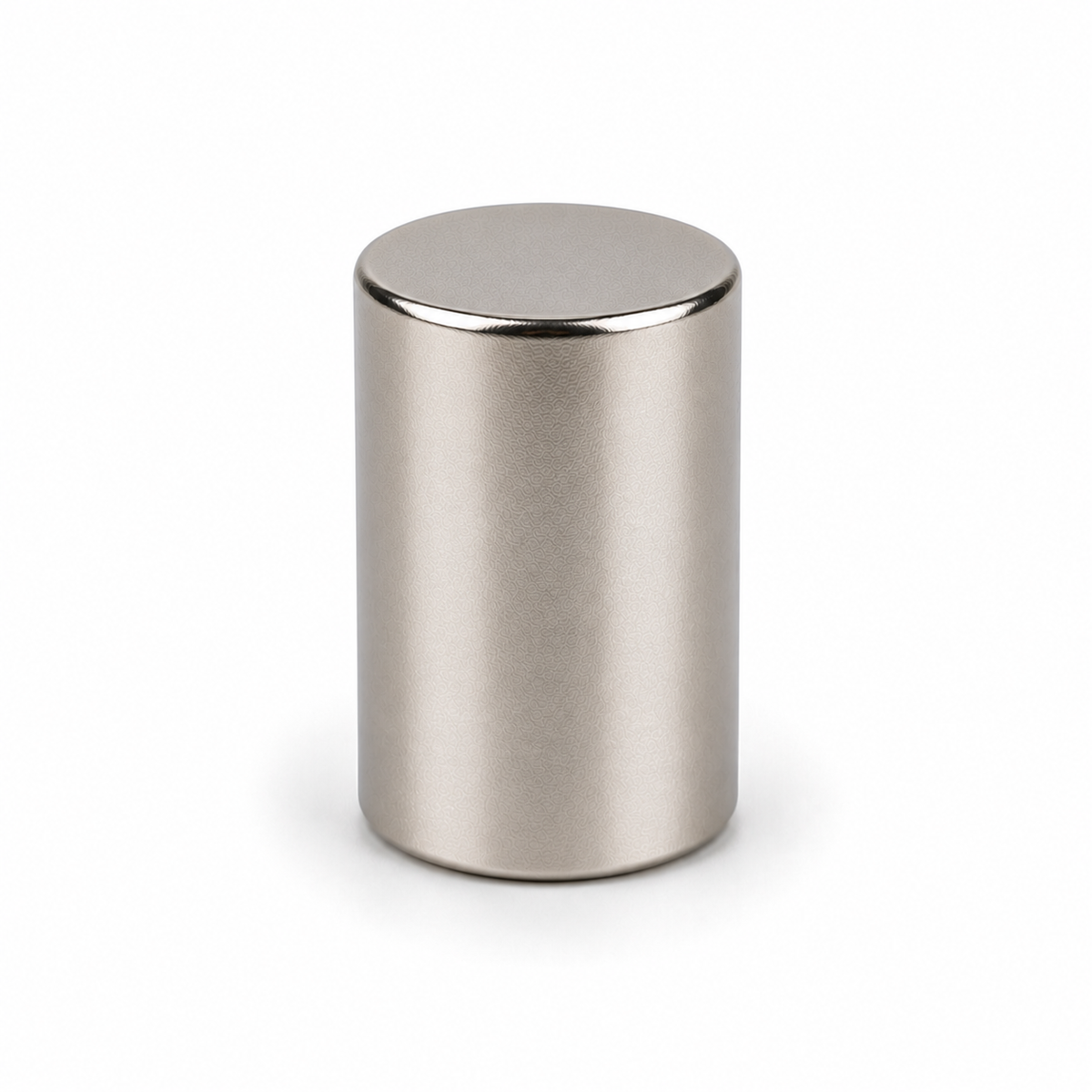

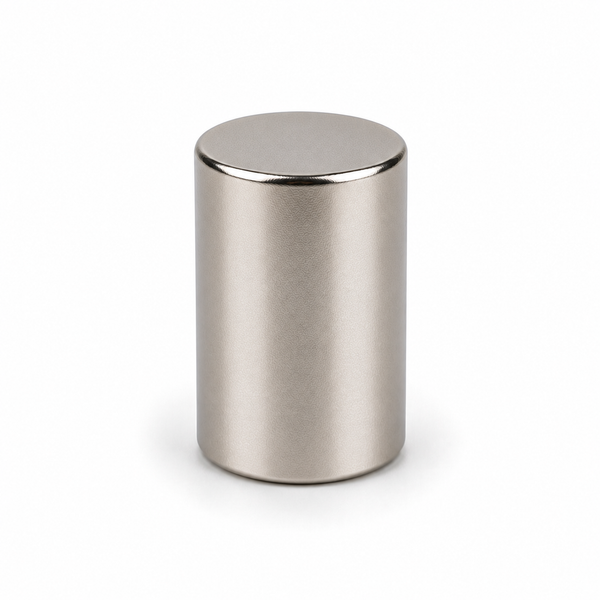

Neodymium Cylinder Magnet - 15mm x 25mm

Product code: 21015

$18.07for 1 to 9 items
$15.73buy 10 to 99 itemsand save 12%
$11.89buy 100+ itemsand save 34%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 15mm x 25mm

Rated 4.5 out of 5
Based on 2 reviews
Product Code 21015
Pull Force* 10.8 kg
Weight 71 gm
Style Neodymium Cylinder Magnet
Grade N42
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:25mm, Diameter:15mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 15mm x 25mm

Magnetic Product Description:

This strong rare earth cylinder has a diameter of 15mm and a height of 25mm. It is an N42 grade rare earth magnet. It is identified by the AMF magnet part number 21015.


Uses for our rare earth cylinder magnets:

Commonly used in mining and quarry industries, engineering firms, marine geotechnical surveyors and the construction sector.

Neodymium Cylinder Magnet - 15mm x 25mm (21015)

Grade
N42 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.3-1.35 N/A
Remanence Br(kGs)
13-13.5 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
318-350 N/A
Max Energy Product(BH)max(MGOe)
40-44 N/A
Grade N42 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.3-1.35 N/A
Remanence Br(kGs) 13-13.5 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 318-350 N/A
Max Energy Product(BH)max(MGOe) 40-44 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
