A5 Self-Adhesive NeoFlex® Magnetic Sheet 1mm | Grade RE5

Product code: 59189

$65.95for 1 to 9 items
$55.95buy 10 to 99 itemsand save 15%
$49.95buy 100+ itemsand save 24%

Prices are GST Incl.

Volume pricing available on request

A5 Self-Adhesive NeoFlex® Magnetic Sheet 1mm | Grade RE5

Rated 5.0 out of 5
1 Review
Product Code 59189
Pull Force* 400g/cm2
Weight 100 gm
Dimensions Thickness:1mm, Width:147mm, Length:210mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

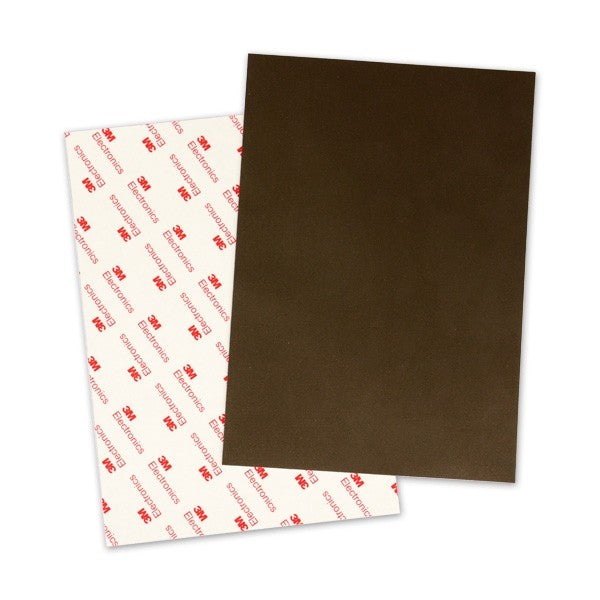

This A5 Self-Adhesive Neoflex® Magnetic Sheet has a thickness of 1mm, a length of 210mm and a width of 147mm. Adhesive side has 3M adhesive and is non-magnetic. This product has a pull force of 400grams per centimetre squared. Identified by the AMF Magnets part number 59188.

Uses for our A5 NeoFlex Self-Adhesive Magnetic Sheets:

With the combination of super strong neodymium, premium rubber and high quality 3M adhesive, NeoFlex® sheets provide the strongest flexible magnetic sheet commercially available. NeoFlex® sheets combine the magnetic strength of neodymium and the flexibility of rubber with a self-adhesive 3M peel-away backing. Perfect for adhering anything to a delicate steel surface, mounting objects, or creating closures. NeoFlex® sheets have a firm acrylic pressure-sensitive adhesive which increases in bond strength overtime. While its initial bond strength is enough to keep the grip secure, to ensure the adhesive can withstand the pull strength we recommend allowing 24 to 32 hours for the adhesive to fully cure.

A5 Self-Adhesive NeoFlex® Magnetic Sheet 1mm | Grade RE5 (59189)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A
average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Hardwarebill
I recommend this product
Rated 5 out of 5
Review posted

Used for anchoring electronic remote controllers for conveyor belts previously constant misplacing

Customer very happy with innovative solution for the time wasting effort of staff locating conveyor contollers
