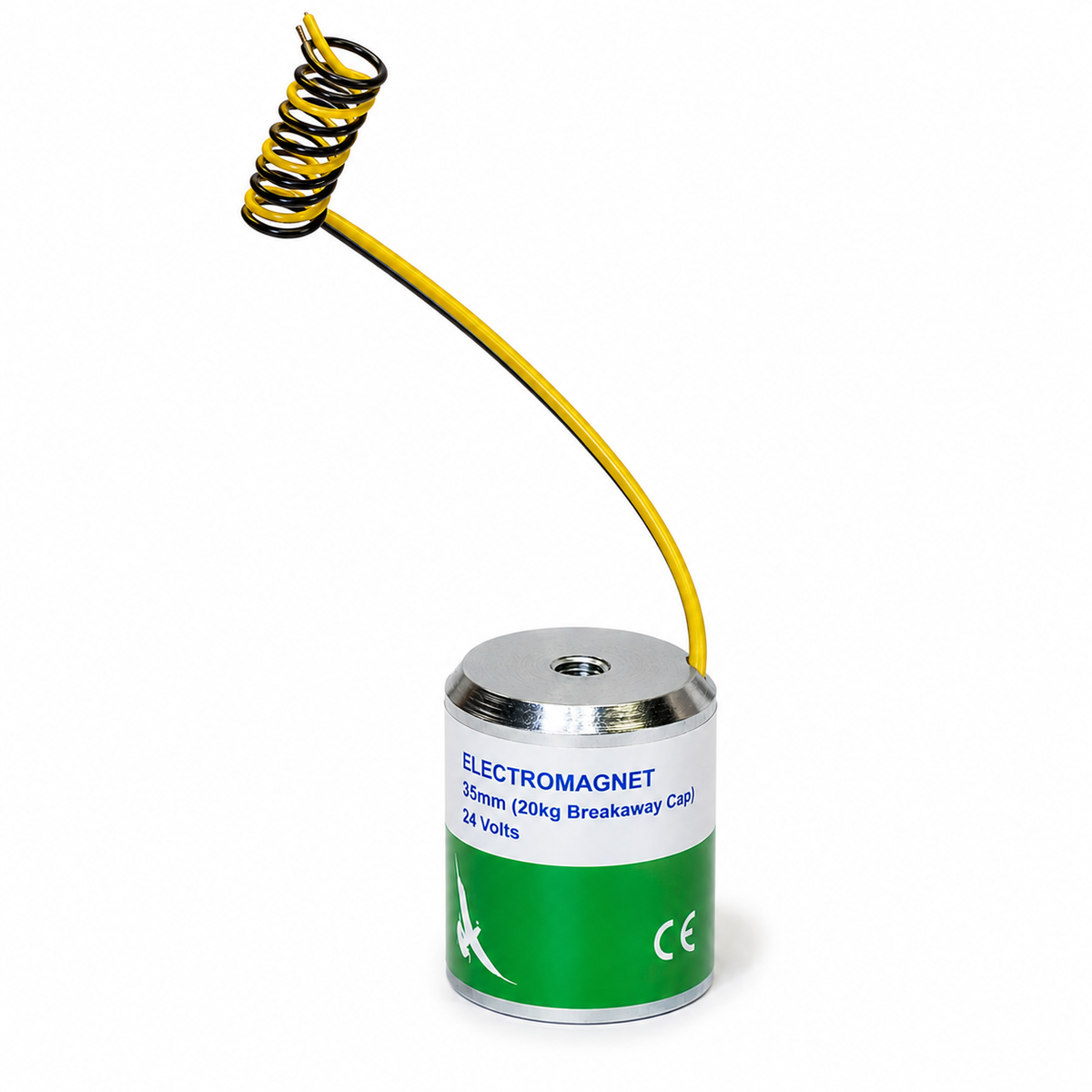

Electromagnet - 35mm (20kg breakaway cap) 24 Volts

Product code: 89051

$158.13for 1 to 9 items
$140.42buy 10 to 99 itemsand save 11%
$126.50buy 100+ itemsand save 20%

Prices are GST Incl.

Volume pricing available on request

Electromagnet - 35mm (20kg breakaway cap) 24 Volts

Product Code 89051
Weight 200 gm
Style Mighty Micro Electromagnet 24 volt model

Magnetic Product Description:

Our 35mm electromagnet with a 20kg breakaway cap uses DC power and is built by wrapping many coils of wire around a ferromagnetic core. When electricity flows through a conductor an electromagnet is created with the magnetic field around the conductor.

Uses for our Electromagnet:

This 24 Volt Electromagnet can be operated continuously at their rated voltage or intermittently at up to double the rated voltage depending on Duty Cycle (time on/ time off) Continuous operation at approx. 150 mA. Intermittent operation up to 48v.DC for max 10 minutes on at 50% duty cycle, 300 mA.

Electromagnets convert electrical power (direct current) into mechanical power (force and movement) via a magnetic force field that is capable of propelling and regulating mechanical components. In industries like metal detection and metal sorting, water filtration and many electrical devices the controlled activation and termination of this electrically produced magnetic force field enables greater control over objects subject to magnetic force.

In water treatment and filtration this characteristic enables controlled release of impurities captured and secured by magnetic force. Heavy metals, mineral salts and rust can be discarded by an operator at the time of their choosing for proper disposal of captured waste. This method of treating large volumes of water can turn hard water of very limited use, into soft water suitable for any use.

Magnetic locks engaging electromagnetic agency cannot be unpicked or cracked in the conventional way because the electrical current needed to move constituent parts of the locking assembly has been denied to the device outside bank opening hours.

Electromagnet - 35mm (20kg breakaway cap) 24 Volts (89051)
