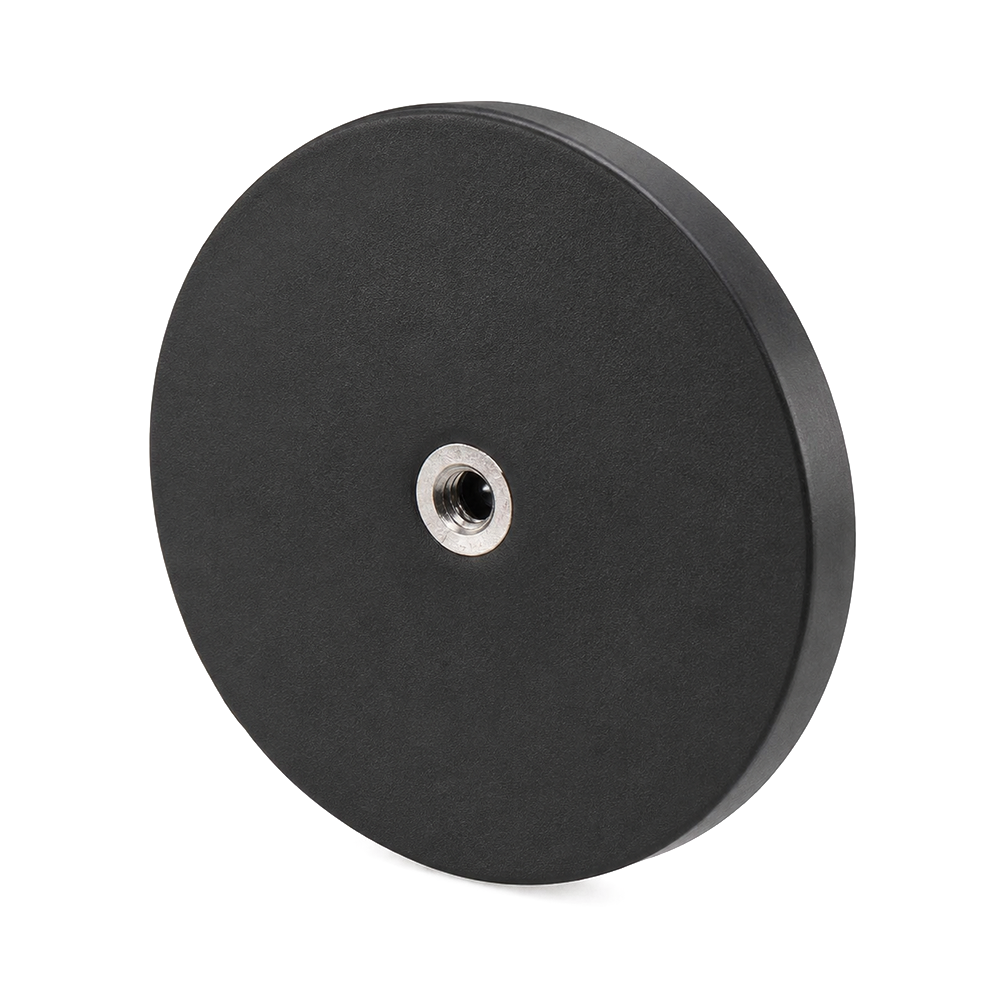

Female Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with Rubber Case

Product code: RCND66F

$19.16for 1 to 9 items
$16.51buy 10+ itemsand save 13%

Prices are GST Incl.

Volume pricing available on request

Female Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with Rubber Case

Rated 5.0 out of 5
Based on 1 review
Product Code RCND66F
Pull Force* 18kg
Weight 110 gm
Style Rare Earth female thread pot magnet
Grade N35
Coating Santoprene Rubber
Direction of Magnetisation Axially magnetised through the 8mm
Dimensions Height:8mm, Diameter:66mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 66mm, a thickness of 8mm, a M6 female thread, and a Santoprene rubber coating that protects delicate surface areas. This female threaded magnet has a pull force of 18kg and a weight of 110 grams. It is identified by the AMF magnet part number RCND66F. Threaded hooks and eyelets are sold separately for this product, if required. Get in touch with us for pricing.


Uses for our Rare Earth female thread pot magnets:

Rubber coated magnets have a superior slide resistance over regular magnets due to the increased friction generated by the rubber and steel surface. Further, rubber coating resists corrosion and protects easily scratched surfaces.

These devices are often used, in conjunction with an eyelet or hook screwed into its threaded central void, for suspending outdoor equipment, heavy duty gate and door latching, hanging signage and stringing up guide lines or barriers.

Water resistant for use in marine, aquatic and outdoor or agricultural environments, these small, strong holding pot female threaded magnets are used to create a secure, no drama fixing point. Magnetic engagement deletes the need to penetrate valuable surfaces and the rubber coating protects the same.

Farmers, campers, long haul truck drivers, emergency workers are able, at a moment’s notice, to create a fixing point on the outside of their vehicles for stringing up hazard tape, secure signage or lighting devices.

Deployed on construction sites, in cabinetmaking and electrical systems these fixing points are also housed in mechanical and agricultural situations where metal strike presents as a hazard. Shipping containers, mobile homes and office and accommodation, ablution dwellings associated with mining and constructions sites often contain magnetically abled walls, doors and ceilings. These magnetic forms create secure fixing points for the duration with a simple release for repositioning or deleting with no penalty incurred to the surfaces attached in this way.

Female Thread Neodymium Pot Magnet - Diameter 66mm x 8mm with Rubber Case (RCND66F)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
263-294 N/A
Max Energy Product(BH)max(MGOe)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 263-294 N/A
Max Energy Product(BH)max(MGOe) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
