Female Thread Neodymium Pot Magnet - Diameter 32mm x 16.8mm (Slim Profile)
Product code: AMFYPD32SLIM
Earn 11 points for this product with AMF Magnetics Perks
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

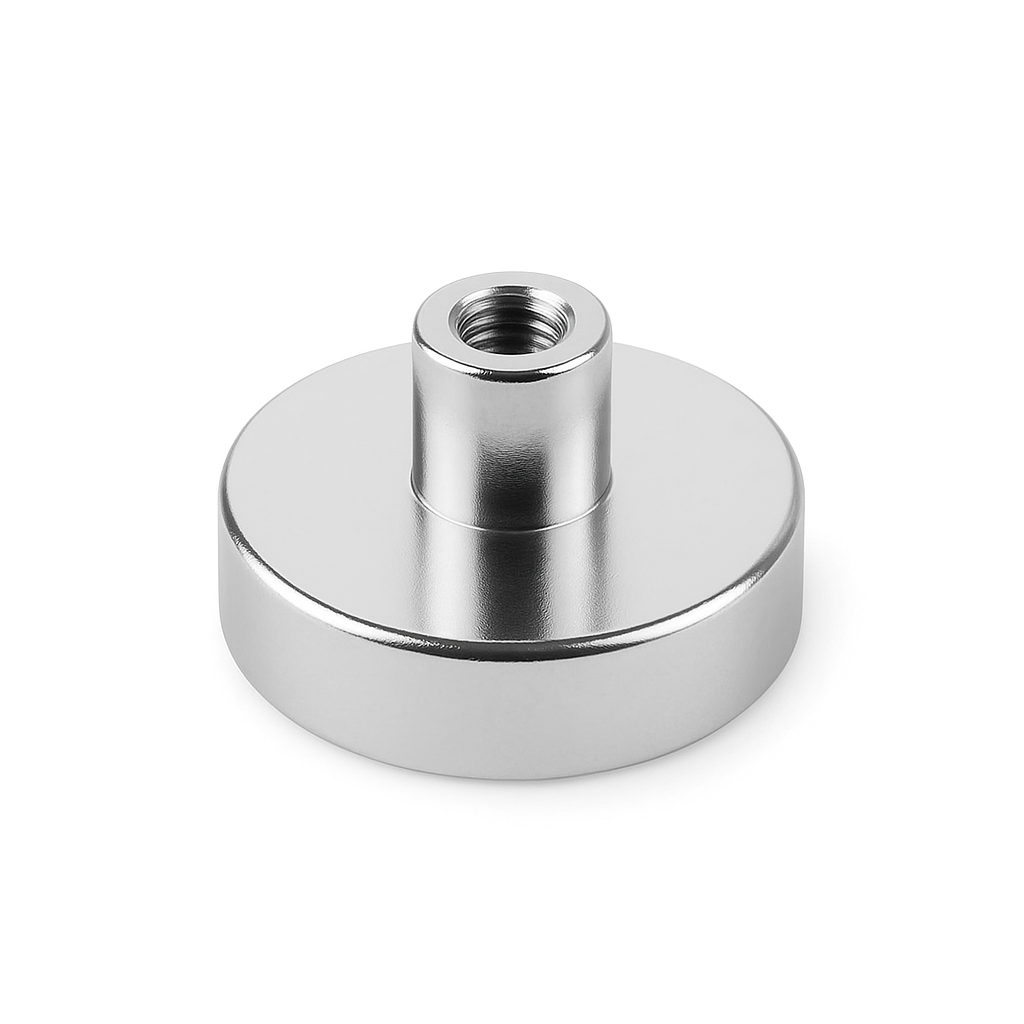

This Female Thread Neodymium Pot Magnet (32mm diameter x 16.8mm height) is a strong and reliable fastening solution, designed with a female threaded bushing that allows secure attachment to bolts, hooks, and other threaded fittings. Engineered for versatility, it is widely used in industrial, commercial, and workshop applications where powerful magnetic holding is essential. This product is identified by product code AMFYPD32SLIM.
With an impressive pull force of 25 kilograms, this magnet provides excellent strength while remaining compact and easy to install. The steel pot housing enhances the magnet’s performance by directing the magnetic force to the working surface, while also protecting the neodymium core from damage such as cracking or chipping.
Ideal for metal fabrication, signage, lighting rigs, fixtures, tool mounting, and retail display systems, this magnet offers both strength and durability in a professional-grade design.
Key Features:
-
Dimensions: 32mm diameter x 16.8mm height
-
Female threaded bushing for easy and secure attachments
-
Pull Force: 25kg – excellent holding strength for medium-duty tasks
-
High-performance Neodymium Rare Earth Magnet (Grade N38)
-
Protective steel pot casing to boost strength and durability
-
Perfect for industrial, commercial, and DIY applications
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
