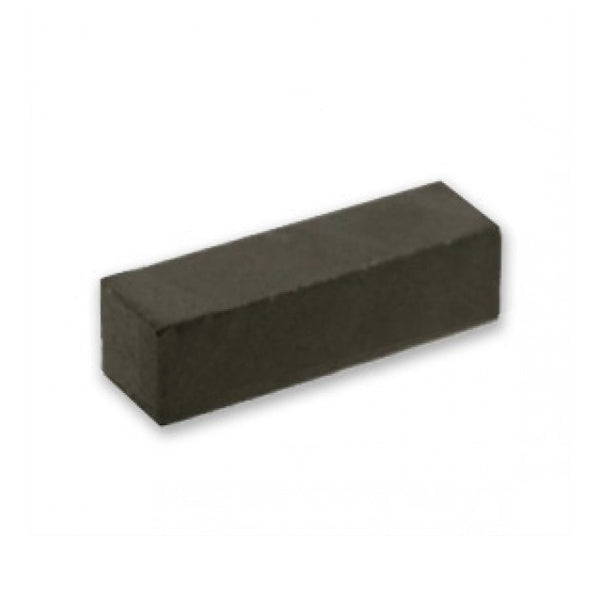

Ferrite Block Magnet - 18mm x 5mm x 5mm

Product code: 12135

$0.44for 1 to 999 items
$0.34buy 1000 to 9999 itemsand save 22%
$0.25buy 10000+ itemsand save 43%

Prices are GST Incl.

Volume pricing available on request

Ferrite Block Magnet - 18mm x 5mm x 5mm

Product Code 12135
Pull Force* 0.3 kg
Weight 2 gm
Style Ferrite block magnet
Gauss 1976
Grade Y30BH
Direction of Magnetisation Magnetised through the 5mm height/thickness
Dimensions Width:5mm, Height:5mm, Length:18mm
*Measured against up to 10mm mild steel.
Ferrite Block Magnet - 18mm x 5mm x 5mm

Magnetic Product Description:

This ferrite block magnet has an 18mm length, a 5mm width and a height of 5mm. This ferrite magnet has  a magnetic flux reading of 1976 Gauss and a pull force of 150 grams. It is identified by the AMF magnet part number 12135.


Uses for our ferrite block magnets:

Our large ferrite block magnets are often used in sweeping and separation applications. Smaller ferrite block magnets are commonly used in DC motors, as sensors and in various hand crafts.

Ferrite Block Magnet - 18mm x 5mm x 5mm (12135)

Ferrite Block Magnet - 18mm x 5mm x 5mm

Magnetic Product Description:

This ferrite block magnet has an 18mm length, a 5mm width and a height of 5mm. This ferrite magnet has  a magnetic flux reading of 1976 Gauss and a pull force of 150 grams. It is identified by the AMF magnet part number 12135.


Uses for our ferrite block magnets:

Our large ferrite block magnets are often used in sweeping and separation applications. Smaller ferrite block magnets are commonly used in DC motors, as sensors and in various hand crafts.

Ferrite Block Magnet - 18mm x 5mm x 5mm (12135)
