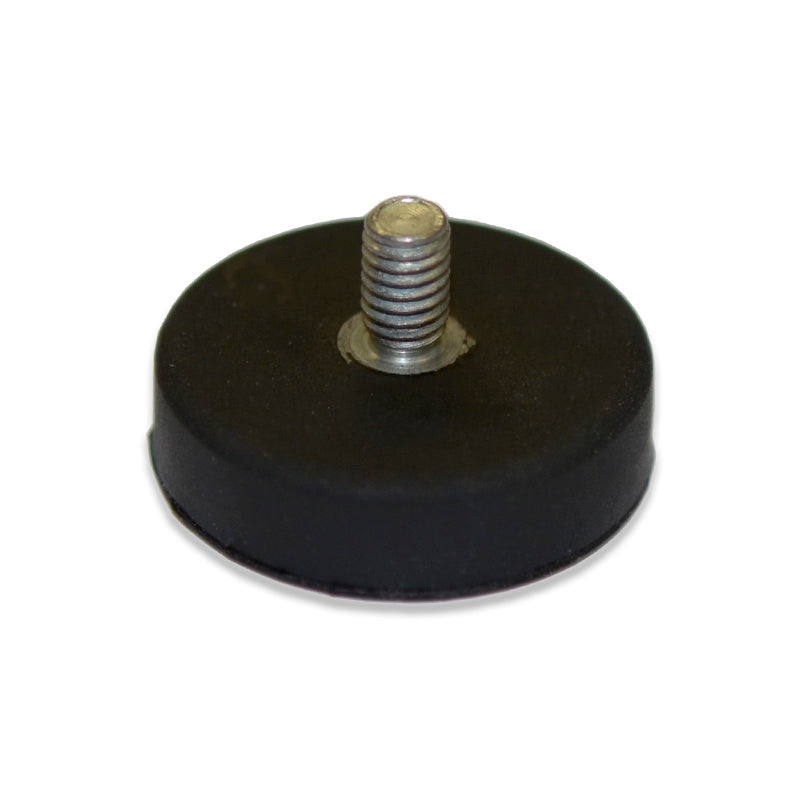

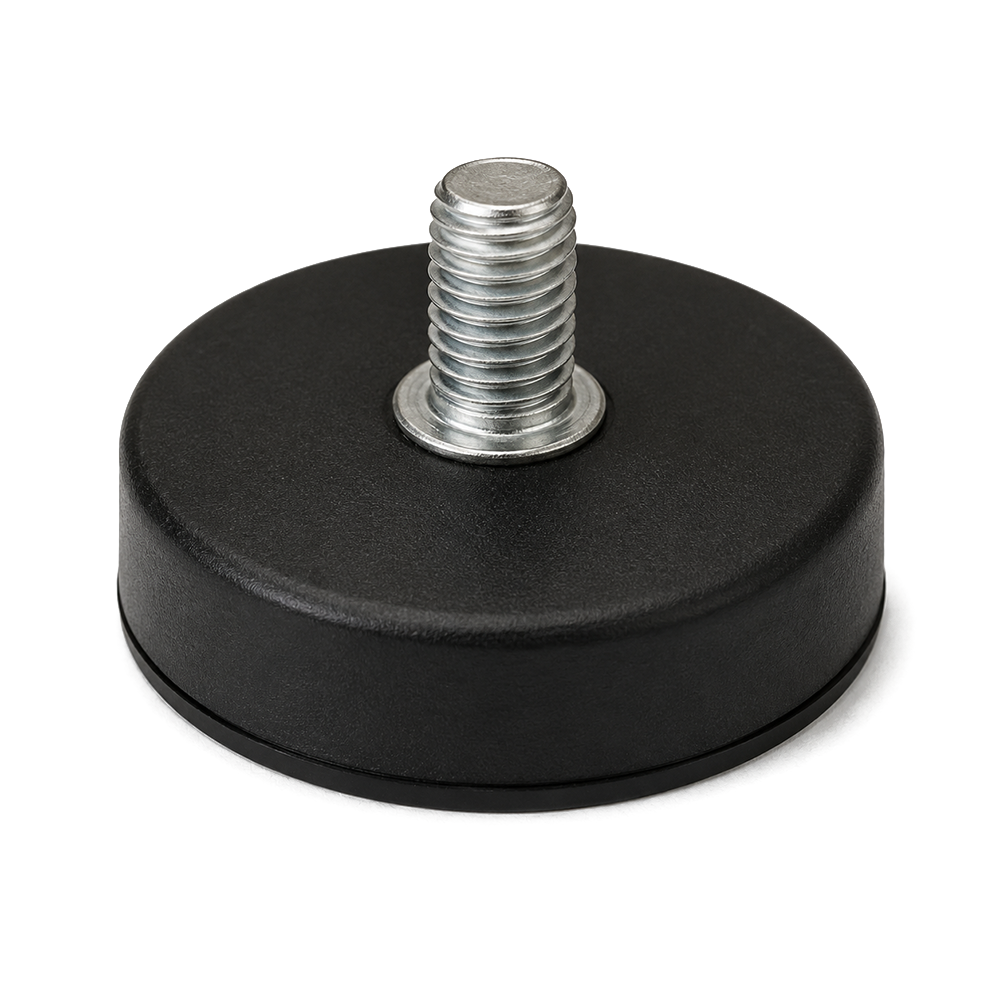

Male Thread Neodymium Pot Magnet - Diameter 22mm x 6mm with 6mm Boss and Rubber Case

Product code: RCND22M

$7.40for 1 to 9 items
$6.38buy 10+ itemsand save 13%

Prices are GST Incl.

Volume pricing available on request

Male Thread Neodymium Pot Magnet - Diameter 22mm x 6mm with 6mm Boss and Rubber Case

Rated 5.0 out of 5
1 Review
Product Code RCND22M
Pull Force* 5kg
Weight 10 gm
Grade N35
Coating Santoprene Rubber
Direction of Magnetisation Axially (through 6mm)
Dimensions Thickness:6mm, Diameter:22mm
*Measured against up to 10mm mild steel.

Magnetic Product Description

With Neodymium magnetic core, this product has a strong pull force of 5kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 22mm, a 6mm thickness, 6mm high M4 male threaded and external boss. The product is identified by AMF Part Number RCND22M.


Uses for our Male Thread Neodymium Pots with Rubber Casing:

Our male threaded Rare Earth holding pot magnets are designed to be used with a washer and nut. These high strength rare earth magnets are encapsulated in a steel holding pot covered in a durable rubber casing for extra protection against delicate surface areas.

Male Thread Neodymium Pot Magnet - Diameter 22mm x 6mm with 6mm Boss and Rubber Case (RCND22M)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
263-294 N/A
Max Energy Product(BH)max(MGOe)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 263-294 N/A
Max Energy Product(BH)max(MGOe) 33-37 N/A
average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Dora D.
I recommend this product
Rated 5 out of 5
Review posted

Quality magnets

We make beautiful designer security doors in NZ and haven't found a product that works as well and does the job like these magnets in our country. We particularly like the rubber coating to protect the powder coating and also from damage on clients homes. Our magnets are used to stop the security doors from banging against house or when shut the client does not have to key their deadlock each time. The magnet holds our doors beautifully in place!
