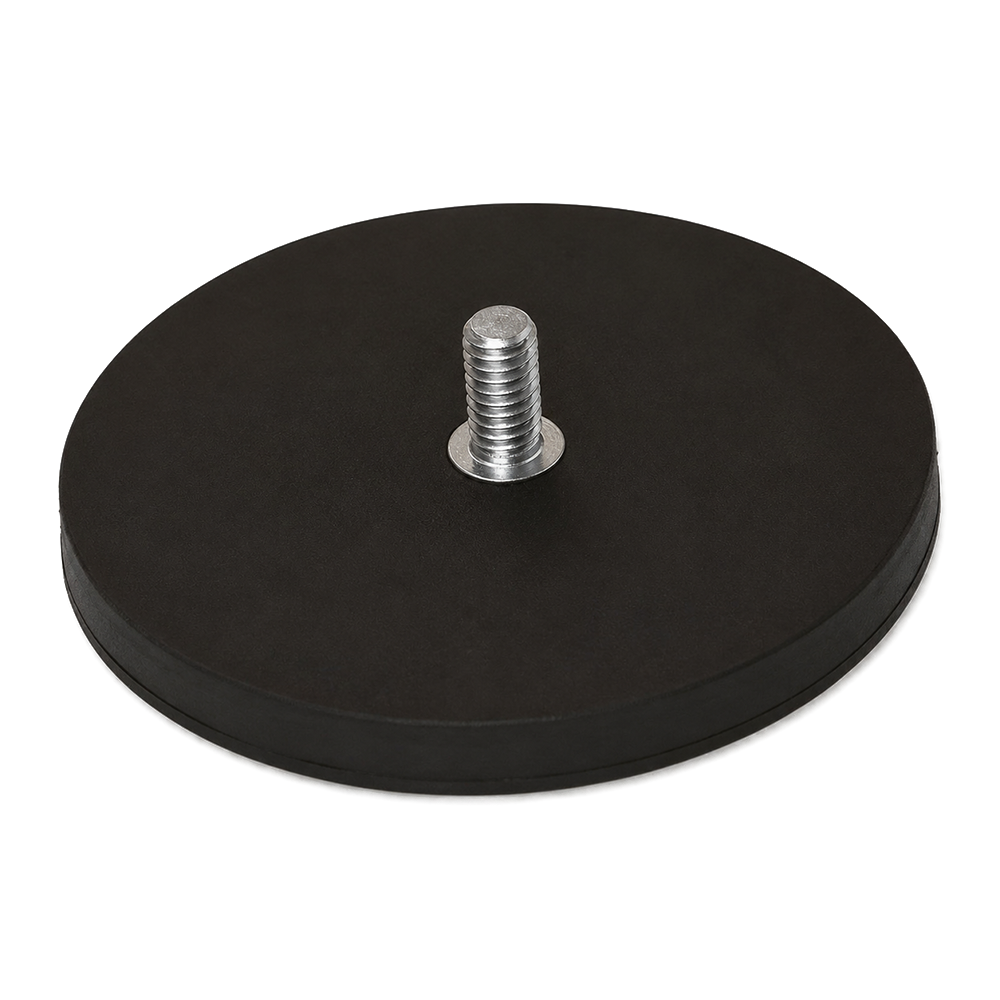

Male Thread Neodymium Pot Magnet - Diameter 88mm x 8mm with 20mm Boss and Rubber Case

Product code: RCND88M

$35.97for 1 to 9 items
$29.84buy 10+ itemsand save 17%

Prices are GST Incl.

Volume pricing available on request

Male Thread Neodymium Pot Magnet - Diameter 88mm x 8mm with 20mm Boss and Rubber Case

Rated 5.0 out of 5
Based on 1 review
Product Code RCND88M
Pull Force* 47 kg
Weight 150 gm
Coating Santoprene Rubber
Direction of Magnetisation Axially magnetised (top to bottom) through 8mm thickness.
Dimensions Thickness:8mm, Diameter:88mm
*Measured against up to 10mm mild steel.

Magnetic Product Description

With Neodymium magnetic core, this product has a strong pull force of 47kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 88mm, a 8mm thickness, 20mm high M8 male threaded and external boss. The product is identified by AMF Part Number RCND88M.


Uses for our Male Thread Neodymium Pots with Rubber Casing:

Rubber coated magnetic anchors are placed onto the frames of metal doors and windows of buildings under construction and allow sheets of ply or similar materials to be secured with a nut to the bolt that protrudes from the steel cap. This temporary method of closure deters thieves and protects the site and valuable materials from the weather. Covering openings on a construction site in this manner also means that glazing works can be deferred to the end of the construction project when the site is safer for these materials that can be easily scratched, stained or broken. Rubber coated magnets are commonly used in conjunction with glass. painted steel or similar materials. The rubber coating protects the glass and while magnets will not cling to glass, these magnets will cling to each other through glass or Perspex-type materials. One pot magnet is needed on each side of the glass panel for each fixing point. Pot magnets are very strong and their positioning needs to be carefully considered. Event managers and Wedding planners like to secure decorations, signage, fabrics and decorative flowers to glass windows and doors for special events and these holding pot magnets enable this to occur in a convenient and secure way that protects delicate surfaces such as glass and are easy to remove when the event is over. Other users find these magnets ideal for attaching to vehicles and machinery without damaging the paint or penetrating surfaces.

AMF male threaded Rare Earth holding pot magnets are designed to be used with a washer and nut. These high strength rare earth magnets are encapsulated in a steel casing and then covered in a durable Santoprene rubber casing to protect delicate surfaces.

Male Thread Neodymium Pot Magnet - Diameter 88mm x 8mm with 20mm Boss and Rubber Case (RCND88M)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Ebz1985
I recommend this product
Rated 5 out of 5
Review posted

Great price

These magnets are awesome. I have bought 6 of these for my flexible solar panel and mounted it to my FJ Cruiser roof. It has now great clearance under the panel and looks very neat.
