Neodymium Block Magnet - 20mm x 20mm x 12mm | Epoxy Coating

Product code: 22016

$26.46for 1 to 9 items
$23.16buy 10+ itemsand save 12%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 20mm x 20mm x 12mm | Epoxy Coating

Product Code 22016
Pull Force* 16.5 kg
Weight 36 gm
Style Neodymium square Block magnet
Gauss 4606
Grade N42H
Coating Nickel (NiCuNi) + EPOXY
Direction of Magnetisation Axially magnetised
Dimensions Width:20mm, Height:12mm, Length:20mm
*Measured against up to 10mm mild steel.
Neodymium Block Magnet  - 20mm x 20mm x 12mm | Epoxy Coating

Magnetic Product Description:

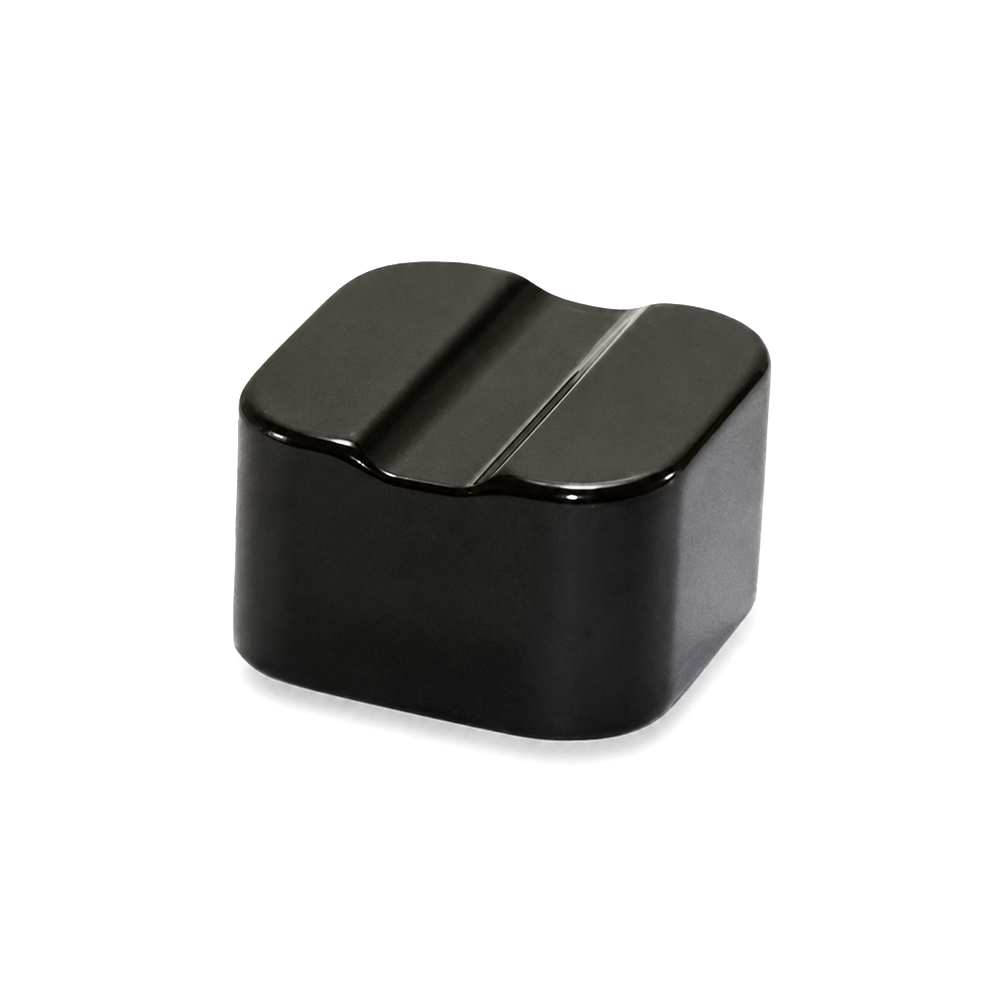

This magnet has a length and width of 20mm and a height of 12mm. It has an 12mm groove which is 1mm deep. It has a magnetic flux of 4606 Gauss and a pull force of 16.5kg. It uses AMF magnet part number 22016.


Uses for our Rare Earth block magnets:

To join anything to anything else is a compromise or a transaction. Fabrications usually separate at the joint. Like all compromises and transactions, costs apply. The very first joining task, attaching sharpened stone fragments to the end of wooden spears, came with significant compromises or transaction costs.

The spears took longer to make and were heavier, you carried fewer of them. Heavier to throw, the hunter would have to get even closer to prey increasing the risk of flight or fight. If the stone tip uncoupled for any reason, a blunt timber rod remained. Useless for the rest of the hunt or against counter attack from injured prey. These transactional costs were paid in the hope stone tipped spears would result in better hunting.

The youngest members of the fastening family, magnets, are outperforming traditional fasteners like bolts, screws, rivets, nails and glues. The reasons are many. However, the main reason magnets will be soon crowned the master fasteners of the new world can be explained by one simple word. Plastics.

Plastics of all kinds, manufactured in all kinds of ways, including 3D printing, are proliferating in all industries, all across the world. The transaction costs or compromises of penetrative or adhesive fixing for plastic fabrications are too high. To fasten with magnetic bond however imposes no penalties. Secured with magnetic tape or placed into socket pockets of plastic fabrications (tools, toys and television news desks) for renewable, instinctive and intuitive release, magnets master the new paradigm.

Regularly used by the education sector and specialist design firms. A good all-purpose magnet with multiple applications.

Neodymium Block Magnet - 20mm x 20mm x 12mm | Epoxy Coating (22016)

Grade
N42H N/A
Max Operating Temperature °C
<=120 N/A
Remanence Br(T)
1.26-1.29 N/A
Remanence Br(kGs)
12.6-12.9 N/A
Coercivity bHc(kA/m)
>=939 N/A
Coercivity bHc(Oe)
>=11.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=1353 N/A
Intrinsic Coercivity iHc(Oe)
>=17 N/A
Max Energy Product(BH)max(KJ/m)
302-326 N/A
Max Energy Product(BH)max(MGOe)
38-41 N/A
Grade N42H N/A
Max Operating Temperature °C <=120 N/A
Remanence Br(T) 1.26-1.29 N/A
Remanence Br(kGs) 12.6-12.9 N/A
Coercivity bHc(kA/m) >=939 N/A
Coercivity bHc(Oe) >=11.8 N/A
Intrinsic Coercivity iHc(kA/m) >=1353 N/A
Intrinsic Coercivity iHc(Oe) >=17 N/A
Max Energy Product(BH)max(KJ/m) 302-326 N/A
Max Energy Product(BH)max(MGOe) 38-41 N/A
