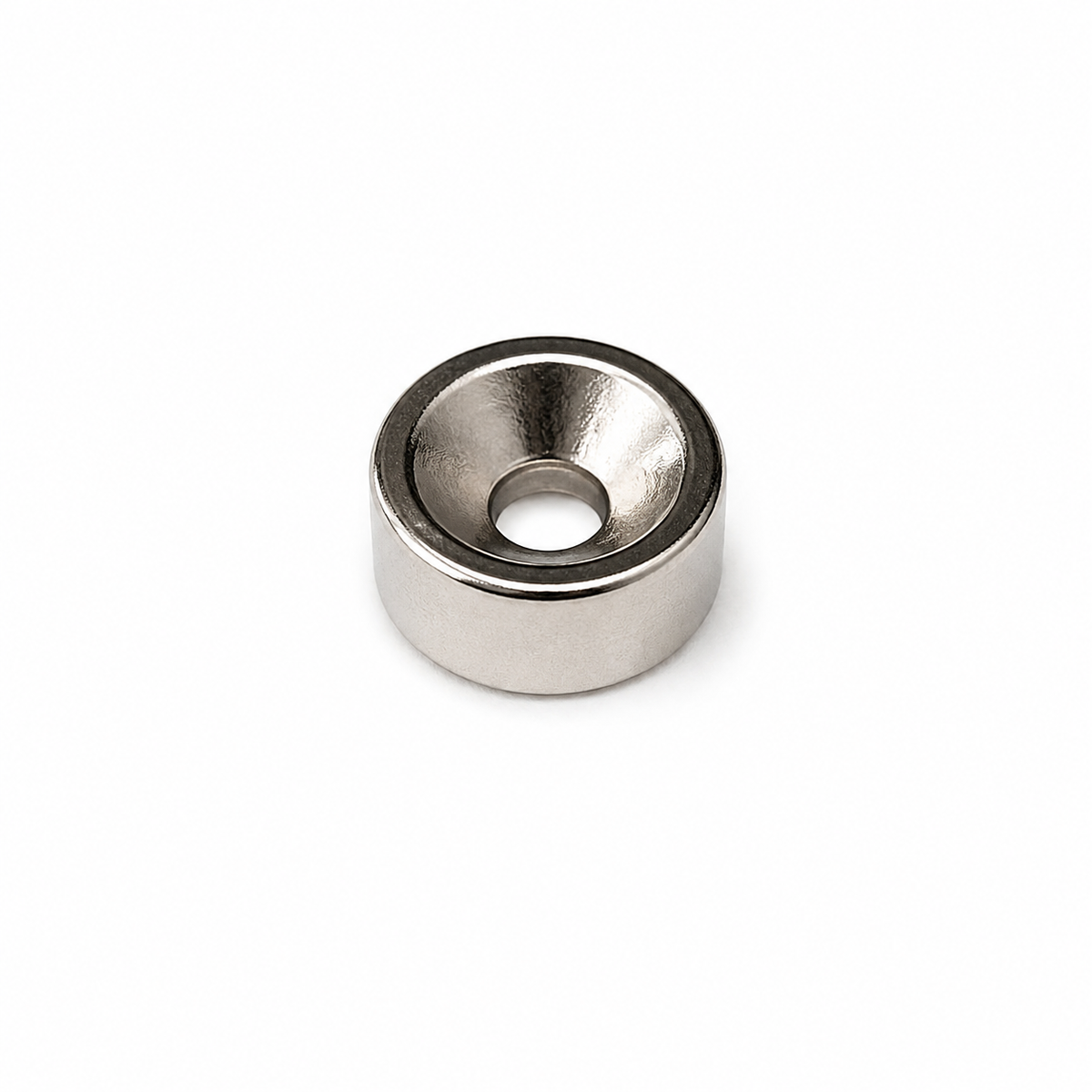

Neodymium Countersunk Ring Magnet - OD6mm x ID2/4mm x 3mm N40 | C/sunk on both sides

Product code: 23027

$3.95for 1 to 9 items
$3.30buy 10 to 99 itemsand save 16%
$2.76buy 100+ itemsand save 30%

Prices are GST Incl.

Volume pricing available on request

Neodymium Countersunk Ring Magnet - OD6mm x ID2/4mm x 3mm N40 | C/sunk on both sides

Product Code 23027
Style Countersunk Rare Earth Ring Magnet
Grade N40
Tolerance +/- 0.05mm
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 3mm

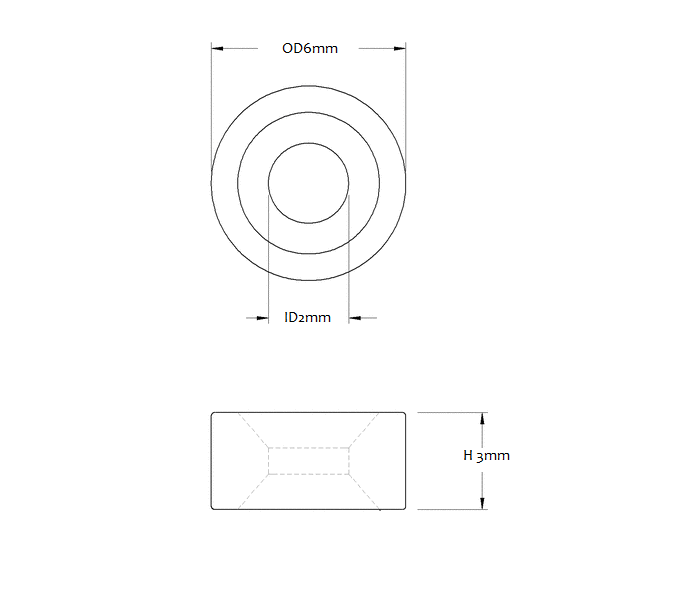

Dimensions Outside Diameter:6mm, Inside Diameter:2mm/4mm, Thickness:3mm
Neodymium Countersunk Ring Magnet - OD6mm x ID2/4mm x 3mm N40 | C/sunk on both sides

Magnetic Product Description:

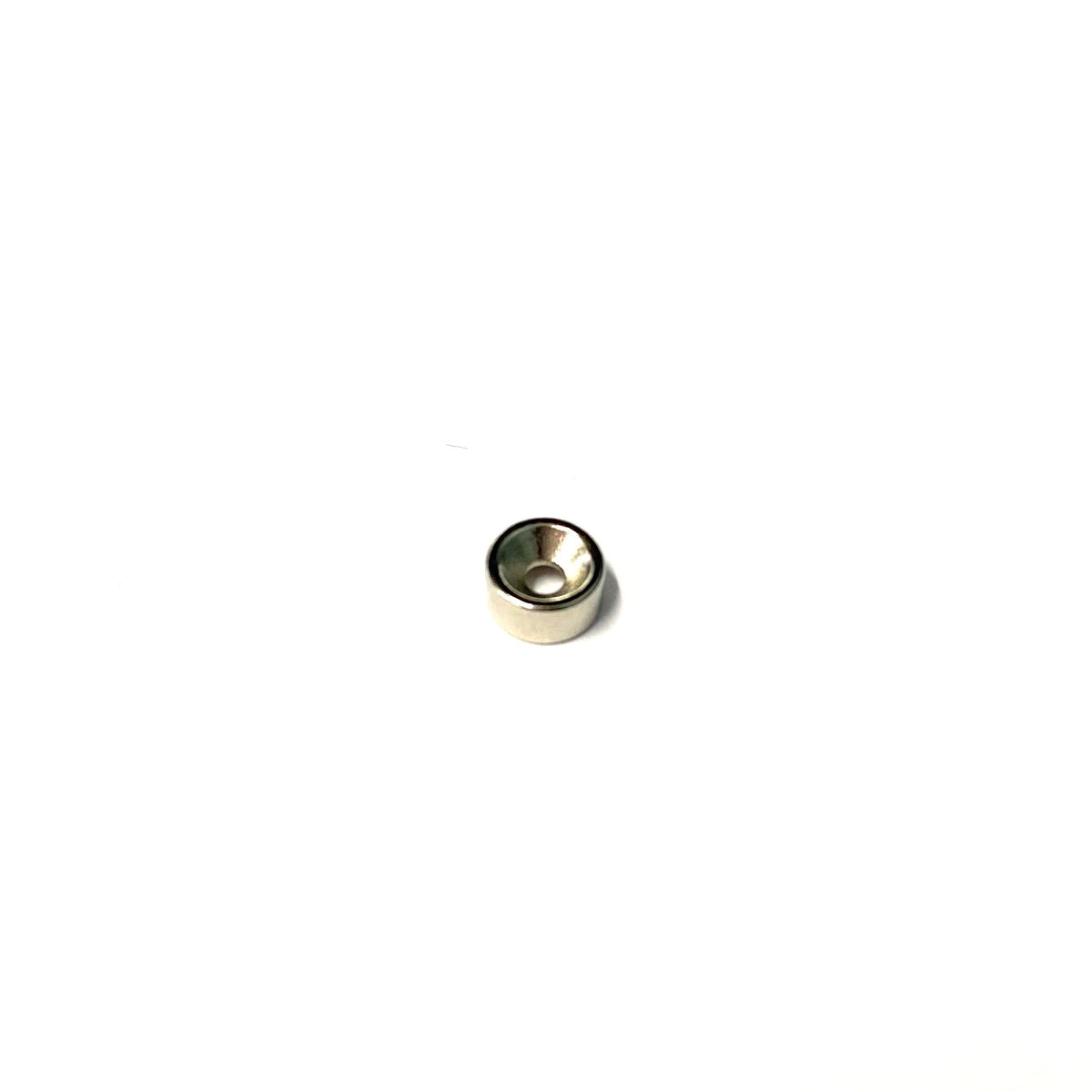

This Rare Earth Countersunk Ring Magnet has an outside diameter of 6mm, an inside diameter of 4mm to 2mm, and a thickness of 3mm. Both sides of the magnet have a countersunk face. It is identified by the AMF magnet part number 23027.


Uses for our Rare Earth Countersunk Ring Magnets:



Neodymium Countersunk Ring Magnet - OD6mm x ID2/4mm x 3mm N40 | C/sunk on both sides (23027)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
