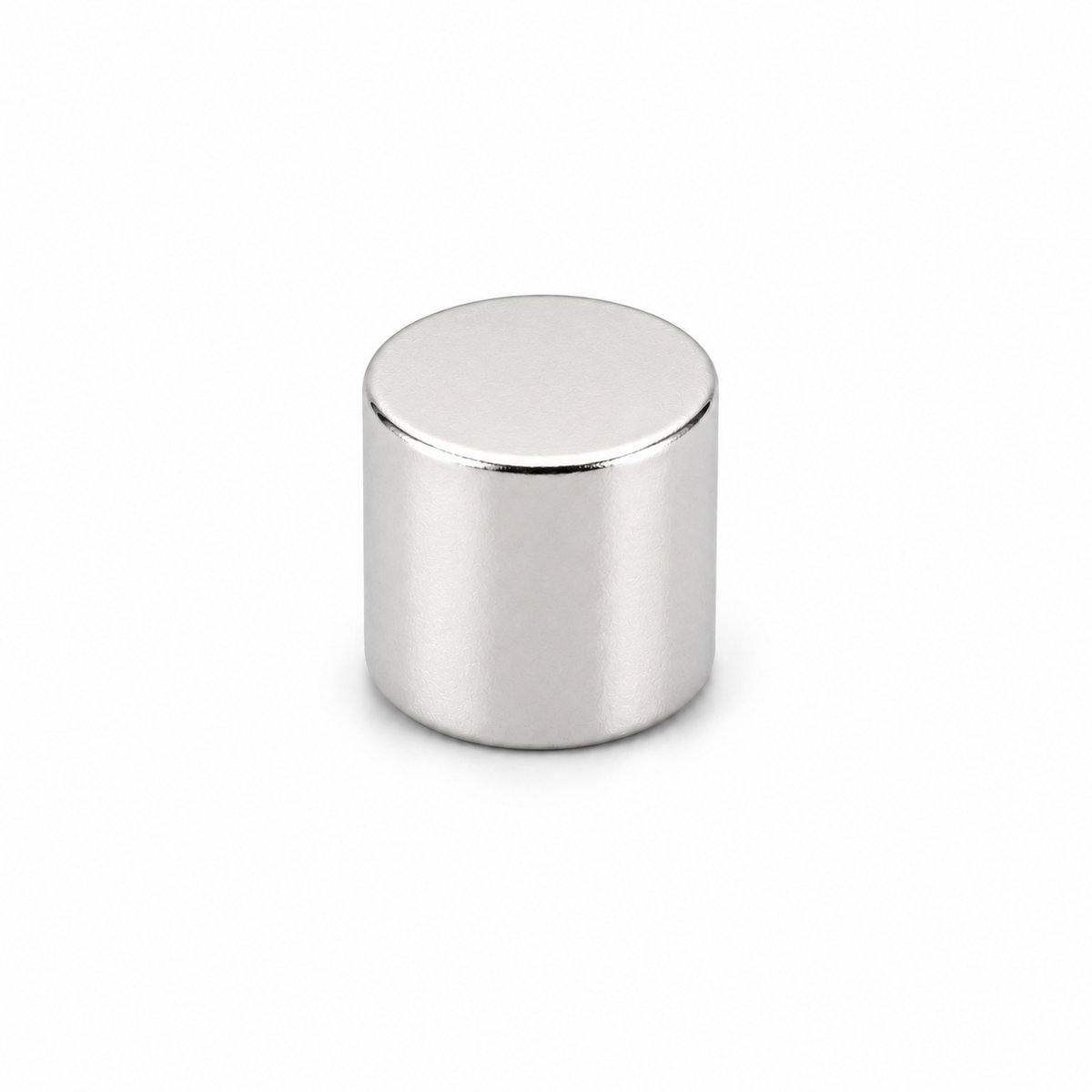

Neodymium Cylinder Magnet - 4mm x 5mm

Product code: 21055

$0.71for 1 to 9 items
$0.55buy 10 to 99 itemsand save 22%
$0.46buy 100+ itemsand save 35%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 4mm x 5mm

Rated 5.0 out of 5
4 Reviews
Product Code 21055
Pull Force* .540 kg
Weight 1 gm
Style Neodymium Cylinder magnet
Gauss 5849
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:5mm, Diameter:4mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 4mm x 5mm

Magnetic Product Description:

This rare earth cylinder has a diameter of 4mm and a height of 5mm. It has a magnetic flux reading of 5849 Gauss and a pull force of 0.540kg. Its part number is 21055.


Uses for our rare earth cylinder magnets:

This delicate Neodymium Cylinder magnet is every cabinet maker’s dream. It is the perfect size and strength for embedding high-end wooden furniture as an elegant latch solution for doors, drawers and cabinets. Cylinder shaped magnets are perfectly suited for recessing into surfaces where their strong and narrow magnetic field can attract and hold the corresponding pieces with precision. Unlike other magnet shapes like Discs or Block, the narrow projection of a cylinder's magnetic field means there is less stray field and less chance of interference to sensitive areas nearby.

Neodymium Cylinder Magnet - 4mm x 5mm (21055)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A
average rating 5.0 out of 5
Based on 4 reviews
  • 5 Stars
    4 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
4 Reviews
Reviewed by Tony
I recommend this product
Rated 5 out of 5
Review posted

Great products and swift delivery

Have purchased magnets many times now for my boxes, and will continue to do so.

Loading...
Was this helpful?
Reviewed by Steve
I recommend this product
Rated 5 out of 5
Review posted

Excellent

I fly model powered aeroplanes and the magnets are being used each side of the joining surfaces of the engine cowling to keep it in place. Works a treat and the magnets are hidden and cowling looks much better than using ye old rubber bands.

Loading...
Was this helpful?
Reviewed by Tony
I recommend this product
Rated 5 out of 5
Review posted

Great products and swift delivery

I use these magnets mostly on many of the boxes that i have been making.

They always do the job well.

Loading...
Was this helpful?
Reviewed by Doug
I recommend this product
Rated 5 out of 5
Review posted

Boxes

I have been making small wooden boxes from various Australian timbers. I use the small magnets to set into one side of the box where the lid and base meet to act as a catch . Seem to do a pretty good job.

Regards

Doug

Loading...
Was this helpful?
