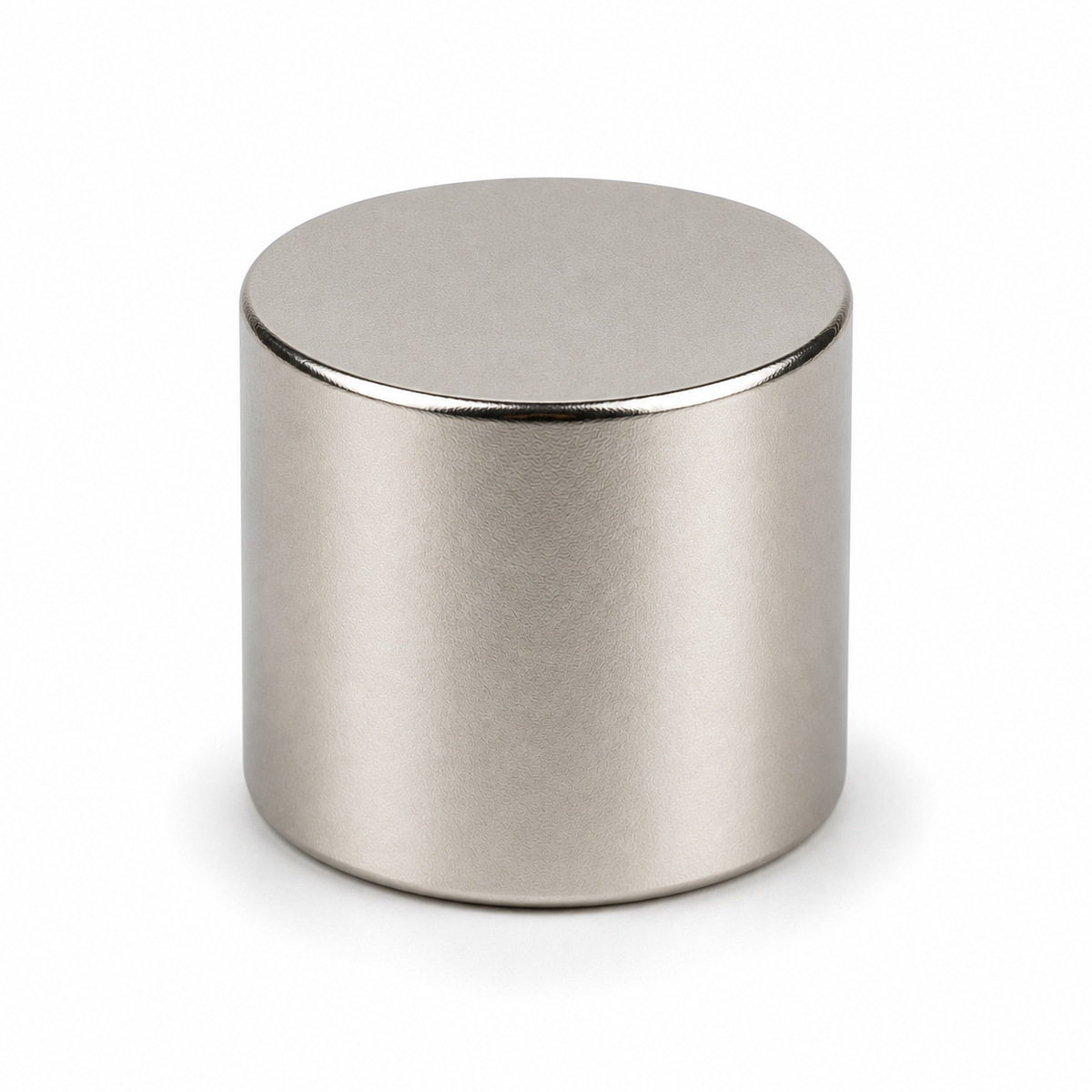

Neodymium Cylinder Magnet - 20mm x 20mm | N40

Product code: C-D20H20-N40

$30.99for 1 to 9 items
$27.54buy 10 to 99 itemsand save 11%
$25.24buy 100+ itemsand save 18%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 20mm x 20mm | N40

Product Code C-D20H20-N40
Pull Force* 15.58 kg
Weight 10 gm
Style Neodymium Cylinder
Gauss 5768
Grade N40
Coating Nickel (Ni)
Direction of Magnetisation Axially
Dimensions Height:20mm, Diameter:20mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 20mm x 20mm | N40

Magnetic Product Description:

This popular rare earth cylinder has a diameter of 20mm and a height of 20mm. It is an N40 grade rare earth magnet. It has a magnetic flux reading of 5768 Gauss and a pull force of 15.58 kg. It is identified by the AMF magnet part number C-D20H20-N40.


Uses for our rare earth cylinder magnets:

The shared height and width proportions of this strong, circular Neodymium magnet make it able to qualify for both cylinder magnet and disc magnet classifications. These equal dimensions translate into high-strength Disc magnet properties or low-strength Cylinder magnet properties. As with all circular magnets, varying the height dimension results in reduced or increased Neodymium material between the poles and this directly impacts the amount of magnetic power that the magnet can generate. The grade of Neodymium material inside the magnet, being N40 Grade in this case, is another factor to be considered when choosing the right magnet for your requirements. The height dimension of the magnet and N Grade of the Neodymiumcan be manipulated to produce the exact bond strength required. This can be crucial in high-tech industrial applications where precision is important. Round Neodymium magnets with these broad physical dimensions are often considered to have practical, multi-purpose or universal uses and are able to perform a comprehensive range of holding duties. Keeping a few magnets of this type in your toolbox will help to solve bonding needs and help you perform your workplace duties more easily. A single magnet of this calibre and dimensions can hold weights up to 20kg.

Neodymium Cylinder Magnet - 20mm x 20mm | N40 (C-D20H20-N40)

Grade
N40 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.26-1.32 N/A
Remanence Br(kGs)
12.6-13.2 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
302-334 N/A
Max Energy Product(BH)max(MGOe)
38-42 N/A
Grade N40 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.26-1.32 N/A
Remanence Br(kGs) 12.6-13.2 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 302-334 N/A
Max Energy Product(BH)max(MGOe) 38-42 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
