Neodymium Cylinder Magnet - 2mm x 2mm N48

Product code: C-D2H2-N48

$0.35for 1 to 99 items
$0.29buy 100 to 999 itemsand save 17%
$0.25buy 1000+ itemsand save 28%
Total
$0.35

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Neodymium Cylinder Magnet - 2mm x 2mm N48

Product Code C-D2H2-N48
Pull Force* 0.108 kgs
Weight 1 gm
Style Neodymium Cylinder Magnet
Gauss 6345
Grade N548
Coating Nickel (Ni)
Direction of Magnetisation Thrugh height
Dimensions Height:2mm, Diameter:2mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 2mm x 2mm N48

Magnetic Product Description:

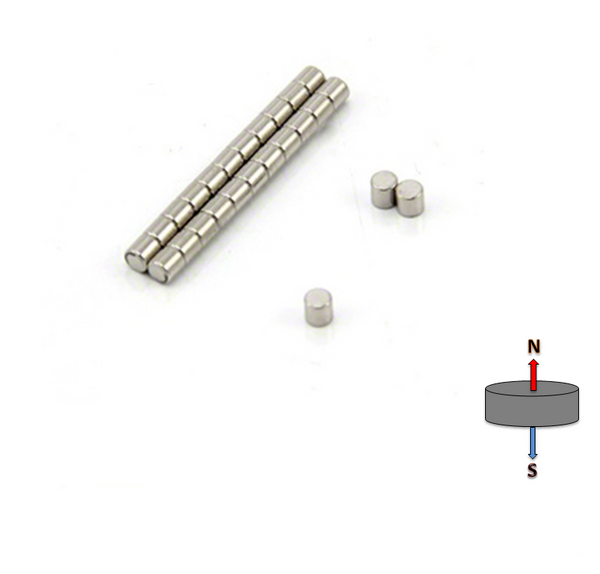

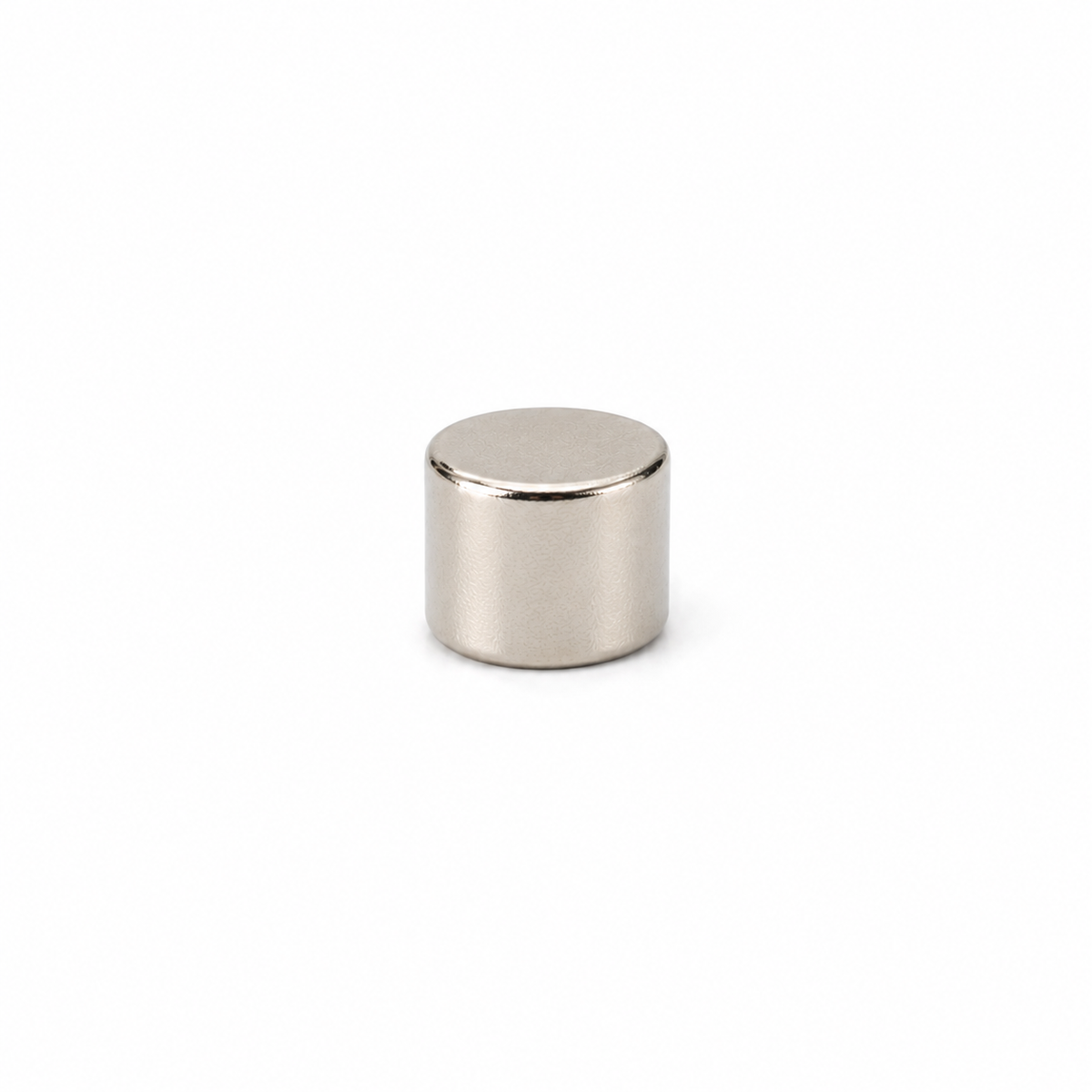

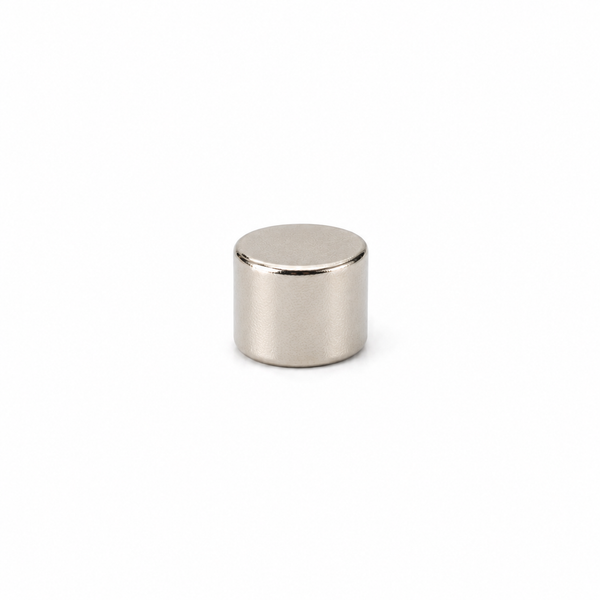

This rare earth cylinder has a diameter of 2mm and a height of 2mm. It has a magnetic flux reading of 6345 Gauss and a pull force of 108 grams. Its part number is C-D2H2-N48.


Uses for our rare earth cylinder magnets:

This Neodymium rod magnet may be small in size however it is made from super strong Neodymium N48 grade material. Permanent magnets such as these rare earth cylinder magnets are ideal for applications that require maximum precision gained through the powerful and narrow magnetic field. Small magnets such as these are often incorporated into larger magnetic products and magnet tools. This magnet is zinc coated which lends it a dull, powdery appearance and provides reasonable protection against corrosion.

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
