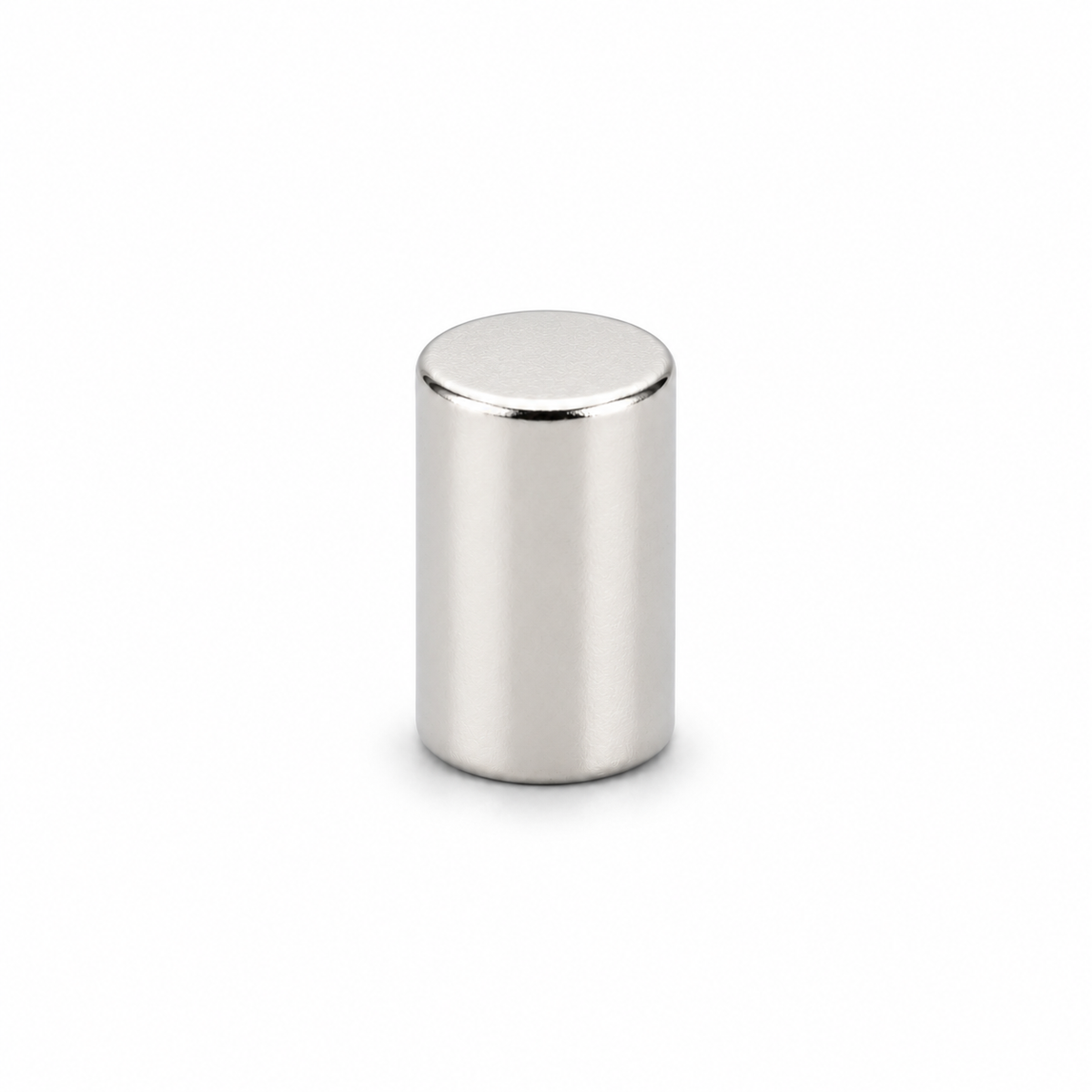

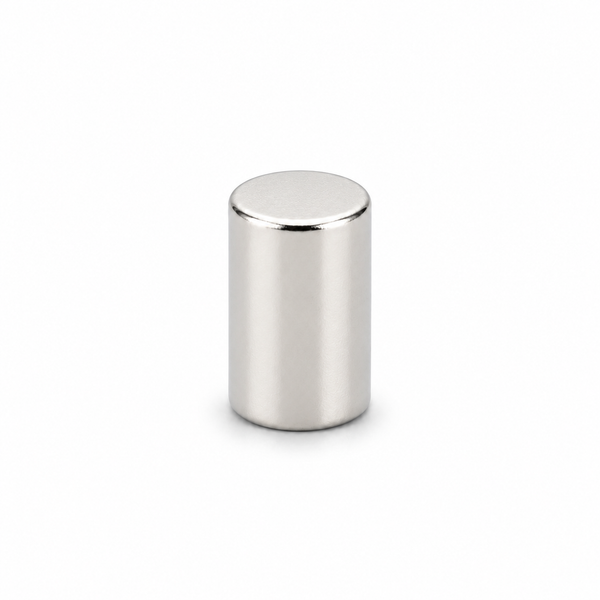

Neodymium Cylinder Magnet - 5mm x 8mm | N42UH | High Temperature ≤180ºC

Product code: C-D5H8-N42UH

$2.88for 1 to 9 items
$2.29buy 10 to 99 itemsand save 20%
$1.82buy 100+ itemsand save 36%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 5mm x 8mm | N42UH | High Temperature ≤180ºC

Product Code C-D5H8-N42UH
Pull Force* 0.9525 kg
Weight 20 gm
Style Neodymium Cylinder magnet
Gauss 6156
Grade N42UH
Coating Nickel (NiCuNi)
Direction of Magnetisation Through Thickness
Dimensions Height:8mm, Diameter:5mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 5mm x 8mm | N42UH | High Temperature ≤180ºC

Magnetic Product Description:

Small cylindrical magnets like these N42UH Grade axially magnetised cylinders are developed for specialised applications where high operating temperatures are encountered. The 5mm diameter cylinder is rated to perform at temperatures up to 180°C and delivers 6156 surface gauss. This Nickel plated magnetic product is axially magnetised and delivers a pull force of 952.5 grams.


Uses for our rare earth cylinder magnets:

Variations in the temperature of the atmosphere in which Neodymium magnets operate has a significant impact on their performance and durability. Optimal performance for standard Neodymium material occurs at temperatures below zero °C and gradually deteriorates as temperatures rise above 80°C. Temperatures above 80°C can negatively impact the internal alignment of the crystalline structures within Neodymium material which, in turn, is reflected in reductions in magnetic output or strength. Prolonged exposure to even higher temperatures can cause permanent demagnetisation to the magnet depending on the length of exposure. High-temperature resistant grades are determined during manufacture and achieved by the inclusion of temperature resistant Rare Earth additives in varying quantities. Resistance to temperatures up to 200°C can be achieved with EH suffixed grade Rare Earth materials.

This Neodymium cylinder can withstand temperatures of up to 180°C and is suited to applications including electric motors, industrial processing equipment and high-performance machinery.

Neodymium Cylinder Magnet - 5mm x 8mm | N42UH | High Temperature ≤180ºC (C-D5H8-N42UH)

Grade
N42UH N/A
Max Operating Temperature °C
<=180 N/A
Remanence Br(T)
1.26-1.29 N/A
Remanence Br(kGs)
12.6-12.9 N/A
Coercivity bHc(kA/m)
>=955 N/A
Coercivity bHc(Oe)
>=12 N/A
Intrinsic Coercivity iHc(kA/m)
>=1990 N/A
Intrinsic Coercivity iHc(Oe)
>=25 N/A
Max Energy Product(BH)max(KJ/m)
302-326 N/A
Max Energy Product(BH)max(MGOe)
38-41 N/A
Grade N42UH N/A
Max Operating Temperature °C <=180 N/A
Remanence Br(T) 1.26-1.29 N/A
Remanence Br(kGs) 12.6-12.9 N/A
Coercivity bHc(kA/m) >=955 N/A
Coercivity bHc(Oe) >=12 N/A
Intrinsic Coercivity iHc(kA/m) >=1990 N/A
Intrinsic Coercivity iHc(Oe) >=25 N/A
Max Energy Product(BH)max(KJ/m) 302-326 N/A
Max Energy Product(BH)max(MGOe) 38-41 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
