Neodymium Disc - 20mm x 3mm N42 (Epoxy)

Product code: 20018A

$5.21for 1 to 9 items
$4.30buy 10 to 99 itemsand save 17%
$3.61buy 100+ itemsand save 30%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc - 20mm x 3mm N42 (Epoxy)

Rated 4.8 out of 5
5 Reviews
Product Code 20018A
Pull Force* 4.3 kg
Weight 7 gm
Style Rare Earth Disc magnet
Grade N42
Tolerance Axially Magnetised
Coating Epoxy
Dimensions Height:3mm, Diameter:20mm
*Measured against up to 10mm mild steel.
Neodymium Disc - 20mm x 3mm  N42 (Epoxy)

Magnetic Product Description:

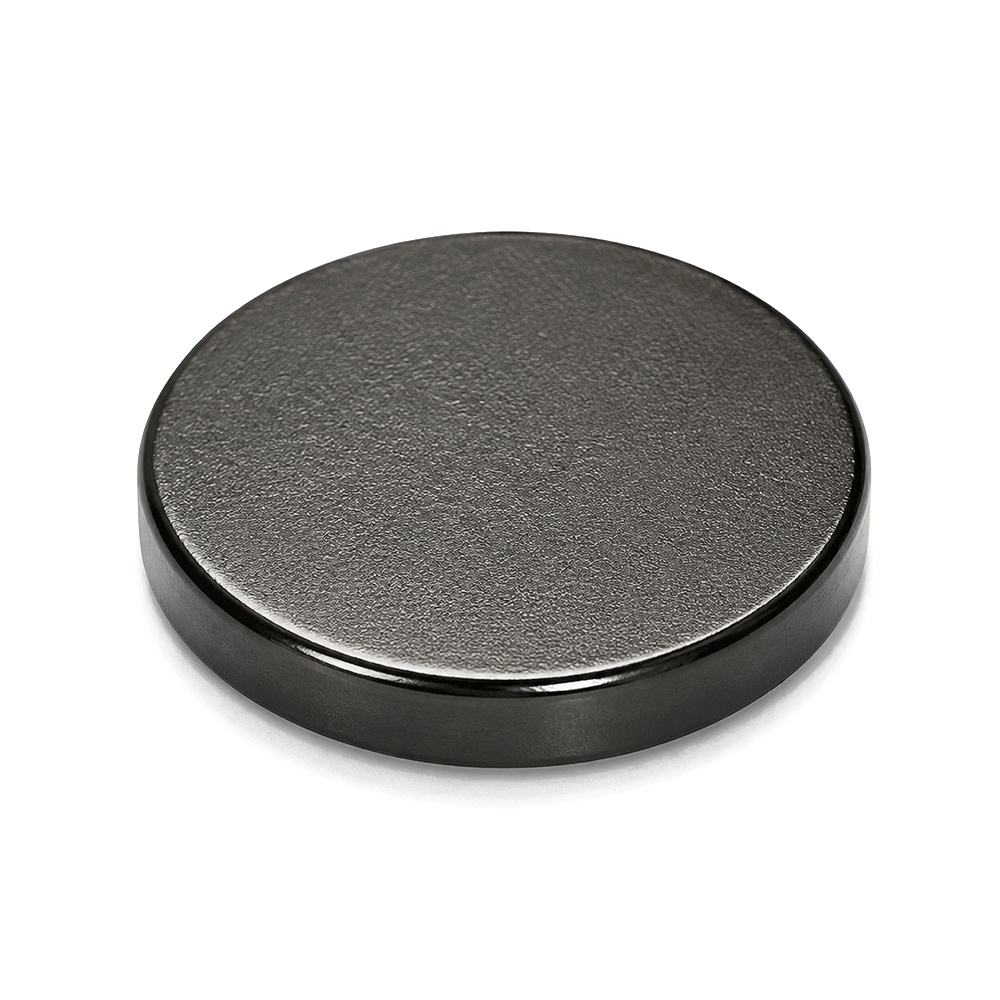

This rare earth disc has a diameter of 20mm and a height of 3mm. It has a magnetic flux reading of 1810 Gauss and a pull force of 4.3kg. It is identified by the AMF magnet part number 20018A.


Uses for our rare earth disc magnets:

These Neodymium Disc magnets have an Epoxy coating that prevents damage to the magnet and other surfaces it is contact with. Choosing the appropriate coating for your application is a key consideration as magnets are prone to corrosion or magnetic degradation in humid atmospheres. These Epoxy coated disc magnets are a practical choice for outdoor use or locations that are susceptible to moisture. The disc is produced from N42 grade magnetic material and this serves to compensate for the adverse effect of the coating which creates a small gap between the magnet and the steel surface it is applied to.

Neodymium Disc - 20mm x 3mm N42 (Epoxy) (20018A)

Grade
N42 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.3-1.35 N/A
Remanence Br(kGs)
13-13.5 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
318-350 N/A
Max Energy Product(BH)max(MGOe)
40-44 N/A
Grade N42 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.3-1.35 N/A
Remanence Br(kGs) 13-13.5 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 318-350 N/A
Max Energy Product(BH)max(MGOe) 40-44 N/A
