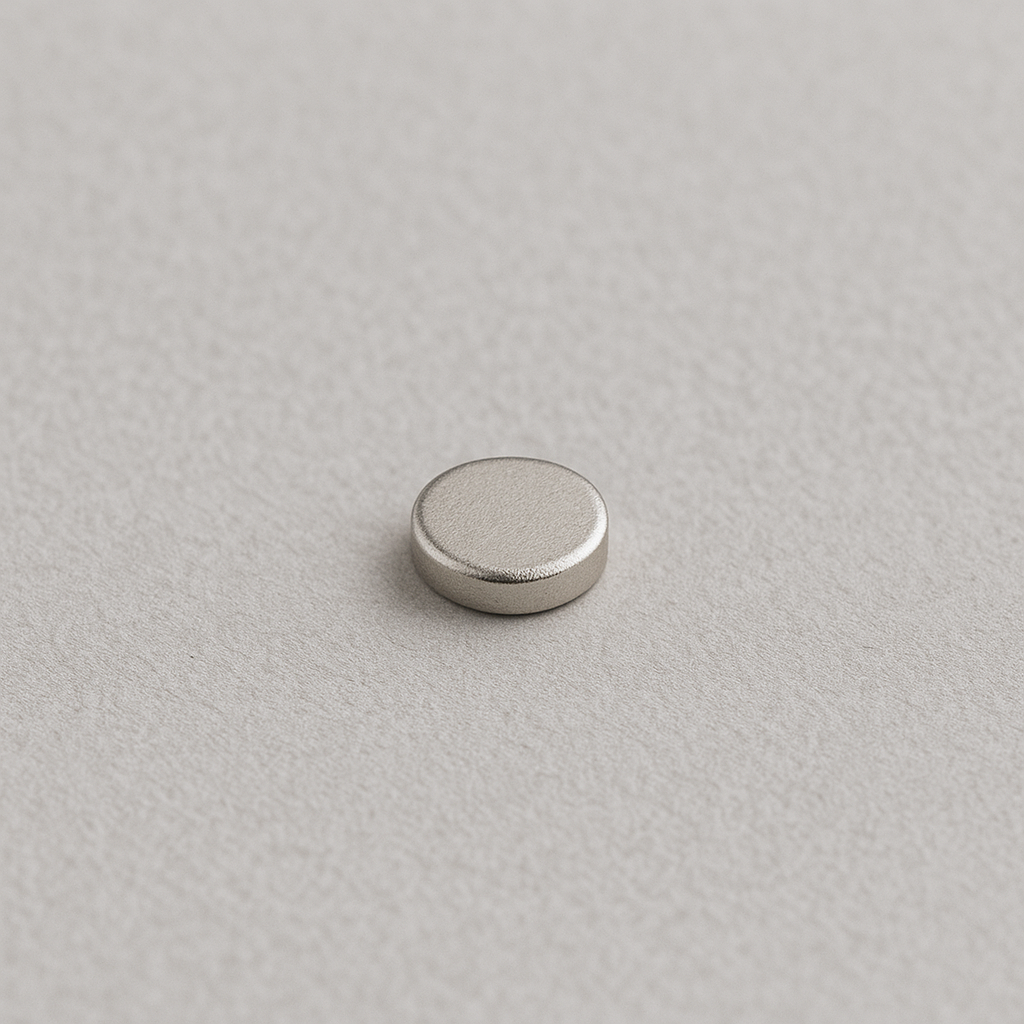

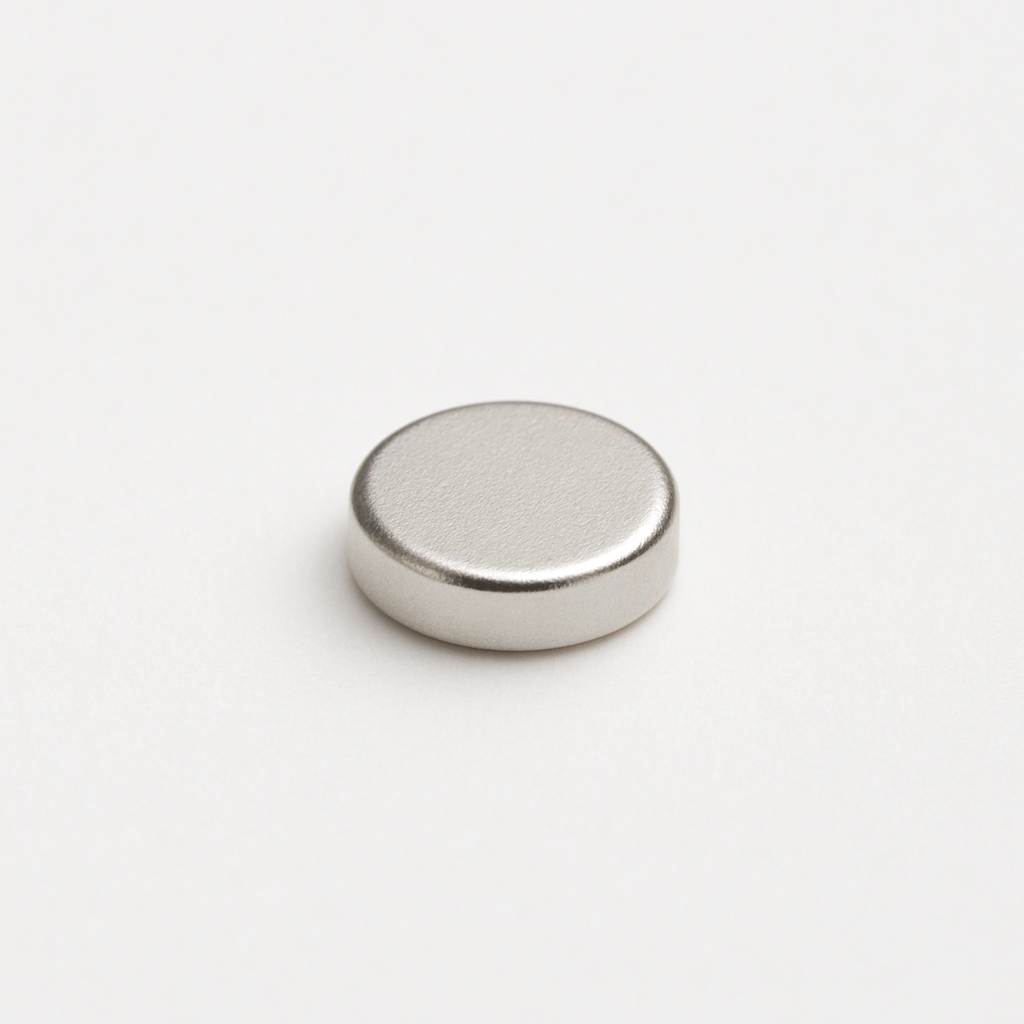

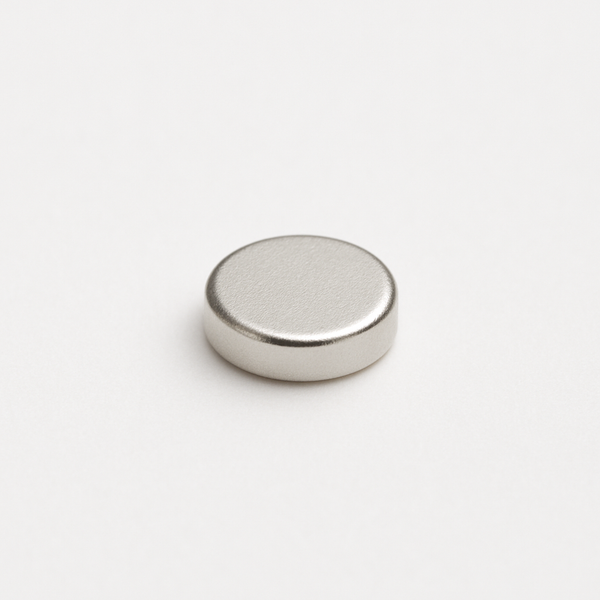

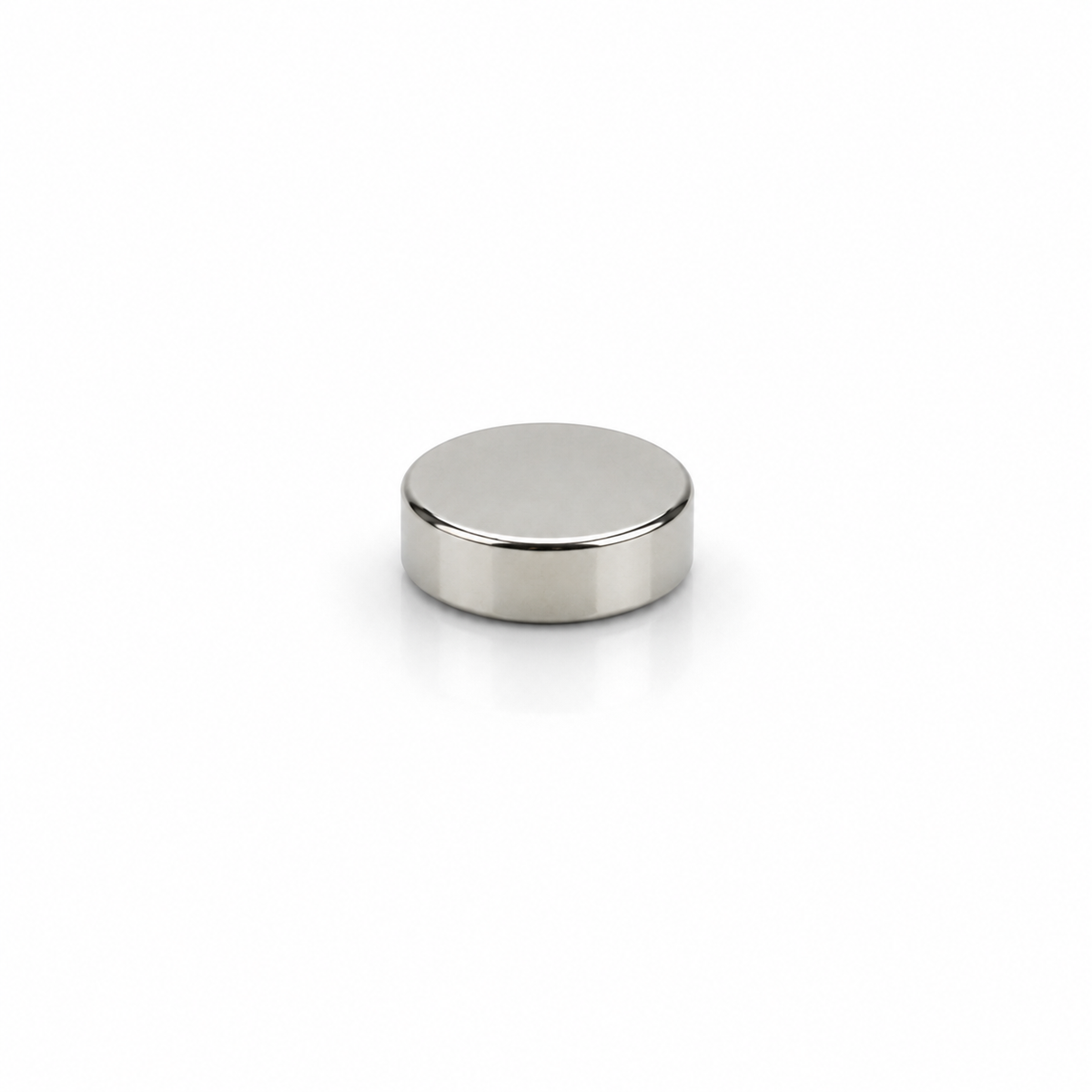

Neodymium Disc Magnet - 3mm x 1.5mm

Product code: 20090

$0.32for 1 to 99 items
$0.28buy 100 to 999 itemsand save 12%
$0.23buy 1000+ itemsand save 28%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 3mm x 1.5mm

Rated 5.0 out of 5
Based on 9 reviews
Product Code 20090
Pull Force* .160 kg
Weight 1 gm
Style Rare Earth Disc magnet
Gauss 4455
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:1.5mm, Diameter:3mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 3mm x 1.5mm

Magnetic Product Description:

Made from strong Rare Earth magnetic material, this permanent magnet is extremely strong for its size. It has a magnetic flux reading of 4455 Gauss and a strong magnetic pull force of 160 grams. This small-sized, circular disc-shaped Rare Earth Disc has a diameter of 3mm and a height of 1.5mm. The nickel coating provides for superior corrosion resistance, enabling long-term use with minimal wear.


Uses for our Rare Earth Disc Magnets:

This miniature Neodymium Disc is one of the smallest magnets in the AMF range and its tiny proportions make it incredibly versatile. This type of Neodymium magnet is ideal for applications where the magnet needs to be discreet yet effective. Small rare earth magnets can be used as a single magnet for lightweight projects or in a series for a stronger hold.
This small disc is popularly used in arts, crafts projects and hobby areas to hold decorations, artworks, models and to display retail items. Model and jewellery makers use these tiny but strong magnetic discs for closure or clamping mechanisms.

Neodymium Disc Magnet - 3mm x 1.5mm (20090)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
