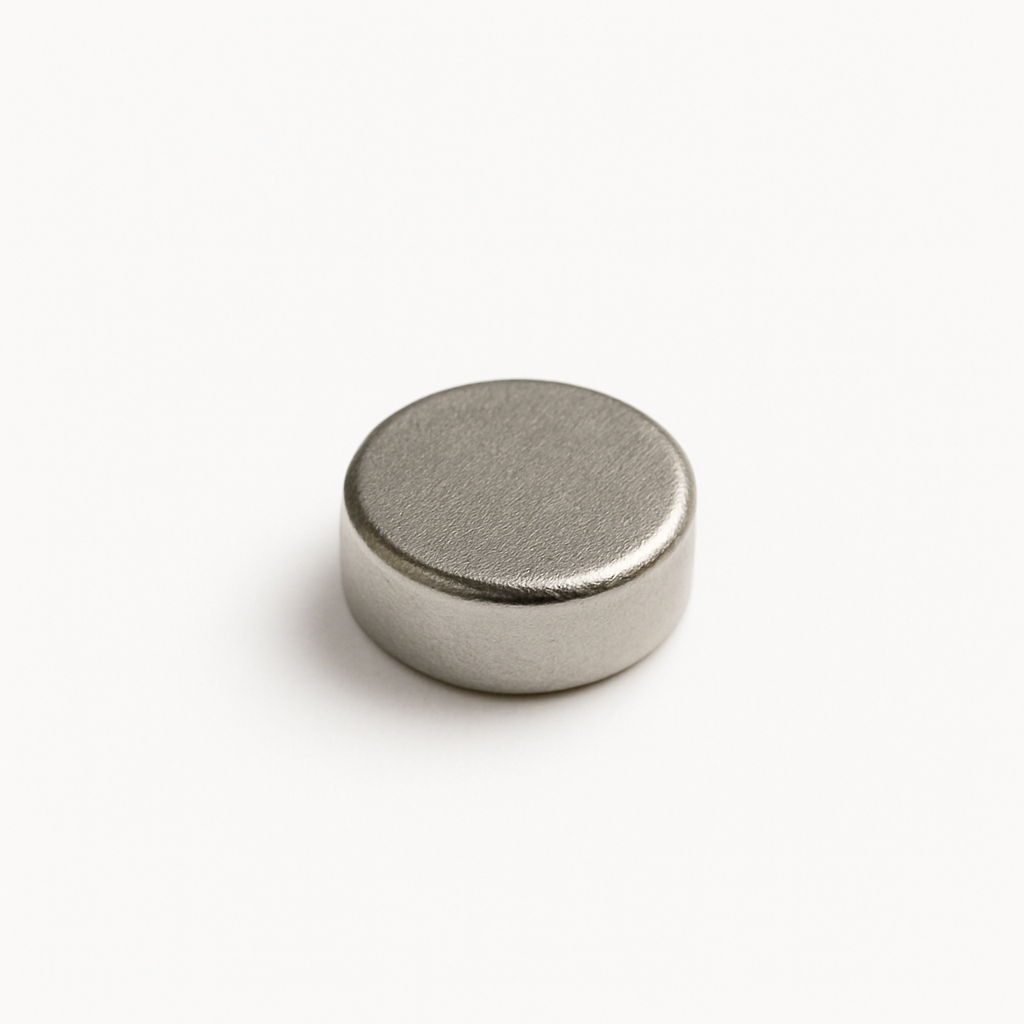

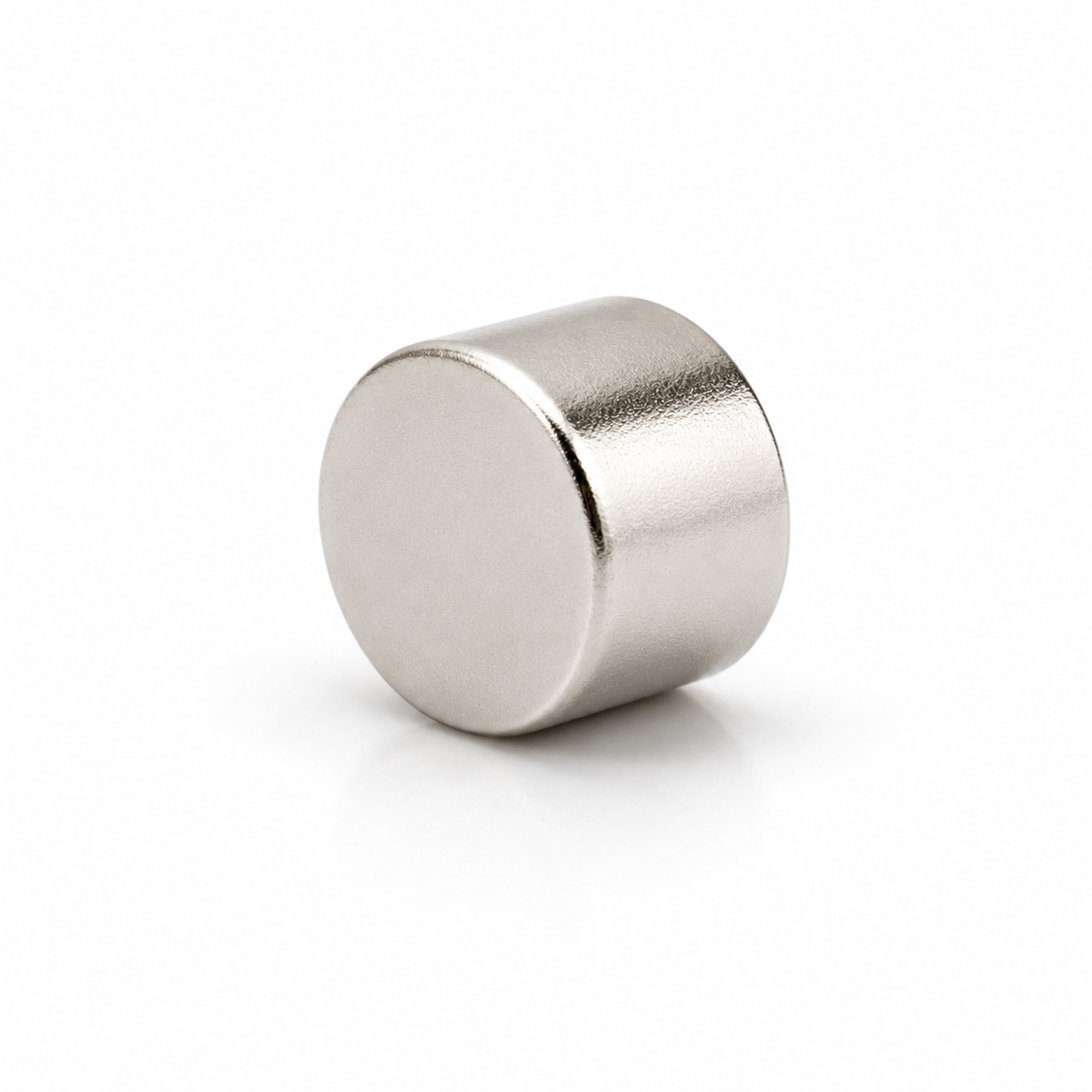

Neodymium Disc Magnet - 3mm x 2mm

Product code: 20087

$0.43for 1 to 99 items
$0.33buy 100 to 999 itemsand save 23%
$0.23buy 1000+ itemsand save 46%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 3mm x 2mm

Rated 4.7 out of 5
Based on 3 reviews
Product Code 20087
Pull Force* .200 kg
Weight 1 gm
Style Rare Earth Disc magnet
Gauss 5040
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:2mm, Diameter:3mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 3mm x 2mm

Neodymium Disc Magnetic Product Description:

This magnet uses powerful rare earth magnetic material, making it one of our strongest magnets at this size. This Rare Earth Disc magnet has a diameter of 3mm and a height of 2mm. Its part number is 20087. This tiny but strong neodymium disc has a magnetic flux reading of 5040 Gauss and a pull force of 200 grams.


Uses for our Neodymium Rare Earth Magnetic Discs:

Small magnets such as these are components in all manner of household items. If you’ve ever had a need to take apart a phone, hard drive or desktop computer you’d be sure to have found a magnetic component inside. If a tiny magnet is needed, this strong magnetic disc gives you the greatest bang for size using super strong neodymium magnetic material.
A range of industries use magnetic and electromagnetic fields to operate sensors and switches in and around the home or workplace. Many industrial manufacturing processes utilise these permanent magnetic discs where a non-permanent or gentle-release bond is required.

Neodymium Disc Magnet - 3mm x 2mm (20087)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
