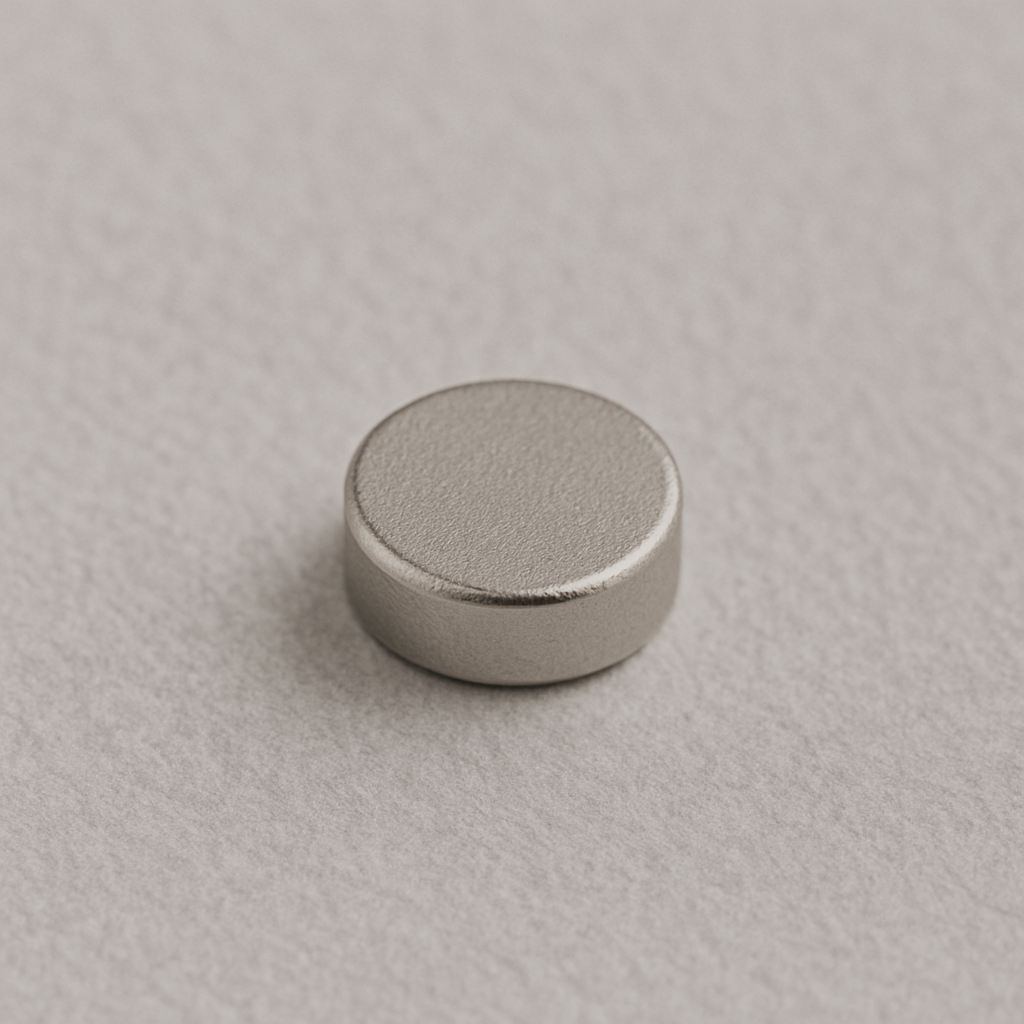

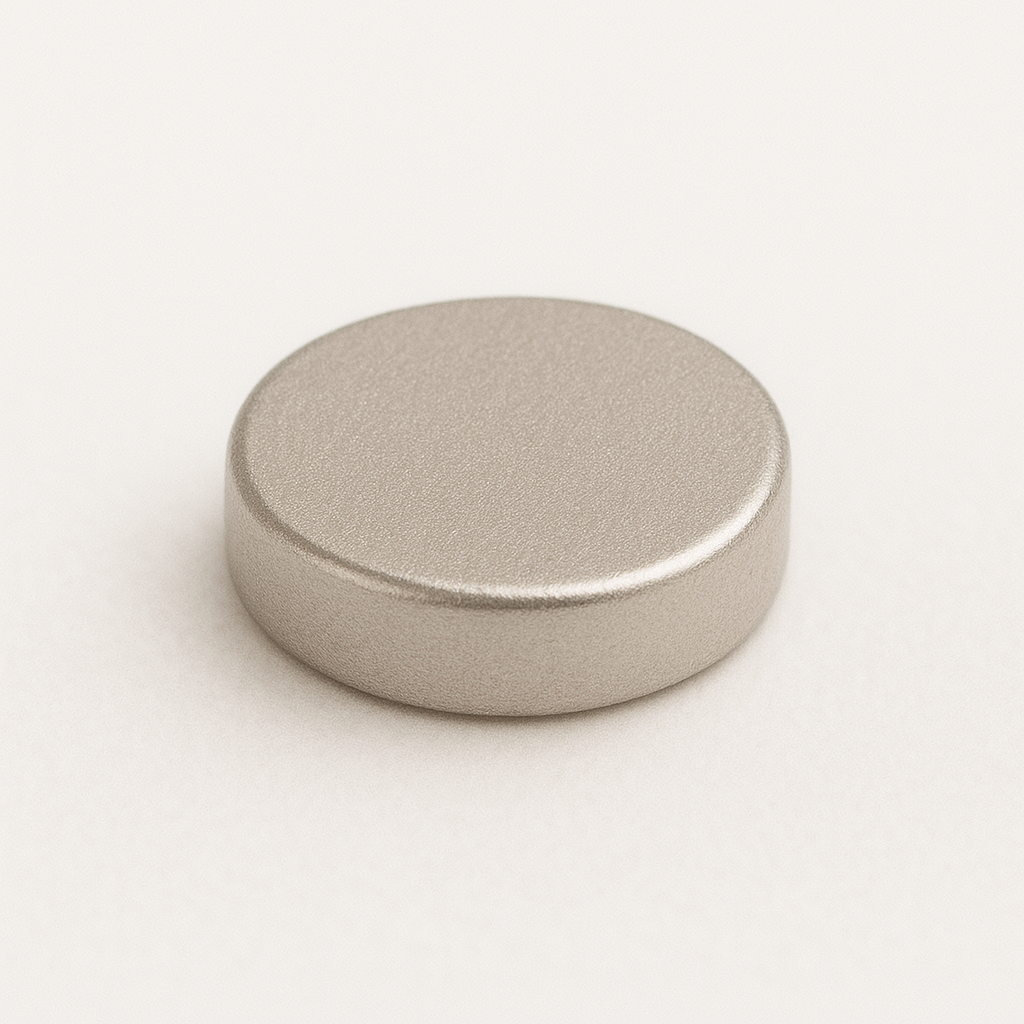

Neodymium Disc Magnet - 4.75mm x 1.5mm

Product code: 20080

$0.37for 1 to 99 items
$0.25buy 100 to 999 itemsand save 32%
$0.22buy 1000+ itemsand save 40%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 4.75mm x 1.5mm

Rated 4.8 out of 5
Based on 5 reviews
Product Code 20080
Pull Force* .290 kg
Weight 1 gm
Style Rare Earth Disc magnet
Gauss 3364
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:1.5mm, Diameter:4.75mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 4.75mm x 1.5mm

Neodymium Rare Earth Disc Magnet Description:

This Neodymium Rare Earth Magnetic Disc has a diameter of 4.75mm and a height of 1.5mm. It has a magnetic flux reading of 3364 Gauss and a pull force of .290kg. Its part number is 20080.
This strong magnetic disc is made from Rare Earth magnetic material and has a nickel coating for corrosion resistance. Neodymium magnets are extremely strong, even in small sizes and provide for an effective yet compact magnet for a wide range of uses.


Uses for our Rare Earth Discs:

These petite Neodymium magnets are appropriate for attaching and holding items that are small and lightweights such as paper or cardboard. At just 1.5mm in thickness, these thin little magnets are incredibly versatile as they don’t add undue bulk or weight to items they are attached to.
They can be used as craft magnetic discs as they are a suitable size and strength for brochure and binder closure mechanisms. Small Rare Earth magnets such as these have become critical components in many electronic and medical devices. They can be found in all manner of objects from fridges, communication devices and computer hard drives to specialised scientific equipment.

Neodymium Disc Magnet - 4.75mm x 1.5mm (20080)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 4.8 out of 5
Based on 5 reviews
  • 5 Stars
    4 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
5 Reviews
Reviewed by Dennis
I recommend this product
Rated 4 out of 5
Review posted

Needed some magnets for an art project.

Super happy with these magnets, they were the perfect size I needed, however, they are kind of fragile, and I broke a couple when they snapped back onto the stack of magnets I had on the table. D'OH.

Loading...
Was this helpful?
Reviewed by Dennis
I recommend this product
Rated 5 out of 5
Review posted

Needed some small magnets for an art project.

The magnets I got were perfect for the task, information to understand,easy to order and fast delivery what else you can say.

Loading...
Was this helpful?
Reviewed by Vince
I recommend this product
Rated 5 out of 5
Review posted

Rare Earth Magnets

They worked fantastic! Using them on Games Workshop Dreadnoughts in the shoulder sockets so I can swap out weapon load-outs.

Loading...
Was this helpful?
Reviewed by Brian H.
I recommend this product
Rated 5 out of 5
Review posted

Excellent for use applied.

Attached to HO scale model train to activate magnetic Reed Switches.

Loading...
Was this helpful?
Reviewed by Mark W.
I recommend this product
Rated 5 out of 5
Review posted

Neodymium Disc Magnets

Awesome service super fast delivery, product exactly as described, excellent quality. Very happy.

Loading...
Was this helpful?
