Neodymium Disc Magnet - 50mm x 6mm

Product code: 20001A

$22.50for 1 to 9 items
$19.12buy 10 to 99 itemsand save 15%
$16.26buy 100+ itemsand save 27%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 50mm x 6mm

Rated 5.0 out of 5
3 Reviews
Product Code 20001A
Pull Force* 17.2kg
Weight 87 gm
Style Rare Earth Disc magnet
Gauss 1470
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:6mm, Diameter:50mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 50mm x 6mm

Magnetic Product Description:

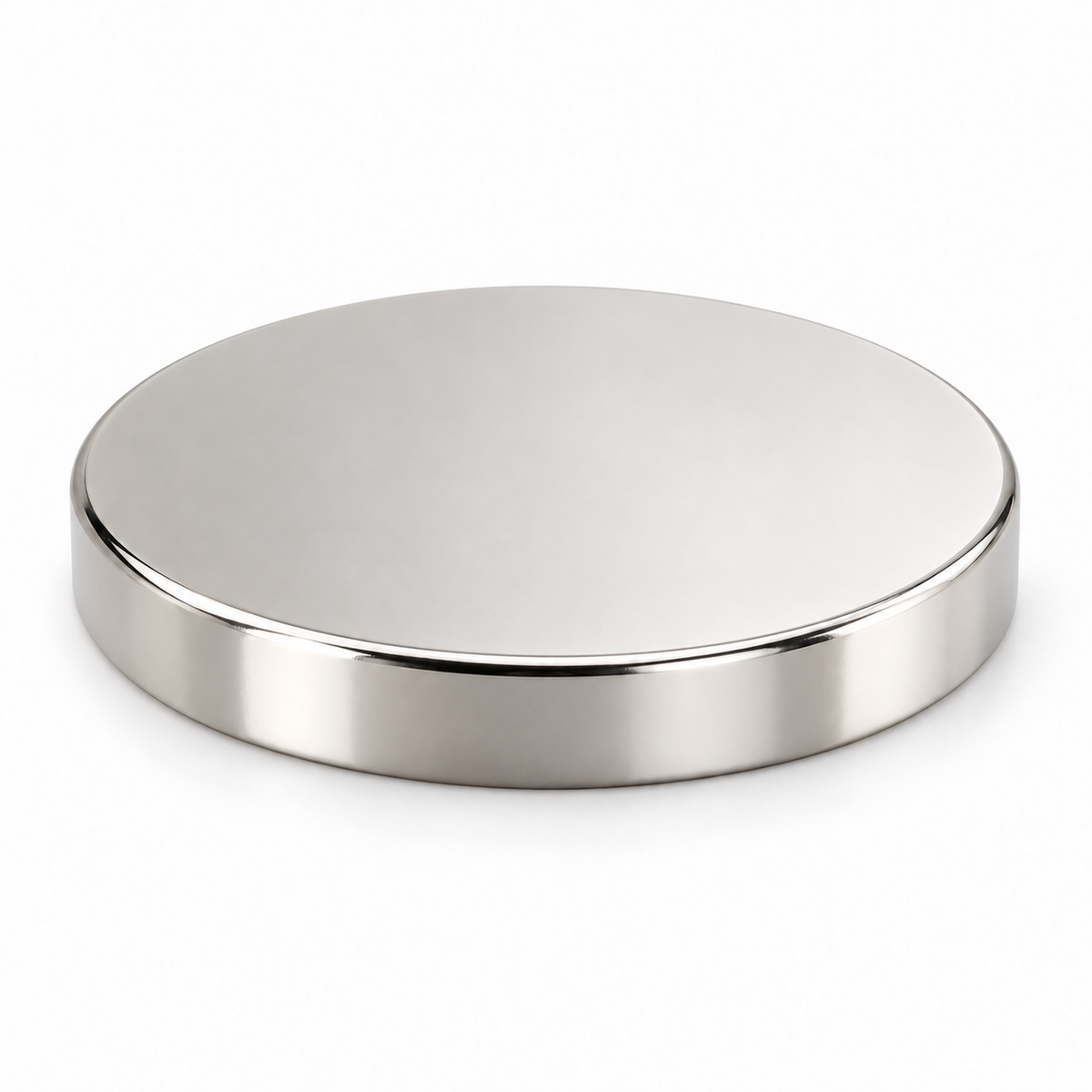

This rare earth disc magnet has a diameter of 50mm and a height of 6mm. It has a magnetic flux reading of 1470 Gauss and a pull force of 17.2 kilos. It is identified by the AMF magnet part number 20001A.


Uses for our rare earth disc magnets:

These magnets are of Industrial strength. They MUST BE HANDLED WITH CARE. Careless use can result in damage to nearby magnetic data, computers and electronic devices such as smartphones. Neodymium magnets, or Rare Earth magnets, as they are commonly known are the world’s most powerful permanent magnets. Due to the large surface area of these discs, relative to their thinness, these magnets are brittle in nature and should be handled in accordance with the instructions given.

These magnets have many industrial applications and are often incorporated into equipment and jigs used for metal separation and retrieval or site decontamination and remediation. Other common uses include water conditioning and purification, as well as magnetic industrial stirrers where the magnets are critical for metal detection and holding.

Magnets can be found in use in some unexpected places such as the couture fashion industry; designers have adopted magnets as an indispensable means of holding and supporting voluminous and heavy fabric garments.

Neodymium Disc Magnet - 50mm x 6mm (20001A)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A
