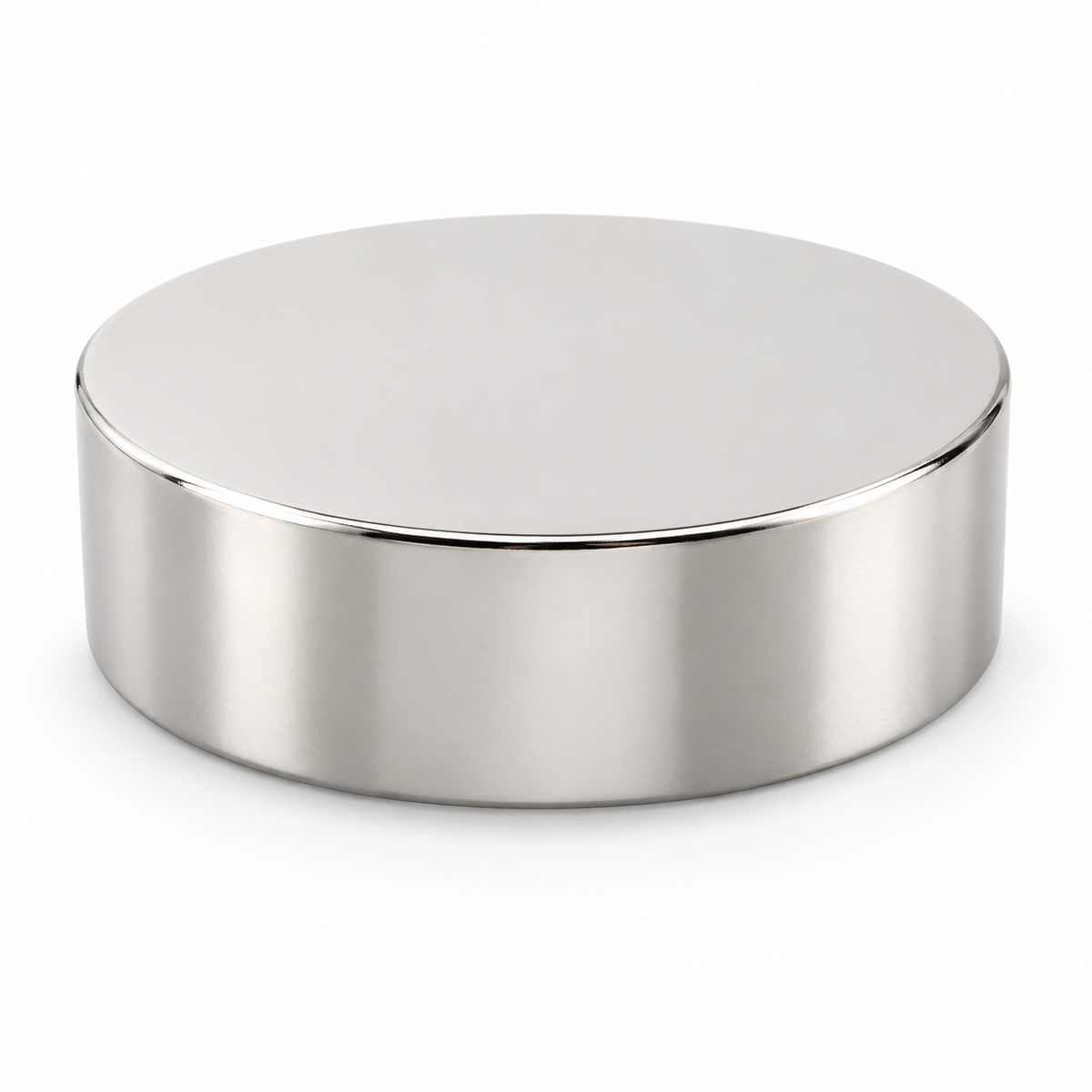

Neodymium Disc Magnet - 30mm x 10mm | N45H | High Temperature

Product code: 20002B

$54.00for 1 to 9 items
$45.95buy 10 to 99 itemsand save 14%
$36.32buy 100+ itemsand save 32%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 30mm x 10mm | N45H | High Temperature

Product Code 20002B
Pull Force* 22.95 kg
Weight 52 gm
Style Rare Earth Disc magnet
Gauss 3800
Grade N45H (High Temp up to 120C)
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:10mm, Diameter:30mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 30mm x 10mm | N45H | High Temperature

Magnetic Product Description:

These rare earth disc magnets have a diameter of 30mm and a height of 10mm. They have a magnetic flux reading of 3800 Gauss and a pull force of 22.95 kilos. It is identified by the AMF magnet part number 20002B.


Uses for our rare earth disc magnets:

Entities supplying engineering equipment to offshore oil and gas platforms make sure they pack plenty of these neodymium disc 30mmx10mm magnets for the long trip over the ocean. They deliver miles of steel wire ropes, chains, slings and associated fittings for lifting, carrying and holding along with everything else a huge industrial platform may need in the way of engineering kit. Wherever steel products go, magnets are right alongside them, including these versatile all-rounders. Valued for their fastening, hold and release and connective tissue properties, magnets help keep these drilling and pumping platforms safe in one of the most unforgiving environments on earth: the middle of the ocean.

Apparatus involved in lifting holding and releasing of mining and pumping equipment, can be found in other industries, but apparatus for holding and releasing the off shore rig itself, sometimes anchored to the ocean floor, and is a scope of another order and magnitude. Steel wire ropes as thick as a man’s torso, single drop forged simple hooks the size of a double bed and as thick as the mattress.

As well as applications throughout the offshore platforms operations, magnets are used in conjunction with fail safe devices embedded in some of this extreme scale kit and equipment. In an emergency, these fail safe devices, with the aid of magnets, release their hold on the piece of kit at a pre-determined point.

That is, the apparatus will fail under certain stresses, but at place in the apparatus of the engineer’s choosing. The engineers cannot afford chance to determine where the break in the apparatus will occur in the event of an emergency. This mechanism allows for the sacrifice one part of the apparatus, (the hook) to preserve another (the crane).

Magnets with their trusted and accurate pull force properties allows the engineer to determine how much force needs to be applied to the apparatus to trigger the fail-safe device. This principle of built in redundancy under certain conditions, cyclonic weather for instance, applies across the fixing holding and carrying protocols on off shore oil and gas rigs. Miners operating deep in the ocean hundreds of miles from solid ground require the highest levels of vigilance when managing their operations. With the help of these neodymium disc 30mmx10mm magnets, and others like them, offshore mining can remain a viable and safe form of resource capture.

Today food waste management is more than just scraping the dinner tables leftovers into the dog’s dish. Today many businesses in hospitality and food markets utilize machines to process discarded food for recovery as a clean source of organic fertilizer and for electricity generation. Companies supplying these machines use neodymium-disc-30mm-x-10mm magnets throughout their production chain in the delivery of this very useful service.

Neodymium Disc Magnet - 30mm x 10mm | N45H | High Temperature (20002B)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
