Neodymium Disc Magnet - 3mm x 2.5mm | N45

Product code: D-D3H2.5-N45

$0.39for 1 to 99 items
$0.32buy 100 to 999 itemsand save 17%
$0.27buy 1000+ itemsand save 30%

Prices are GST Incl.

Volume pricing available on request

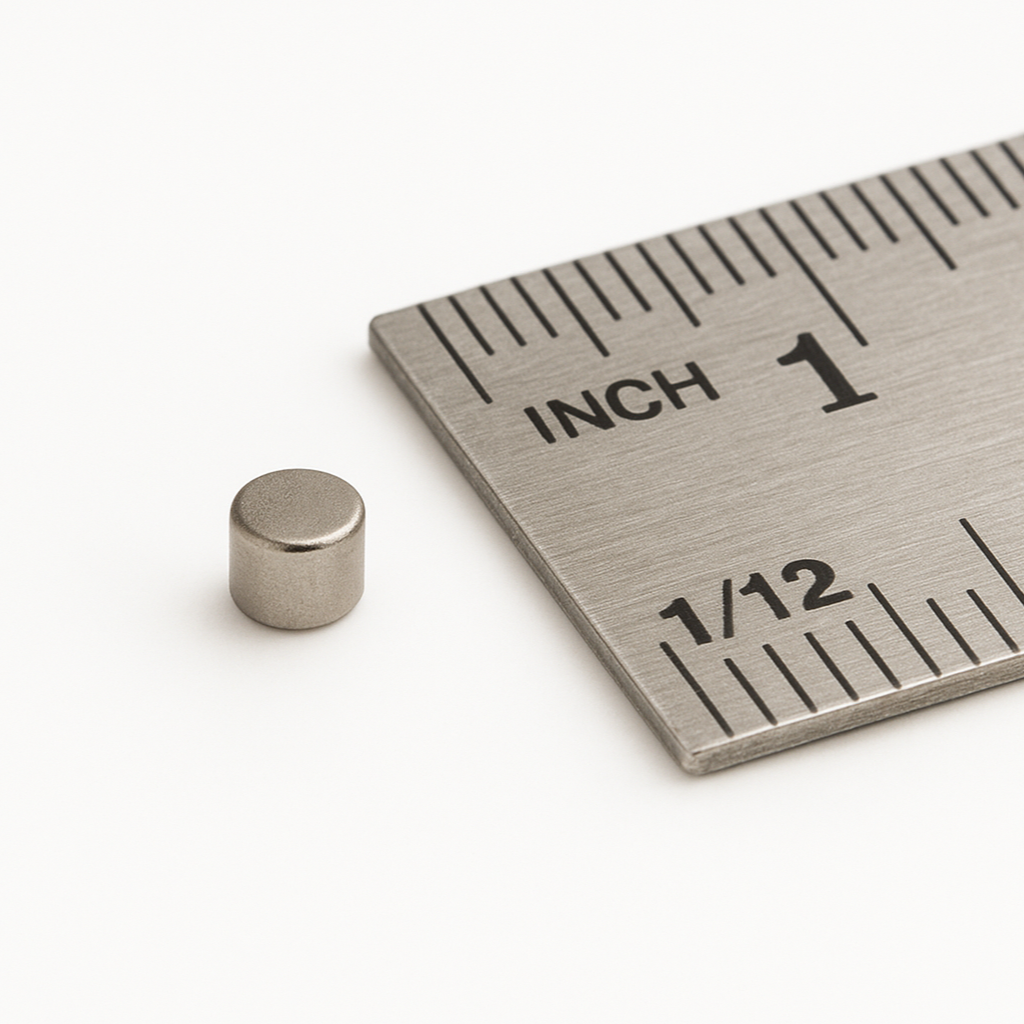

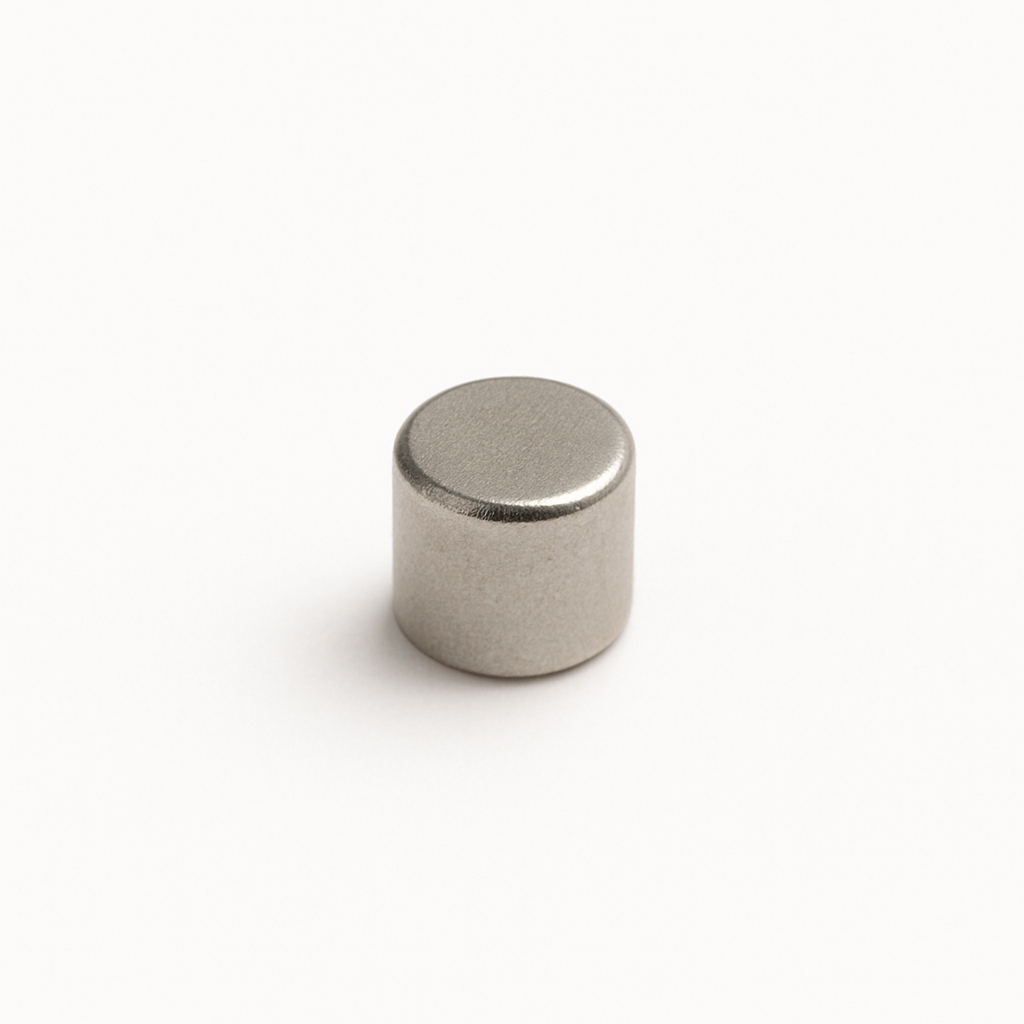

Neodymium Disc Magnet - 3mm x 2.5mm | N45

Product Code D-D3H2.5-N45
Pull Force* 267 gm
Weight 1 gm
Style Neodymium DISC
Gauss 5870
Grade N45
Coating Nickel
Direction of Magnetisation Axially through height
Dimensions Height:2.5mm, Diameter:3mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 3mm x 2.5mm | N45

Magnetic Product Description:

This neodymium magnetic disc has a diameter of 3mm and a height of 2.5mm. It has a pull force of 0.267 kilos. It is identified by the AMF magnet part number D-D3H2.5-N45.


Uses for our rare earth disc magnets:

Rare earth magnets come in all sorts of sizes, shapes and grades. From petite little magnets through to heavy-duty magnets, Neodymium is the magnetic material of choice. Renowned for its powerful magnetic properties, Neodymium is the strongest type of permanent magnet. It has allowed for huge technological developments across a wide range of industries that have taken advantage of the powerful reliable magnetic hold this material provides.

Tiny round magnets such as this have an incredibly diverse range of applications. They are commonly incorporated into all sorts of electronic equipment like phones, speakers, sensors, alarms and myriads more. They are also popular with jewellery makers, craftspeople or just your garden variety home tinkerer. Able to impart a surprisingly strong magnetic field, these little circle magnets are always in high demand.



Neodymium Disc Magnet - 3mm x 2.5mm | N45 (D-D3H2.5-N45)

Grade
N45 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.32-1.38 N/A
Remanence Br(kGs)
13.2-13.8 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
334-366 N/A
Max Energy Product(BH)max(MGOe)
42-46 N/A
Grade N45 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.32-1.38 N/A
Remanence Br(kGs) 13.2-13.8 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 334-366 N/A
Max Energy Product(BH)max(MGOe) 42-46 N/A
Neodymium Disc Magnet - 3mm x 2.5mm | N45

Magnetic Product Description:

This neodymium magnetic disc has a diameter of 3mm and a height of 2.5mm. It has a pull force of 0.267 kilos. It is identified by the AMF magnet part number D-D3H2.5-N45.


Uses for our rare earth disc magnets:

Rare earth magnets come in all sorts of sizes, shapes and grades. From petite little magnets through to heavy-duty magnets, Neodymium is the magnetic material of choice. Renowned for its powerful magnetic properties, Neodymium is the strongest type of permanent magnet. It has allowed for huge technological developments across a wide range of industries that have taken advantage of the powerful reliable magnetic hold this material provides.

Tiny round magnets such as this have an incredibly diverse range of applications. They are commonly incorporated into all sorts of electronic equipment like phones, speakers, sensors, alarms and myriads more. They are also popular with jewellery makers, craftspeople or just your garden variety home tinkerer. Able to impart a surprisingly strong magnetic field, these little circle magnets are always in high demand.



Neodymium Disc Magnet - 3mm x 2.5mm | N45 (D-D3H2.5-N45)

Grade
N45 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.32-1.38 N/A
Remanence Br(kGs)
13.2-13.8 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
334-366 N/A
Max Energy Product(BH)max(MGOe)
42-46 N/A
Grade N45 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.32-1.38 N/A
Remanence Br(kGs) 13.2-13.8 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 334-366 N/A
Max Energy Product(BH)max(MGOe) 42-46 N/A
