Neodymium Disc Magnet - 3mm x 2mm | N45

Product code: D-D3H2-N45

$0.44for 1 to 99 items
$0.36buy 100 to 999 itemsand save 18%
$0.25buy 1000+ itemsand save 43%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 3mm x 2mm | N45

Product Code D-D3H2-N45
Pull Force* 231g
Weight 1 gm
Style Neodymium Disc
Gauss 5477
Grade N45
Coating Nickel (Ni)
Direction of Magnetisation Axially
Dimensions Height:2mm, Diameter:3mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 3mm x 2mm | N45

Magnetic Product Description:

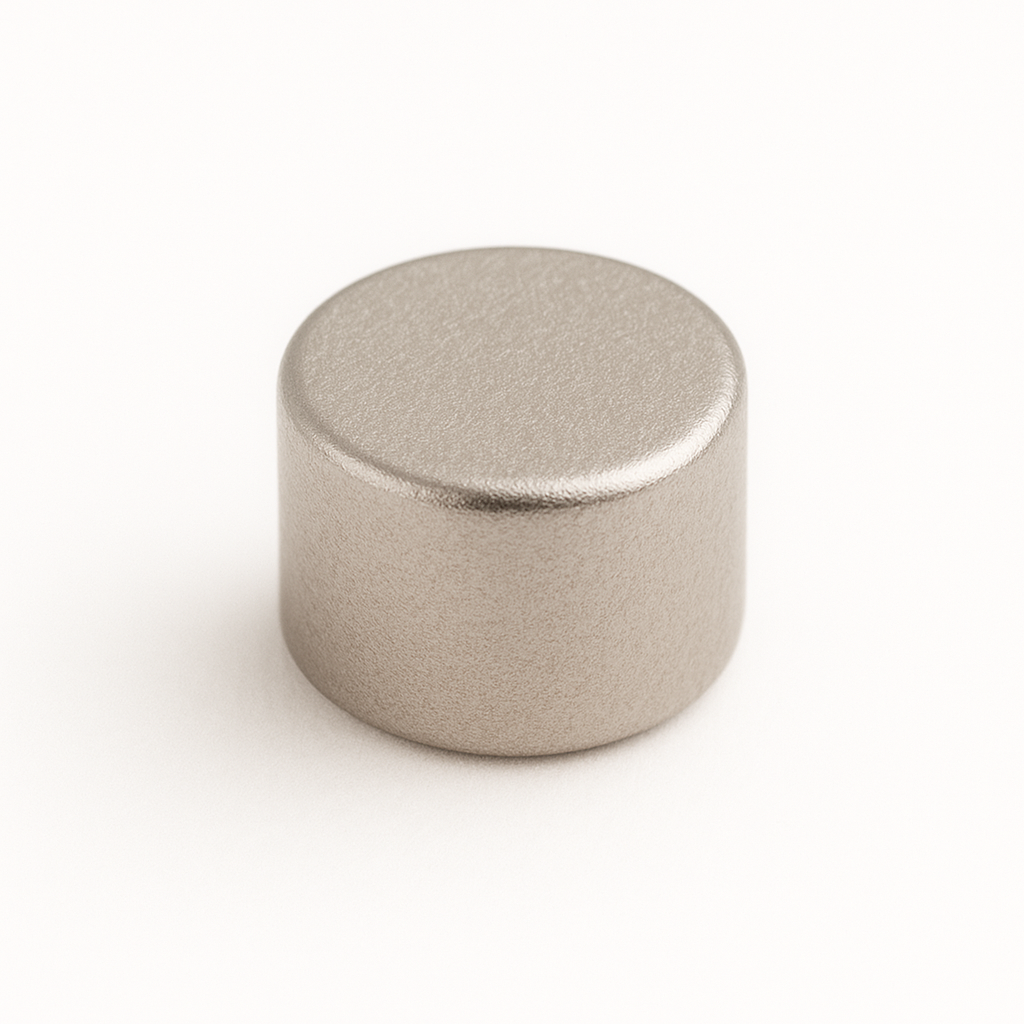

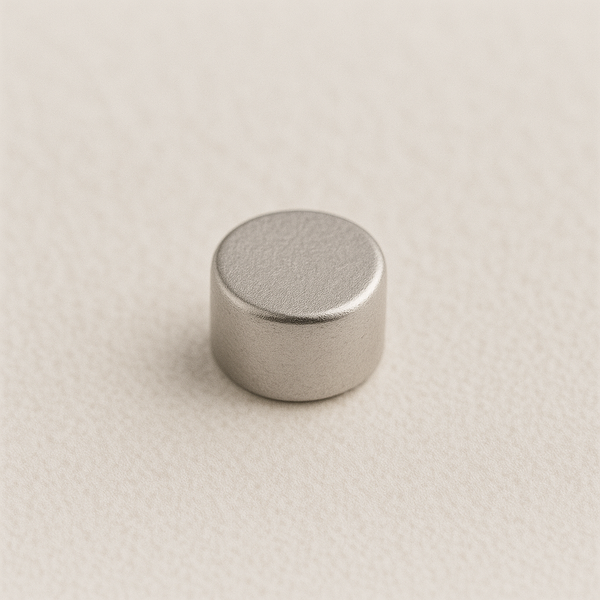

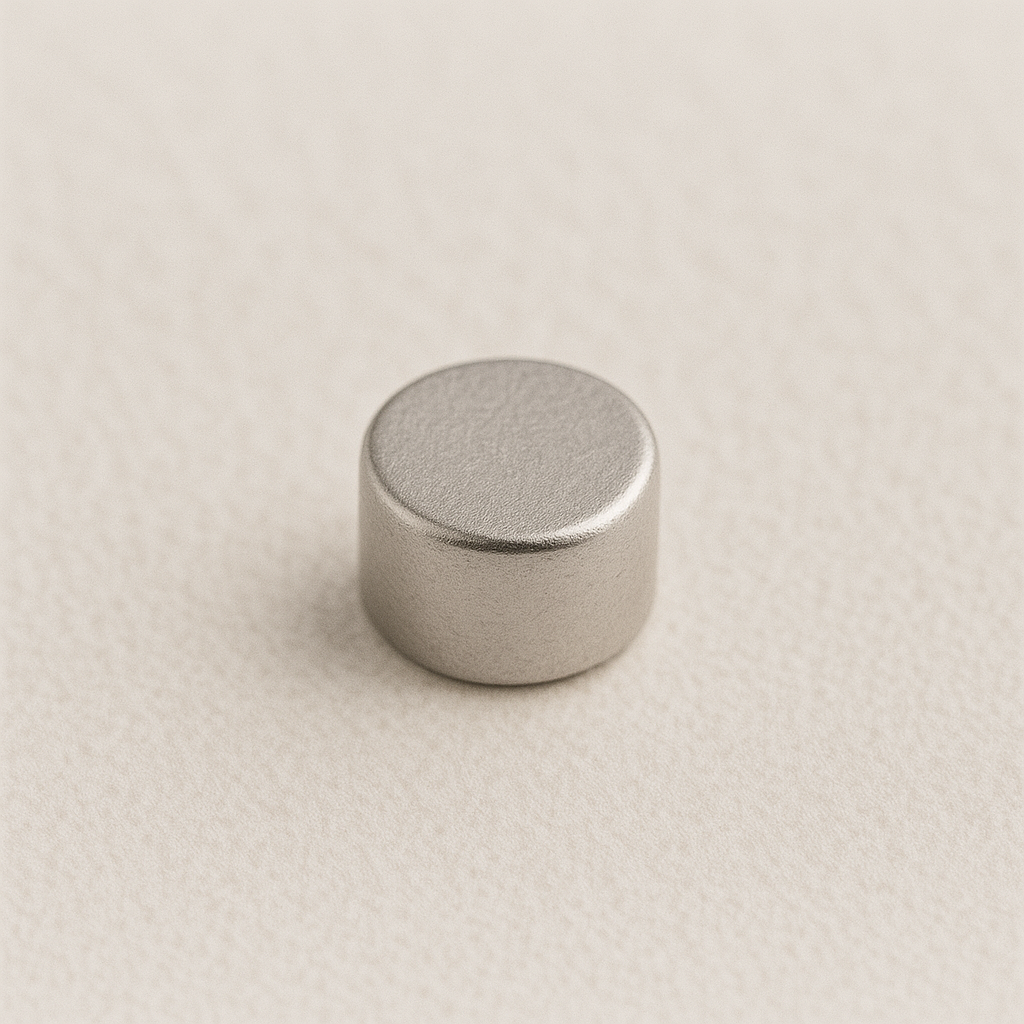

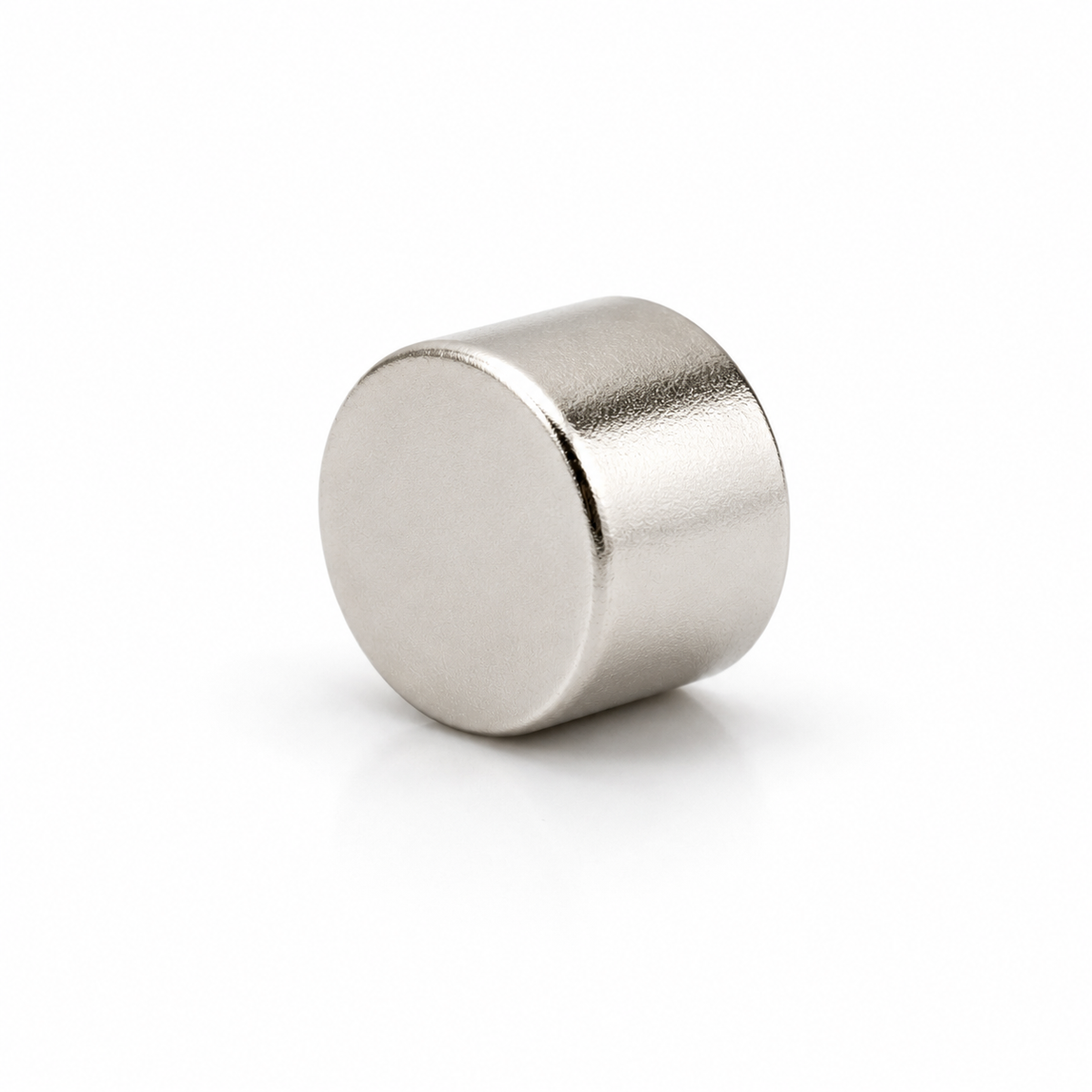

This neodymium magnetic disc has a diameter of 3mm and a height of 2mm. It has a magnetic flux reading of 5477 Gauss and a pull force of 231 grams. It is identified by the AMF magnet part number D-D3H2-N45.


Uses for our rare earth disc magnets:

Manufactured with powerful Neodymium magnetic material, these discs are made of the strongest type of permanent magnets available. These are indeed mini magnets and the small and thin dimensions of these Neodymium disc magnets mean they are perfect for applications where space is limited. Small round magnets are very sought after as craft magnets as they are lightweight and surprisingly powerful. Traditionally Ferrite magnets have been used for small lightweight applications such as fridge magnets however theY are far weaker than powerful Neodymium and require more magnetic material to achieve a similar hold compared to rare earth disc magnets.

Neodymium Disc Magnet - 3mm x 2mm | N45 (D-D3H2-N45)

Grade
N45 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.32-1.38 N/A
Remanence Br(kGs)
13.2-13.8 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
334-366 N/A
Max Energy Product(BH)max(MGOe)
42-46 N/A
Grade N45 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.32-1.38 N/A
Remanence Br(kGs) 13.2-13.8 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 334-366 N/A
Max Energy Product(BH)max(MGOe) 42-46 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
