Product code: D-D4H1-N45
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

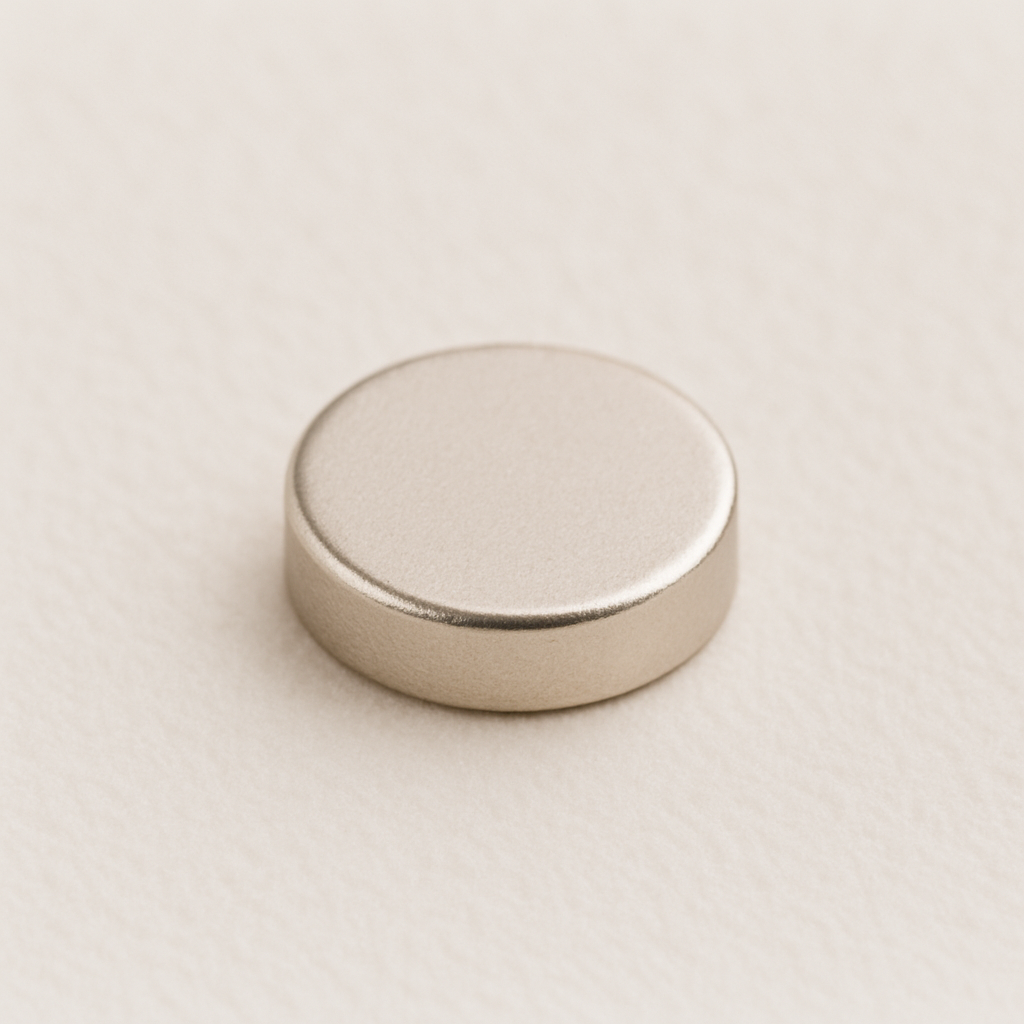

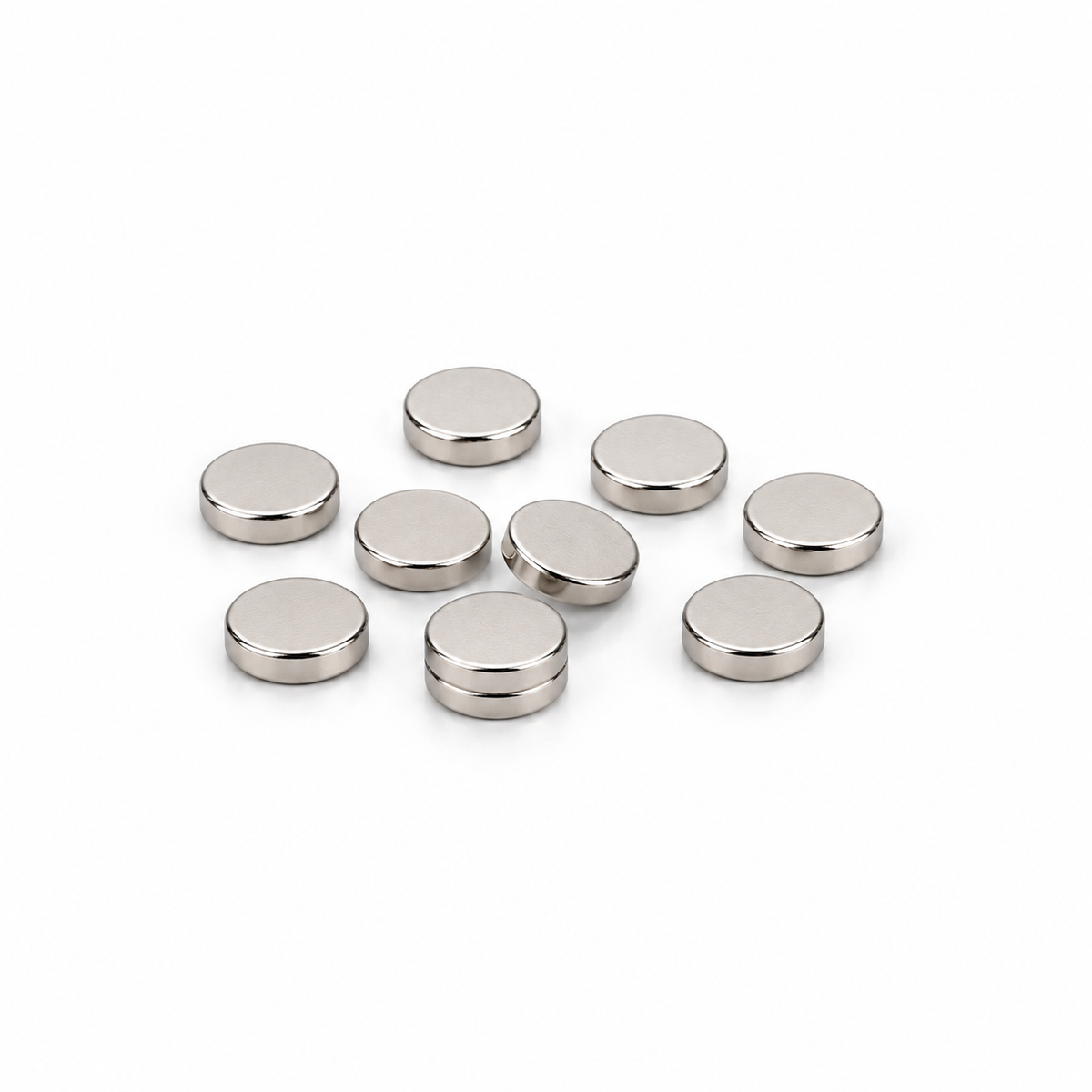

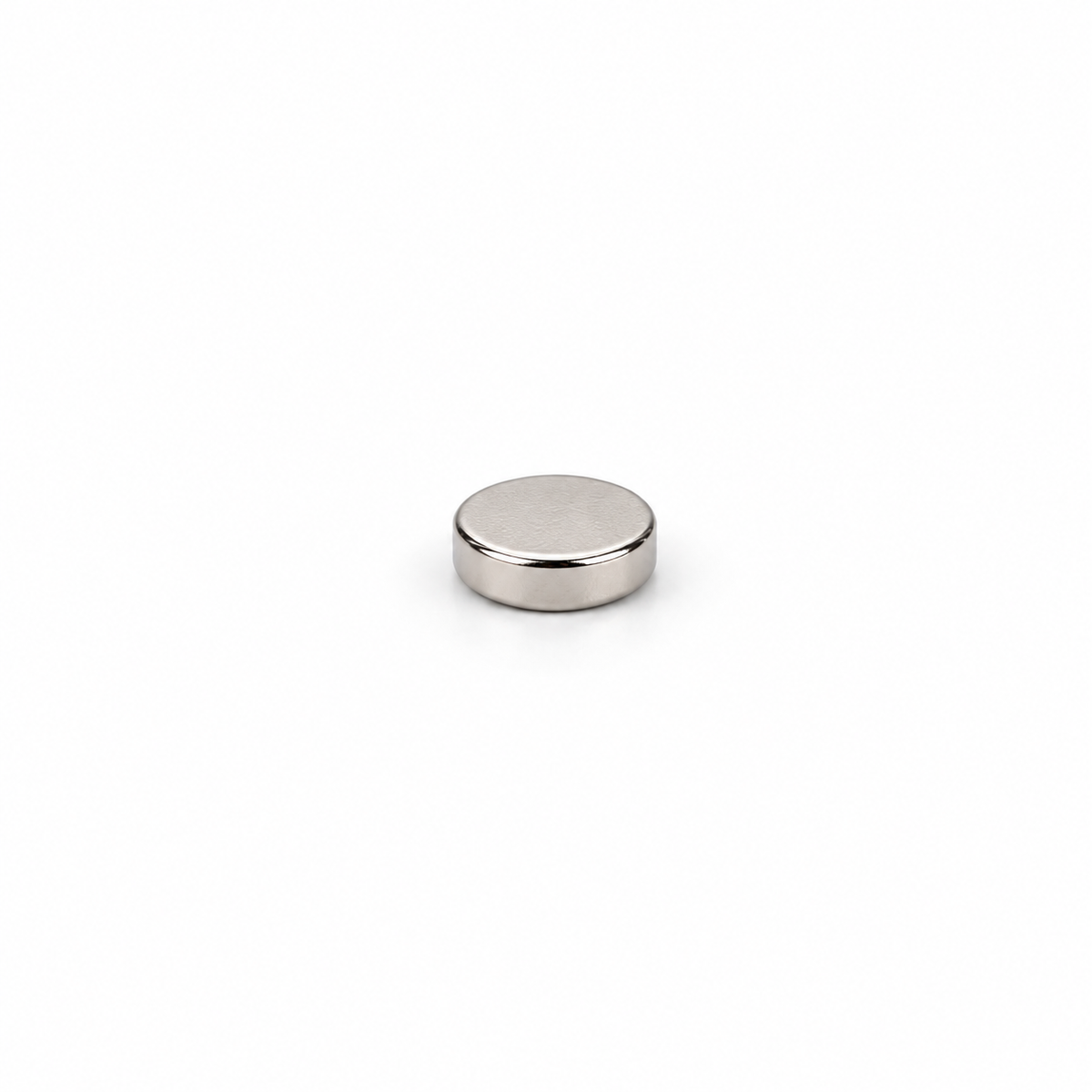

This 4mm x 1mm Neodymium disc magnet is at the smaller end of our huge range of magnets. The tiny dimensions of these magnets are complemented by the N45 grade magnetic material. The North and South poles are present through the two flat faces of this axially magnetisied disc, providing 172 grams of holding force.
Slimline Rare Earth magnets such as this 1mm thick disc are highly regarded for the magnetic power they provide from their compact dimensions. They are perfect for inclusion in a myriad of complex industrial applications or small electronic or mechanical devices where they provide the simplicity of magnetic operation while also being totally reliable. These small magnets are also popular with craftspeople who are looking for a strong means of magnetic attachment without the disruption of physically bulky additions. Magnets are inherently brittle and due to the thin profile of these magnets, it is important that they are handled with care.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
