Neodymium Disc Magnet - 8mm x 1mm | N50 | GOLD

Product code: D-D8H1-N50au

$1.35for 1 to 99 items
$1.14buy 100 to 999 itemsand save 15%
$1.01buy 1000+ itemsand save 25%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 8mm x 1mm | N50 | GOLD

Product Code D-D8H1-N50au
Pull Force* 0.5080 kg
Weight 3 gm
Style Rare Earth Disc magnet
Gauss 1758
Grade N50
Coating Gold (Au)
Direction of Magnetisation Through height
Dimensions Height:1mm, Diameter:8mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

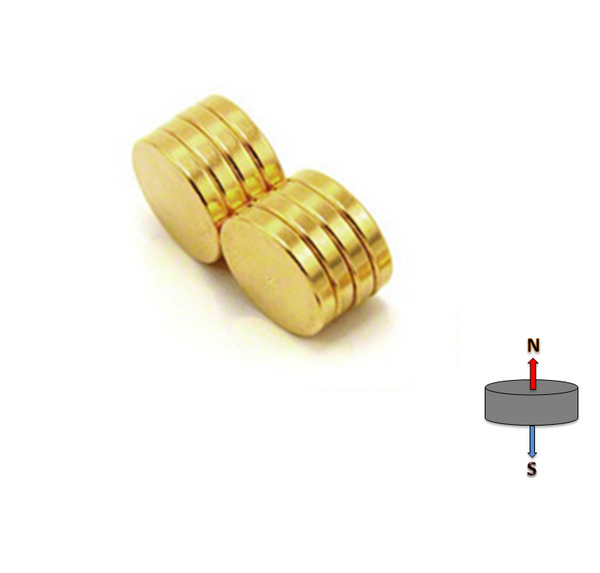

The N50 Grade Neodymium content beneath the protective gold-plated exterior gives this thin disc magnet an above-average pull force for its size. Surface Gauss reads 1758G and generates a maximum pull force of 0.508kg. The disc is magnetised through the 1mm thickness with North and South poles located at the flat, circular surfaces. This is the lowest height dimension in the AMF product range.


Uses for our rare earth disc magnets:


Neodymium Disc Magnet - 8mm x 1mm | N50 | GOLD (D-D8H1-N50au)

Grade
N50 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.4-1.46 N/A
Remanence Br(kGs)
14-14.6 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
374-406 N/A
Max Energy Product(BH)max(MGOe)
47-51 N/A
Grade N50 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.4-1.46 N/A
Remanence Br(kGs) 14-14.6 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 374-406 N/A
Max Energy Product(BH)max(MGOe) 47-51 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
