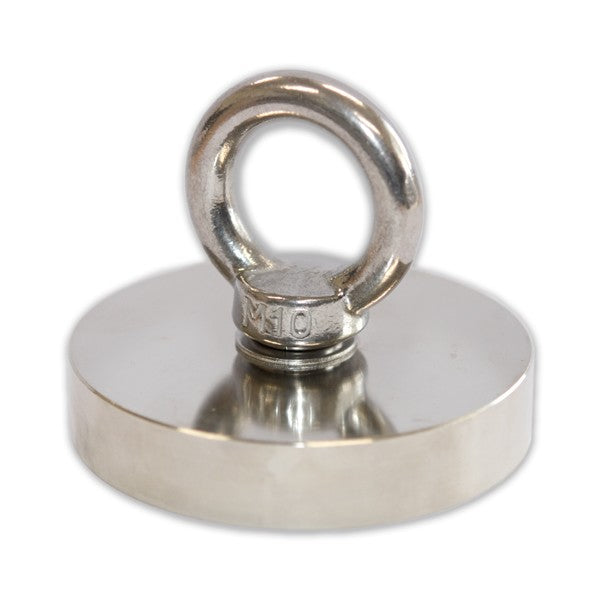

Neodymium Fishing Magnet with M10 Threaded Eyelet - 75mm diameter x 62mm

Product code: AMFYPLNM75

$144.84for 1 to 9 items
$127.35buy 10 to 99 itemsand save 12%
$114.74buy 100+ itemsand save 20%

Prices are GST Incl.

Volume pricing available on request

Neodymium Fishing Magnet with M10 Threaded Eyelet - 75mm diameter x 62mm

Rated 5.0 out of 5
Based on 3 reviews
Product Code AMFYPLNM75
Pull Force* 200kg
Weight 560 gm
Style Rare Earth Fishing Magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:62mm, Diameter:75mm
*Measured against up to 10mm mild steel.
Neodymium Fishing Magnet with M10 Threaded Eyelet - 75mm diameter x 62mm

Magnetic Product Description:

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 200kg and a weight of 560 grams. It has a diameter of 75mm, a total height of 62m, and a magnet housing thickness of 15mm. This Neodymium Pot Magnet has a M10 thread, and comes with a M10 eyelet. It is identified by the AMF magnet part number AMFYPLNM75.


Uses for Rare Earth Threaded Eyelet Pot Fishing Magnets:

AMF has a range of Holding magnets that are also practical and fun tools for both retrieval purposes and for those who enjoy magnetic “fishing”. This pastime has recently grown in popularity worldwide and requires a rope, preferably nylon and of significant length, to be attached to the eyelet. The magnet is then used to drag the depths of lakes, ponds, dams, rivers or creeks in order to attract and recover metal objects which, if not valuable, maybe at least of historical interest. This unusual hobby has the added benefit of decontaminating polluted waterways that have been previously regarded by ill-informed citizens as dumping grounds for broken or unwanted metallic household items. Improving the environment and aquatic conditions for local marine life is an inspiring consequence of this interesting pastime that can have environmental and sometimes financial benefits. This product includes two Stainless Steel M10 Eyelets that make it easy to cast and retrieve the magnet. Attaching two ropes also helps to negotiate snags that lie beneath the surface.

Neodymium Fishing Magnet with M10 Threaded Eyelet - 75mm diameter x 62mm (AMFYPLNM75)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 3 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
3 Reviews
Reviewed by Les
I recommend this product
Rated 5 out of 5
Review posted

Just what I always wanted

So far I have only used mine on an old wood burning pile on my property. So many nails! Where do they all come from? The sheep are happy as well. Next trip to the coast I have a few piers and wharf's in mind. Great product, great service!

Loading...
Was this helpful?
Reviewed by Luke
I recommend this product
Rated 5 out of 5
Review posted

Fantastic customer service & shipping

Super fast shipping of the perfectly packed and secured magnet - no risk of damage in transit. Powerful magnet that works exactly as expected and high quality eye bolt.

Loading...
Was this helpful?
Reviewed by Pete
I recommend this product
Rated 5 out of 5
Review posted

Great magnet, Great service. Thank you!

I use this magnet on a farm to pick up nails & screws from a burn pile. It works very well, Its magnetism is so powerful. Great quality.

Loading...
Was this helpful?
Neodymium Fishing Magnet with M10 Threaded Eyelet - 75mm diameter x 62mm

Magnetic Product Description:

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 200kg and a weight of 560 grams. It has a diameter of 75mm, a total height of 62m, and a magnet housing thickness of 15mm. This Neodymium Pot Magnet has a M10 thread, and comes with a M10 eyelet. It is identified by the AMF magnet part number AMFYPLNM75.


Uses for Rare Earth Threaded Eyelet Pot Fishing Magnets:

AMF has a range of Holding magnets that are also practical and fun tools for both retrieval purposes and for those who enjoy magnetic “fishing”. This pastime has recently grown in popularity worldwide and requires a rope, preferably nylon and of significant length, to be attached to the eyelet. The magnet is then used to drag the depths of lakes, ponds, dams, rivers or creeks in order to attract and recover metal objects which, if not valuable, maybe at least of historical interest. This unusual hobby has the added benefit of decontaminating polluted waterways that have been previously regarded by ill-informed citizens as dumping grounds for broken or unwanted metallic household items. Improving the environment and aquatic conditions for local marine life is an inspiring consequence of this interesting pastime that can have environmental and sometimes financial benefits. This product includes two Stainless Steel M10 Eyelets that make it easy to cast and retrieve the magnet. Attaching two ropes also helps to negotiate snags that lie beneath the surface.

Neodymium Fishing Magnet with M10 Threaded Eyelet - 75mm diameter x 62mm (AMFYPLNM75)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
