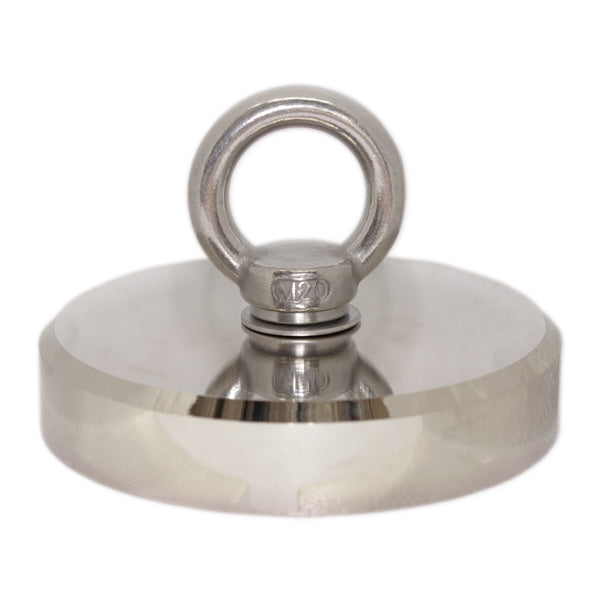

Neodymium Fishing Magnet with M20 Threaded Eyelet - 160mm diameter x 110mm

Product code: AMFYPLNM160

$999.95for 1 to 9 items
$890.00buy 10 to 99 itemsand save 10%
$790.00buy 100+ itemsand save 20%

Prices are GST Incl.

Volume pricing available on request

Neodymium Fishing Magnet with M20 Threaded Eyelet - 160mm diameter x 110mm

Product Code AMFYPLNM160
Pull Force* 1000Kg
Weight 5600 gm
Style Rare Earth Fishing Magnet
Coating Nickel (NiCuNi)
Dimensions Height:110mm, Diameter:160mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This Rare Earth Threaded Eyelet Pot Magnet has a pull force of 1000kg and a weight of 5.6 kilograms. It has a diameter of 160mm, a total height of 110mm, and a magnet housing thickness of 32mm. This Neodymium Pot Magnet has a M20 thread, and comes with a M20 eyelet. It is identified by the AMF magnet part number AMFYPLNM160.


Fishing Magnets Dimensions



This supersized Neodymium Fishing Magnet needs to be HANDLED WITH EXTREME CAUTION and is not for inexperienced operators, amateurs or hobbyists. It is mainly used by commercial salvage and recovery professionals and by maintenance teams in the Mining and Resources industries. Underwater salvage teams use this giant magnet to locate and retrieve large metal items remotely, with a reduced risk of injury to employees and in a very cost-effective manner. Exploration teams in the Mining and Resource sectors can also retrieve broken drills or other metal fragments from bores or wells safely and efficiently, allowing them to resume their important work with minimal downtime.

Experienced fossickers on dry land have also been known to incorporate these magnets into an assembly that can be dragged around rocky desert landscapes in their quest to find iron-laden meteorites that have fallen from outer space and are otherwise very difficult to identify. Meteorites can be millions of years old and can reveal important information about the evolution of the cosmos to Astrophysicists and the broader scientific community. Magnets like this one can attract these ferrous space rocks over large areas which saves time, effort and greatly increases the strike rate for finding this highly prized material.

Neodymium Fishing Magnet with M20 Threaded Eyelet - 160mm diameter x 110mm (AMFYPLNM160)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A
