Neodymium Magnetic Fixing Plate – D55mm | M10 Thread x H25mm
Product code: MFP10
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

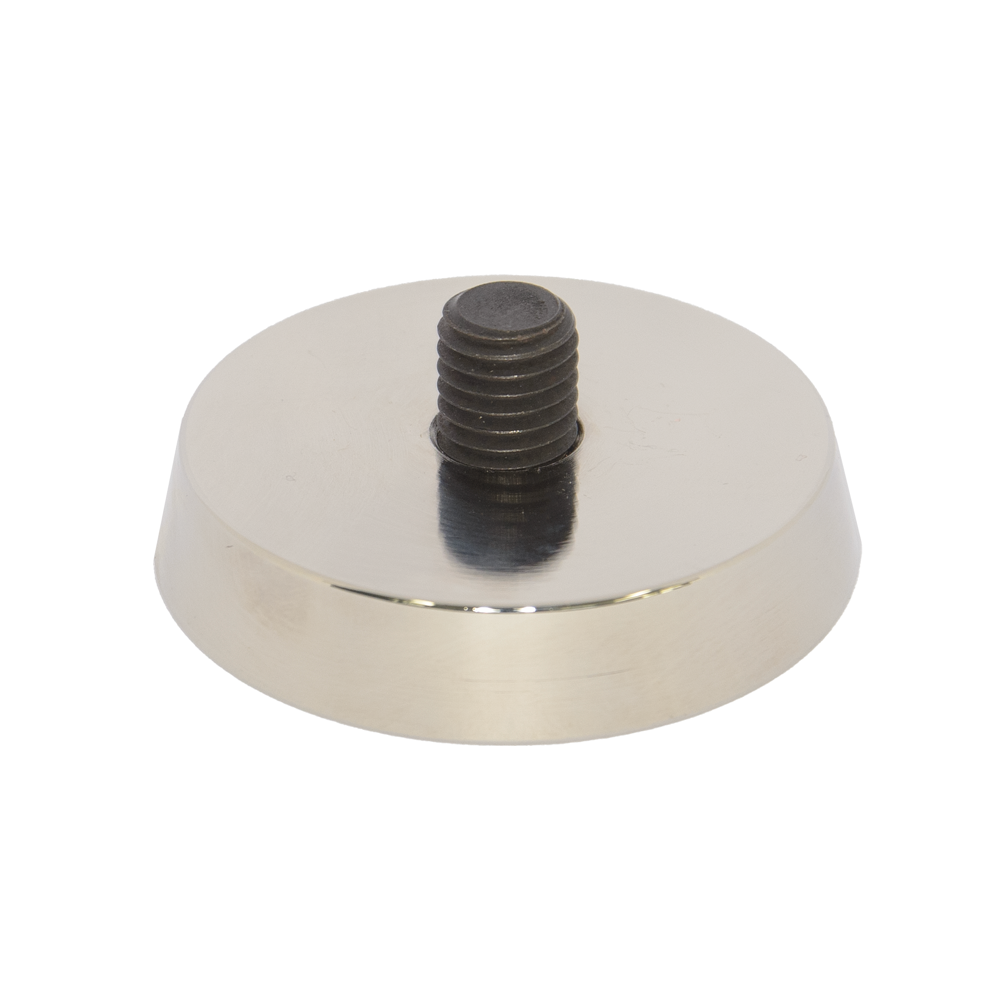

This Neodymium Magnetic Fixing Plate, with a 55mm diameter and 65kg pull force, is perfect for securing sockets onto steel formwork. Known as the AMF Part Number MFP10, it's equipped with an M10 removable thread for easy attachment.
Uses for our Neodymium Magnetic Plates:
These Neodymium Magnetic Fixing Plates are perfect for industrial uses, thanks to their superb strength and generous surface area. Use them to magnetically secure lifting sockets to steel formwork. With its mighty permanent pull-force, this Rare Earth Magnetic Fixing Plate, featuring a diameter of 55mm and a thickness of 10mm, along with an M10 male thread, offers a whopping pull force of 65kg, reliably anchoring your product in place.
The Neodymium Magnetic Fixing Plate is essential for attaching lifting sockets to steel formwork during the prefabricated concrete panel pouring process. This allows for effortless and secure lifting, transportation, and positioning of precast materials on the construction site. The lightly oiled contact area ensures easy removal and reusability of the plate.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
