Neodymium Magnetic Fixing Plate D90 M36 Thread

Product code: MFP36

$104.44for 1 to 9 items
$96.60buy 10 to 99 itemsand save 7%
$87.03buy 100+ itemsand save 16%

Prices are GST Incl.

Volume pricing available on request

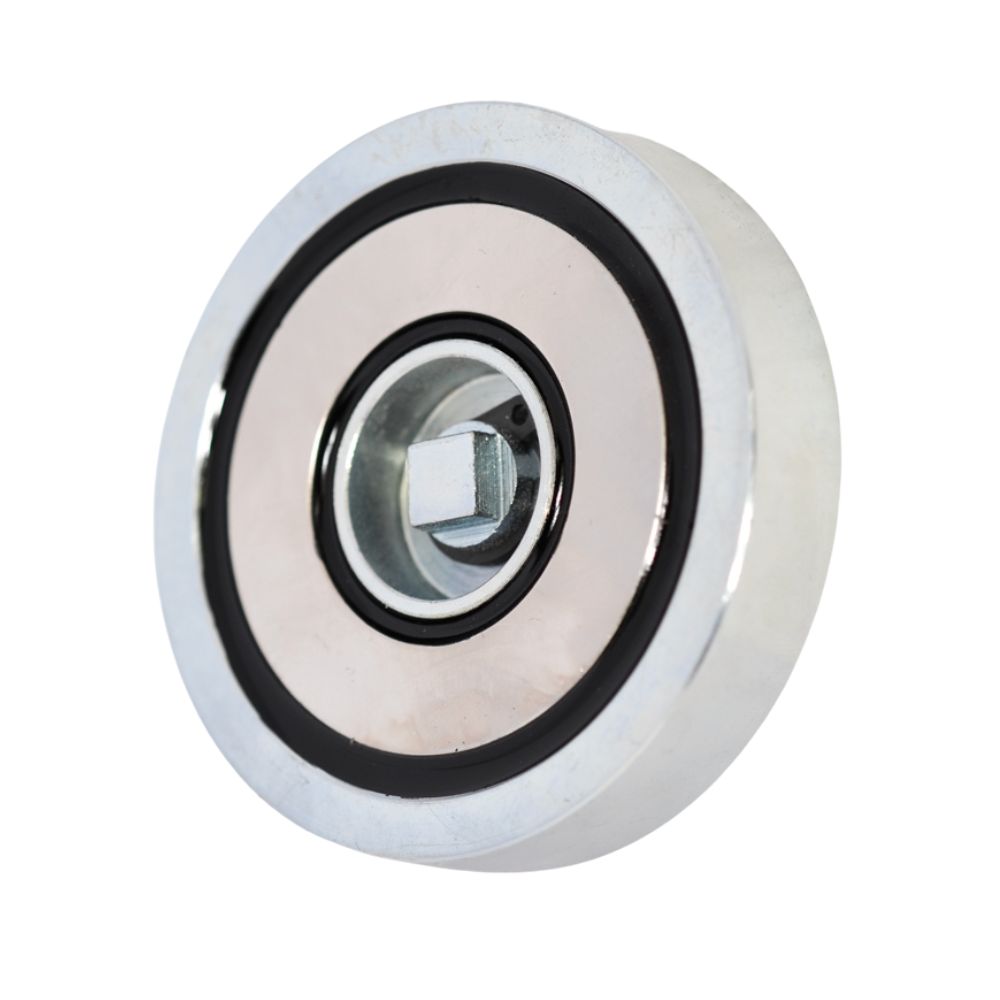

Neodymium Magnetic Fixing Plate D90 M36 Thread

Product Code MFP36
Pull Force* 120kg
Weight 400 gm
Style Magnetic Fixing Plate
Coating Zinc
Dimensions Thickness:12mm, Diameter:90mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

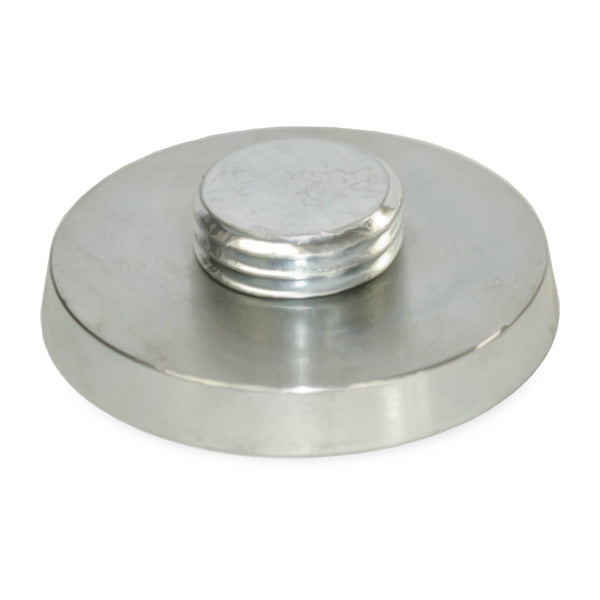

This Neodymium Magnetic Plate is used to fix the sockets to steel formwork. It has a diameter of 90mm with M36 thread, a pull force of 120kg and is identified by AMF Part Number MFP36.


Uses for our Neodymium Magnetic Plates:

In order to reduce construction times and improve quality, prefabricated concrete sections that use steel formwork are now common in civil works and infrastructure projects. Bridges, Overpasses and Railways are constructed in this way. This Fixing Plate device contains a ring of powerful Rare Earth magnets that keep anything attached to the plate in the required position on steel mouldings or forms while the concrete is poured around it. Voids that contain utilities, provide drainage or access points for lifting apparatus are created with this magnetic device that can be removed when the fabrication is completed. Lightly oiling the casing will ensure its easy removal and make it reusable. Various sizes are available to suit a range of concrete panels.

Neodymium Magnetic Fixing Plate D90 M36 Thread (MFP36)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
