Male Thread Neodymium Pot Magnet - Diameter 42mm x 20mm | 6mm Thread

Product code: AMFYPC42

$26.07for 1 to 9 items
$20.30buy 10 to 99 itemsand save 22%
$16.68buy 100+ itemsand save 36%

Prices are GST Incl.

Volume pricing available on request

Male Thread Neodymium Pot Magnet - Diameter 42mm x 20mm | 6mm Thread

Rated 5.0 out of 5
Based on 1 review
Product Code AMFYPC42
Pull Force* 68 kg
Weight 84 gm
Style Rare Earth male thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 9mm
*Measured against up to 10mm mild steel.
Male Thread Neodymium Pot Magnet - Diameter 42mm x 20mm | 6mm Thread

Magnetic Product Description:

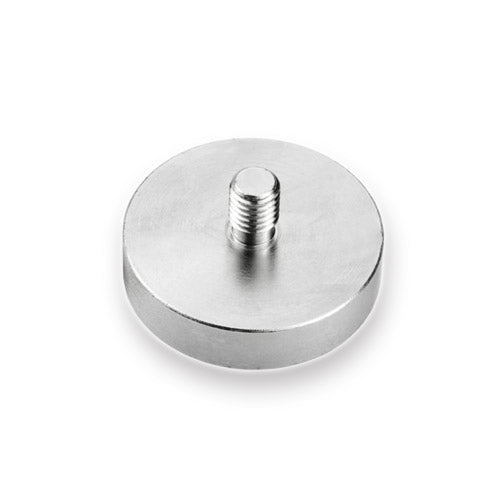

This rare earth male threaded pot magnet has a diameter of 42mm, a total height of 20mm and a magnet housing thickness of 9mm. It has a M6 thread with an external boss of 11mm. This male threaded magnet has a pull force of 68kg and a weight of 84g. It is identified by the Amf magnets part number AMFYPC42.


Uses for our rare earth male thread pot magnets:

This Male Thread Holding Pot magnet has a strong 68 kg holding capacity and is suitable for industrial applications. The projecting male threaded boss allows for simple attachment to non-ferrous materials using a washer and nut. Likewise, it can be incorporated as a component part into bespoke designs that are created for the customer’s particular application. The Neodymium magnet is protected by a mild steel cup which enhances the magnetic field at the working face of the magnet by projecting both poles through the operational side of the magnet. This increases the pull-force beyond the strength that a stand alone disc magnet would be capable of.

ModelNo. M H h Holding force(kg) Weight (g)
AMFYPC10 10 3 12 5 2.2 3.5
AMFYPC12 12 3 13 5 3.2 5
AMFYPC16 16 4 13 5 5.5 7.5
AMFYPC20 20 4 15 7 9 16
AMFYPC25 25 5 17 8 22 30
AMFYPC32 32 6 18 8 34 45
AMFYPC36 36 6 18 8 41 57
AMFYPC42 42 6 & 8 20 9 68 84
AMFYPC48 48 8 24 11.5 81 130
AMFYPC60 60 8 30 15 113 254
AMFYPC75 75 10 34 15 164 550

Male Thread Neodymium Pot Magnet - Diameter 42mm x 20mm | 6mm Thread (AMFYPC42)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Waterway C.
I recommend this product
Rated 5 out of 5
Review posted

Securing cables

Often we have a requirement to run cables along our crane booms and we can't drill or weld the boom. Magnets are a great way of setting non-destructive brackets.

Loading...
Was this helpful?
