Male Thread Neodymium Pot Magnet - Diameter 75mm x 34mm
Product code: AMFYPC75
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Male Thread Neodymium Pot Magnet - Diameter 75mm x 34mm
Magnetic Product Description:

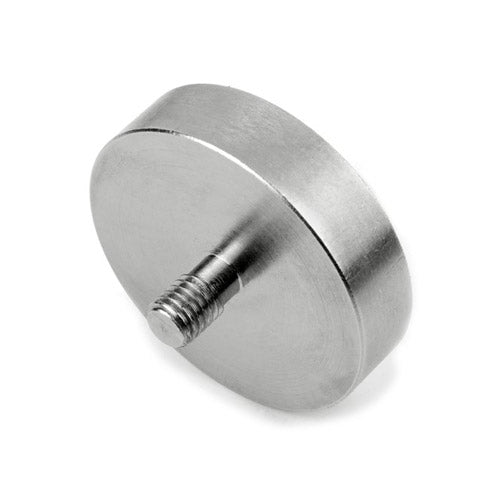

This rare earth male threaded pot magnet has a diameter of 75mm, a total height of 34mm and a magnet housing thickness of 15mm. It has an M10 thread with an external boss of 19mm. This male threaded magnet has a pull force of 164kg and a weight of 550 grams. It is identified by the AMF Magnetics part number AMFYPC75.
Uses for our Rare Earth male thread pot magnets:
These male threaded Neodymium holding pot magnets are the largest and strongest in our range. Their huge 164kg holding capacity is not for the faint hearted and should be handled with care. They are ideal for industrial applications where a large pull-force or holding strength is suitable. The magnet is housed in a mild steel cap protecting the magnet from damage such as chipping or cracking during use. This steel case also acts to enhance the magnetic power as the magnetic field curves around the inside of the steel cup and both poles are projected through the working face of the magnet. Due to this protective steel cover, Pot Magnets are essentially a single sided magnet.
| Product Code | DØ (mm) | M (mm) | H (mm) | h (mm) | Thread Pitch (mm) | Holding force (kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 0.5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 0.5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 0.7 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 0.7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 0.8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 1 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 1 | 41 | 57 |
| AMFYPC42 | 42 | 6 | 20 | 9 | 1 | 68 | 84 |
| AMFYPC42/8 | 42 | 8 | 20 | 9 | 1.25 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 1.25 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 1.25 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 1.50 | 164 | 550 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
