Neodymium Rubber Coated Female Thread Pot Magnet with Handle | 43mm dia. x 60mm

Product code: RCND43FH

$13.50for 1 to 9 items
$11.64buy 10+ itemsand save 13%

Prices are GST Incl.

Volume pricing available on request

Neodymium Rubber Coated Female Thread Pot Magnet with Handle | 43mm dia. x 60mm

Rated 4.3 out of 5
Based on 3 reviews
Product Code RCND43FH
Pull Force* 9kg
Weight 45 gm
Style Neodymium Rubber Coated Magnet with Handle
Coating Santoprene Rubber
Dimensions Height:60mm, Diameter:43mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

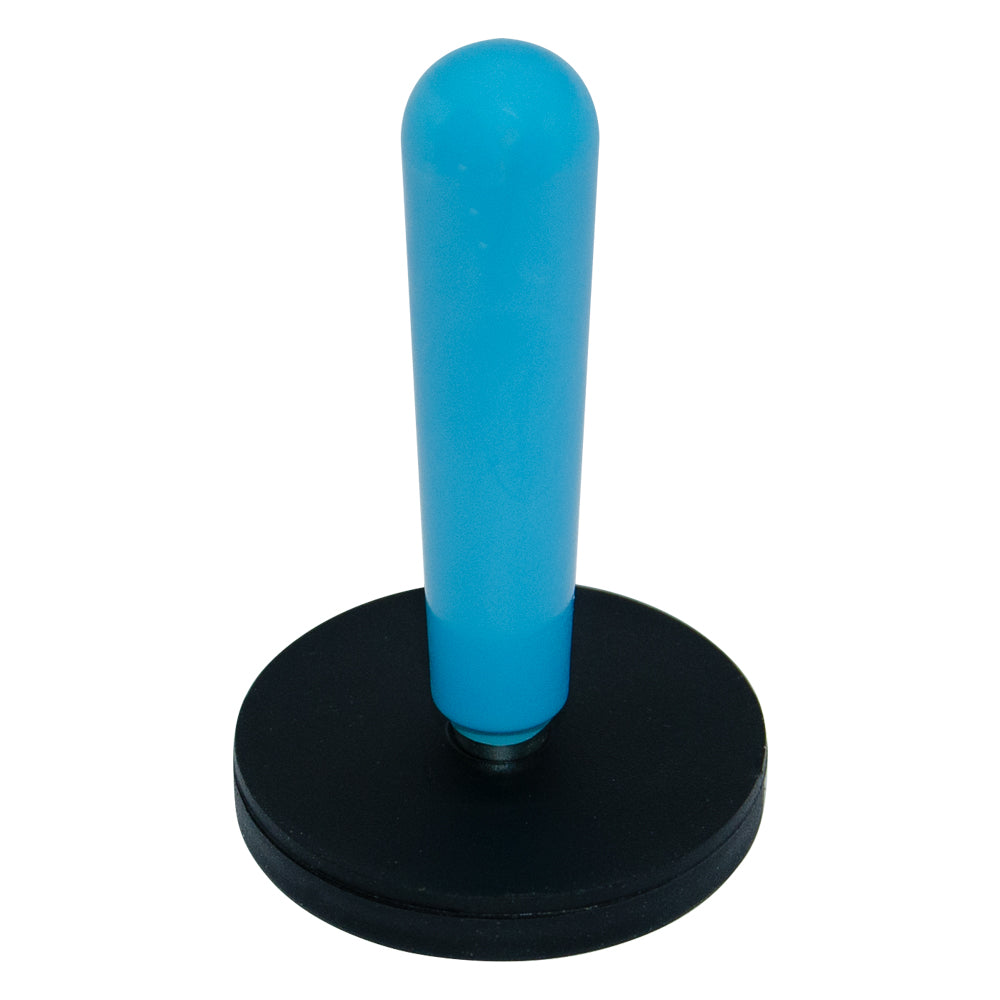

This 43mm dia. rubber coated Neodymium (NdFeB) magnet has a Santoprene rubber coating which protects delicate surface areas. It has M3 female thread and a 50mm long screw-in handle. This Rare Earth magnet weighs 45 grams, has a pull force of 9kg, and is identified by the AMF magnet part number RCND43FH.


Uses for our Rubber Coated Pot Magnet with Handle:

Magnetic tools fitted with handles make detaching the powerful tool quick and easy. They are excellent for applications where items need to be magnetically attached and then regularly removed and relocated. This is often the case around magnetic whiteboards and when signage or labelling on products or storage areas need to be regularly changed. This tool contains several Neodymium disc magnets that are arranged for maximum holding ability while the handle attachment makes the magnetic bond a lot easier to break when removal is required. The entire base, where contact occurs, is covered in soft Santoprene rubber that prevents scratches and damage to painted surfaces while also giving the tool excellent resistance to corrosion and the ability to endure outdoor weather conditions. The handle easily unscrews when it is no longer required.

Neodymium Rubber Coated Female Thread Pot Magnet with Handle | 43mm dia. x 60mm (RCND43FH)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 4.3 out of 5
Based on 3 reviews
  • 5 Stars
    2 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    1 Review
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
67% of reviewers would recommend this product to a friend
3 Reviews
Reviewed by Mark
I recommend this product
Rated 5 out of 5
Review posted

Great Product

Great product works well.

Loading...
Was this helpful?
Reviewed by Trish S.
I recommend this product
Rated 5 out of 5
Review posted

Excellent

Thank you for you excellent customer service!

Loading...
Was this helpful?
Reviewed by Ken W.
Rated 3 out of 5
Review posted

Average product

We found the rubber coated magnets did not have the strength when attached to metal that was advertised to hold up portable hangers and other items for our camper van. Appear well made but just not the magnetic strength required.

AMF Reply: Hi Ken, thank you for your review! The magnets need to be adhered to at least 3mm thick ferrous metal in order for it to fulfil it's 9kg pull force in your camper van.

Loading...
Was this helpful?
