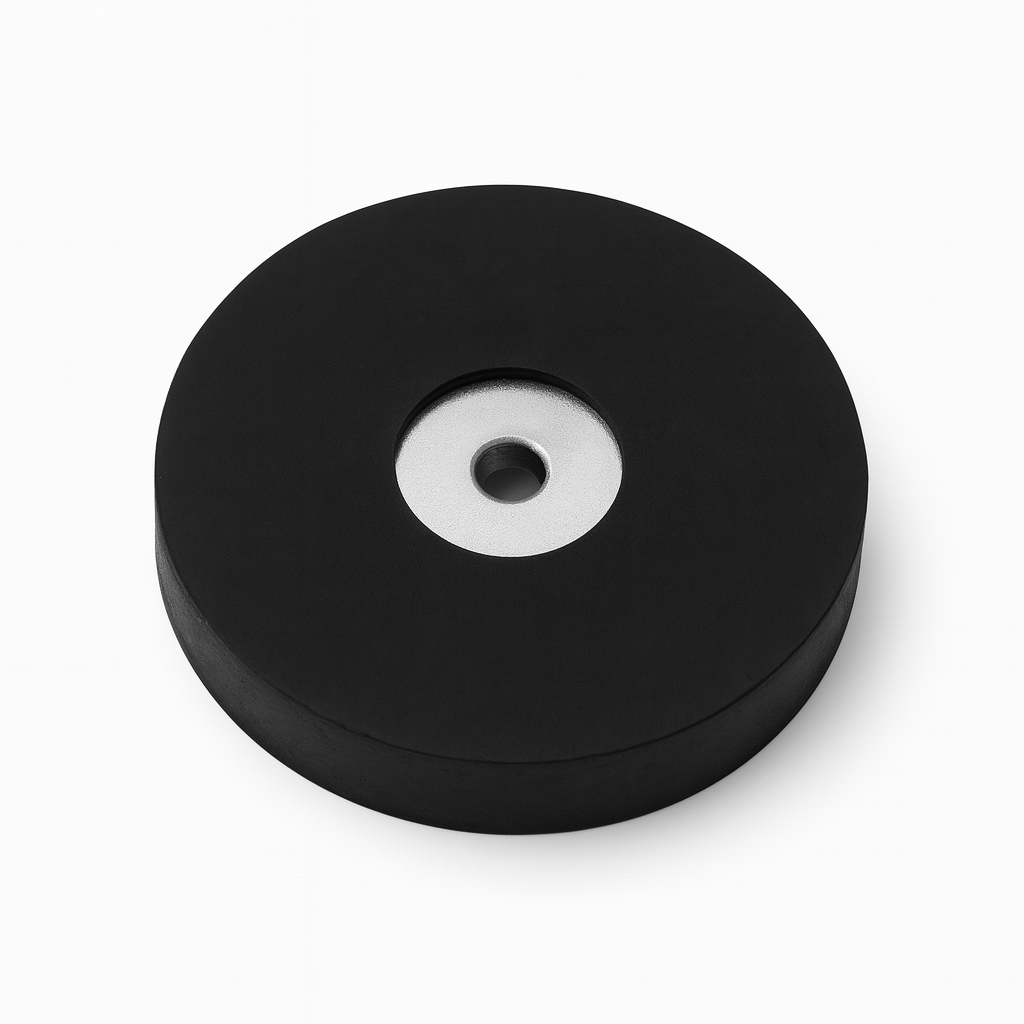

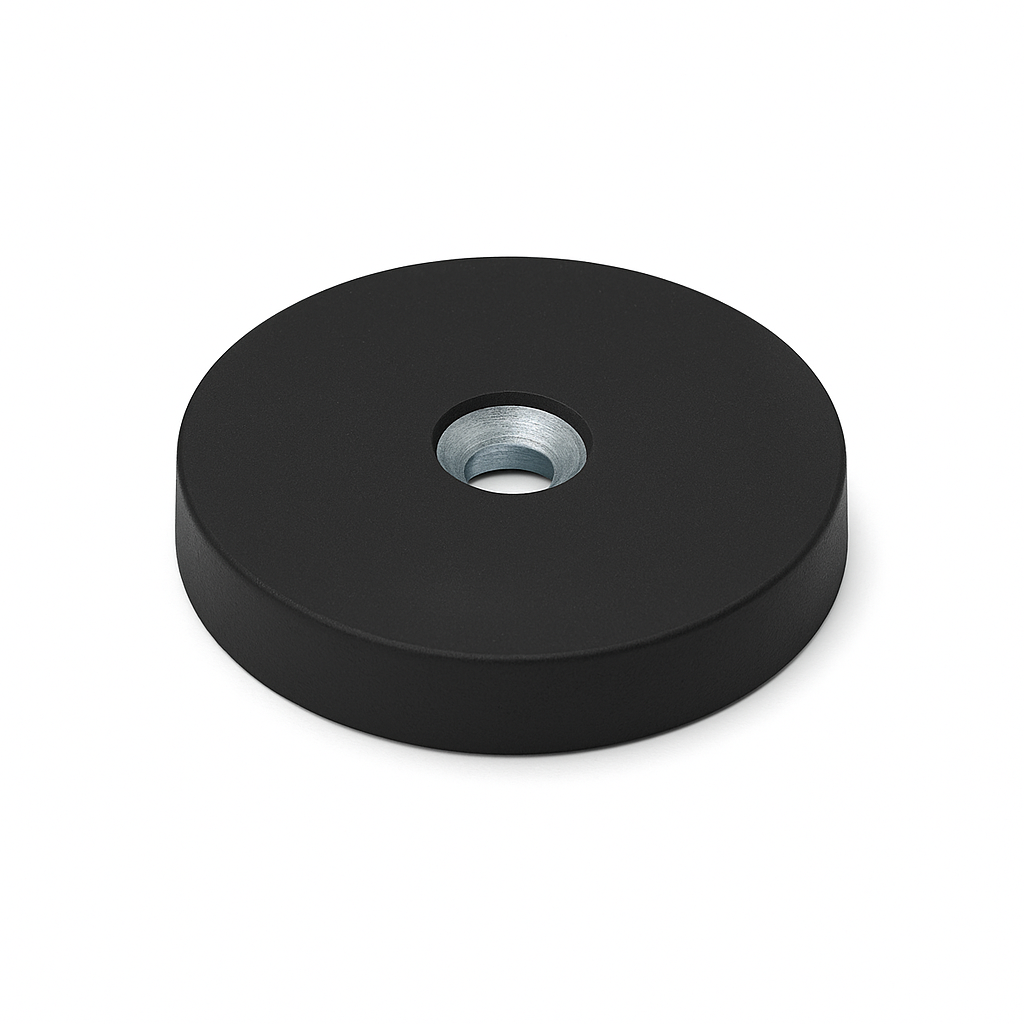

Rubber Coated Neodymium Pot Magnet – (D) 43mm x (H) 7mm | Countersunk 4.5mm Hole
Product code: RCND43A
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Enhance your fixing solutions with this Rubber Coated Neodymium Pot Magnet (43mm diameter x 7mm height), engineered for superior holding power and durability. With a centre 4.5mm countersunk hole, this magnet is easy to mount using flathead screws, making it ideal for both industrial and DIY applications. Despite its compact size, it delivers a strong 9kg pull force, ensuring reliable performance in demanding conditions. This product is identified by AMF Magnetics product code RCND43A.
Key Features:
-
Dimensions: 43mm diameter x 7mm height
-
Countersunk Hole: 4.5mm for flush mounting with screws
-
Magnetic Strength: 9kg pull force
-
Material: High-grade Neodymium (Rare Earth) magnet
-
Coating: Rubber-coated for durability, scratch-resistance, and extra grip
Benefits of Rubber Coating:
The rubber coating provides multiple advantages:
-
Protects delicate surfaces from scratches or marks
-
Improves grip by increasing friction on contact surfaces
-
Shields the magnet from corrosion, extending lifespan in outdoor or damp environments
-
Reduces the risk of chipping or cracking
Applications:
This versatile rubber coated pot magnet is widely used for:
-
Outdoor & Industrial Fixings: Securing signs, panels, and fixtures to steel surfaces
-
Automotive & Marine Use: Mounting accessories in vehicles, trailers, and boats
-
Workshops & Garages: Attaching tools, jigs, or equipment without drilling permanent holes
-
Display & Retail Settings: Discreetly holding promotional boards, signage, and displays in place
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
