Rubber Coated Neodymium Pot Magnet - D31mm x 30mm with Rubber-Lined P-Clamp

Product code: RCND31PR

$14.95 each for 1 to 9 items
$13.35buy 10 to 99 itemsand save 10%
$11.72buy 100+ itemsand save 21%
Total
$14.95

Not enough in stock. Please choose a lower quantity.

Minimum order quantity is 1

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Rubber Coated Neodymium Pot Magnet - D31mm x 30mm with Rubber-Lined P-Clamp

Product Code RCND31PR
Pull Force* 9kg
Weight 29 gm
Style Rare Earth rubber coated pot magnet
Grade N35
Direction of Magnetisation Axially magnetised
Dimensions Total Height:30mm, Diameter:31mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

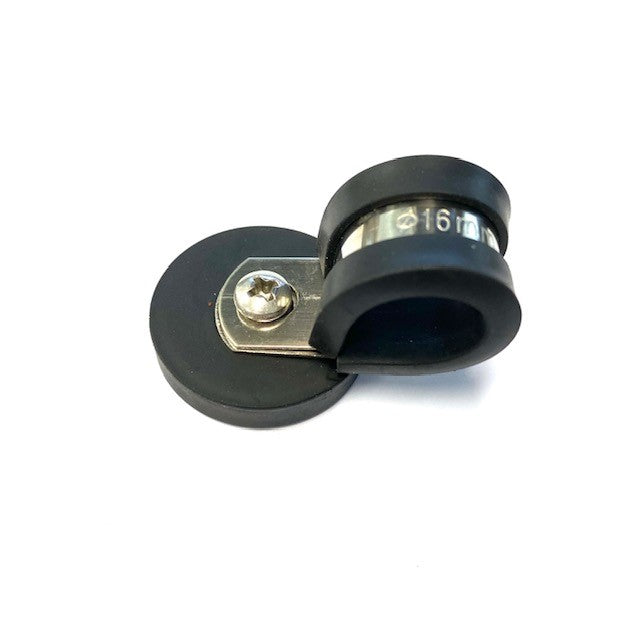

This Neodymium pot magnet, coated with rubber and measuring 31mm in diameter and 30mm in total height, is equipped with a rubber-lined P clamp. With a 16mm closed-loop and a pull force of 9kg, this mounting magnet, identified by the AMF Magnetics part number RCND31PR, is a rare-earth cable mount with superior strength and versatility.

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
