Self Adhesive Neodymium Disc Magnet - 10mm x 5mm N48 | Single-Sided 3M™ VHB™ F9472PC Adhesive
Product code: 20048C
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

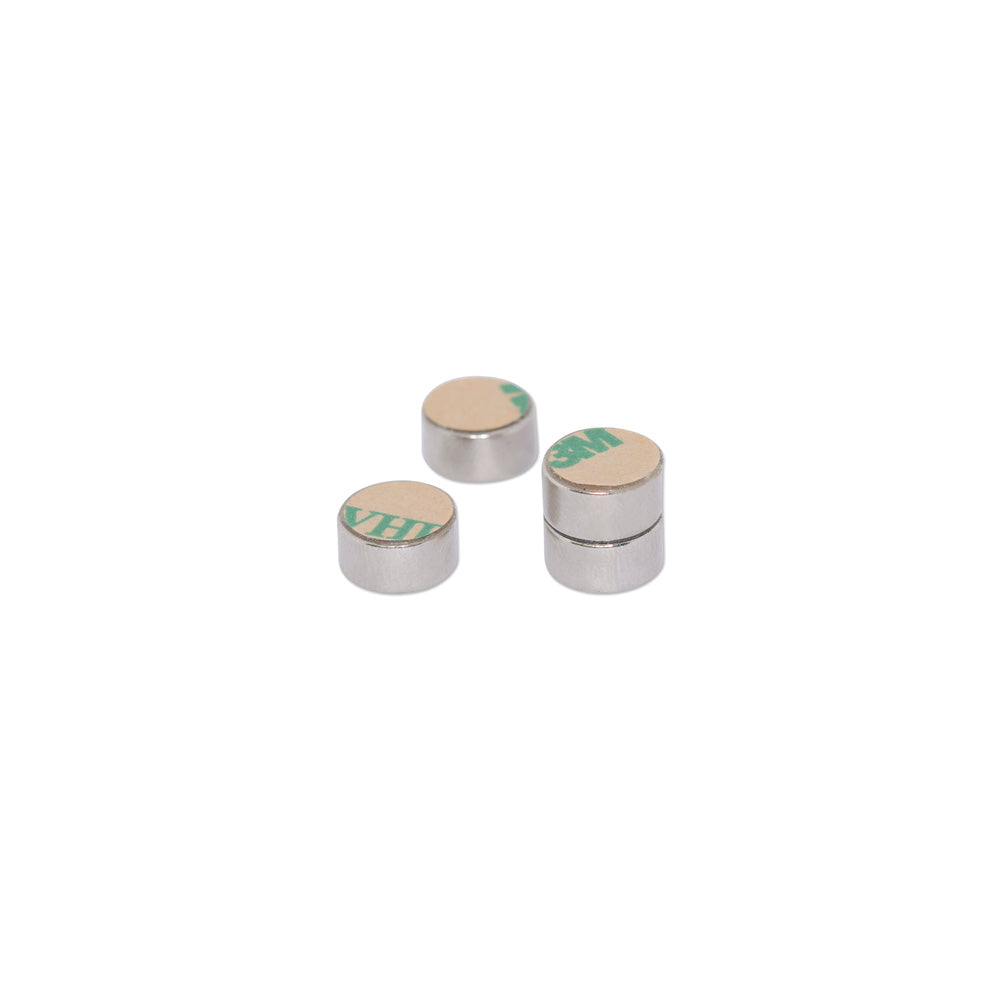

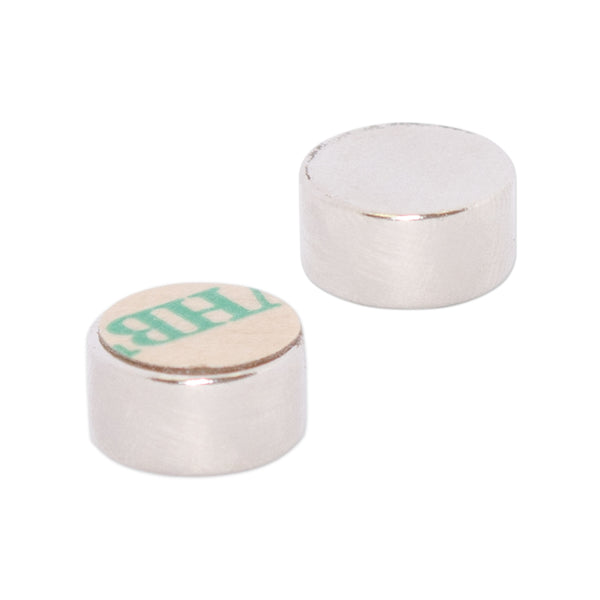

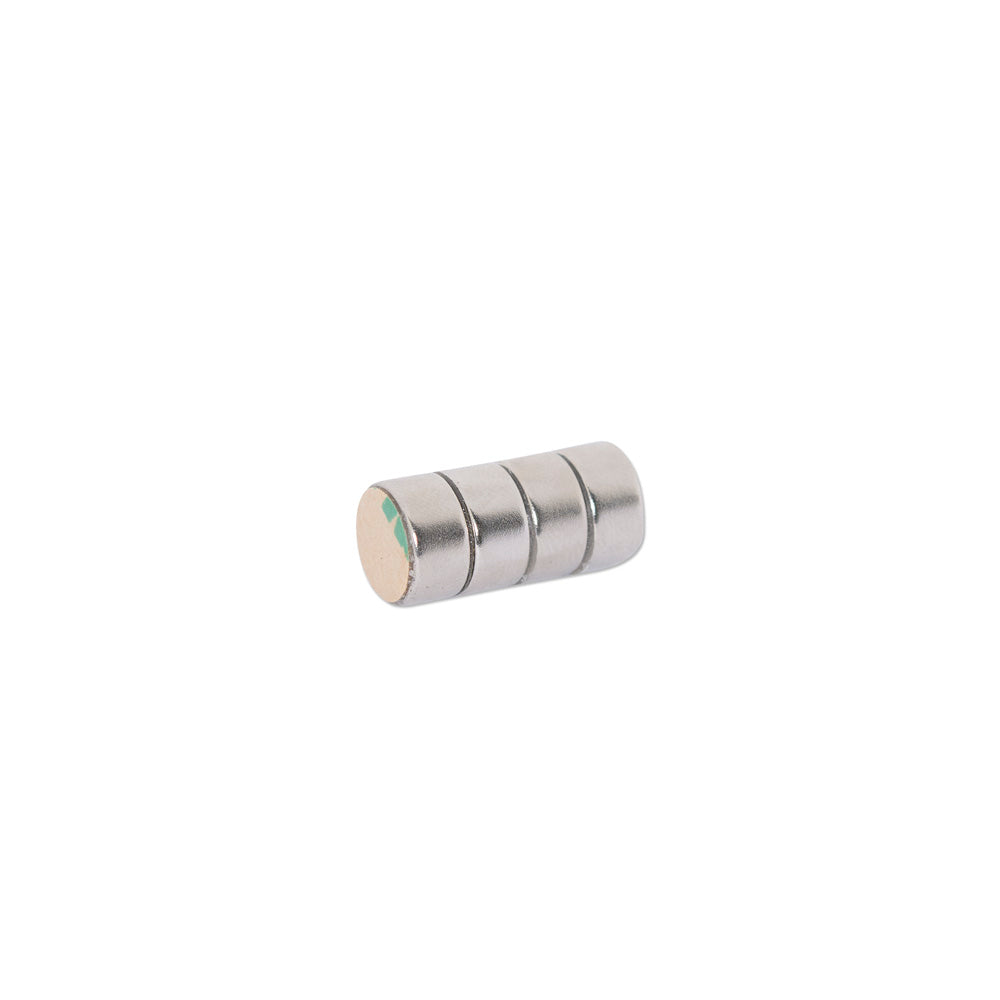

This Rare Earth Disc Magnet has a diameter of 10mm and a height of 5mm. It has a pull force of 3.36 kilograms. This product is identified by the AMF magnet part number 20048B.
This type of Self-Adhesive Neodymium Disc Magnet has 3M™ VHB™ (F9473PC) Adhesive on the NORTH side, providing excellent long-term holding power. This type of adhesive is superior for bonding metal trim, and bonding flexible circuits to aluminium rigidities or heat sinks. The adhesive is transparent and ideal for use in many interior and exterior applications. These magnets are commonly used in Industrial Joining and Metal Fabrication.
- 3M ™ VHB ™ (F9473PC) Adhesive is 0.25 mm 100MP high-performance acrylic with 107 microns 26 kg poly-coated kraft paper liner - printed.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
