Steel Capped Neodymium Holding Pot Magnet - 25mm (D) x 9mm (H) | Nickel Plated

Product code: 60242

$6.56for 1 to 9 items
$5.74buy 10 to 99 itemsand save 12%
$4.92buy 100+ itemsand save 25%
Total
$6.56

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

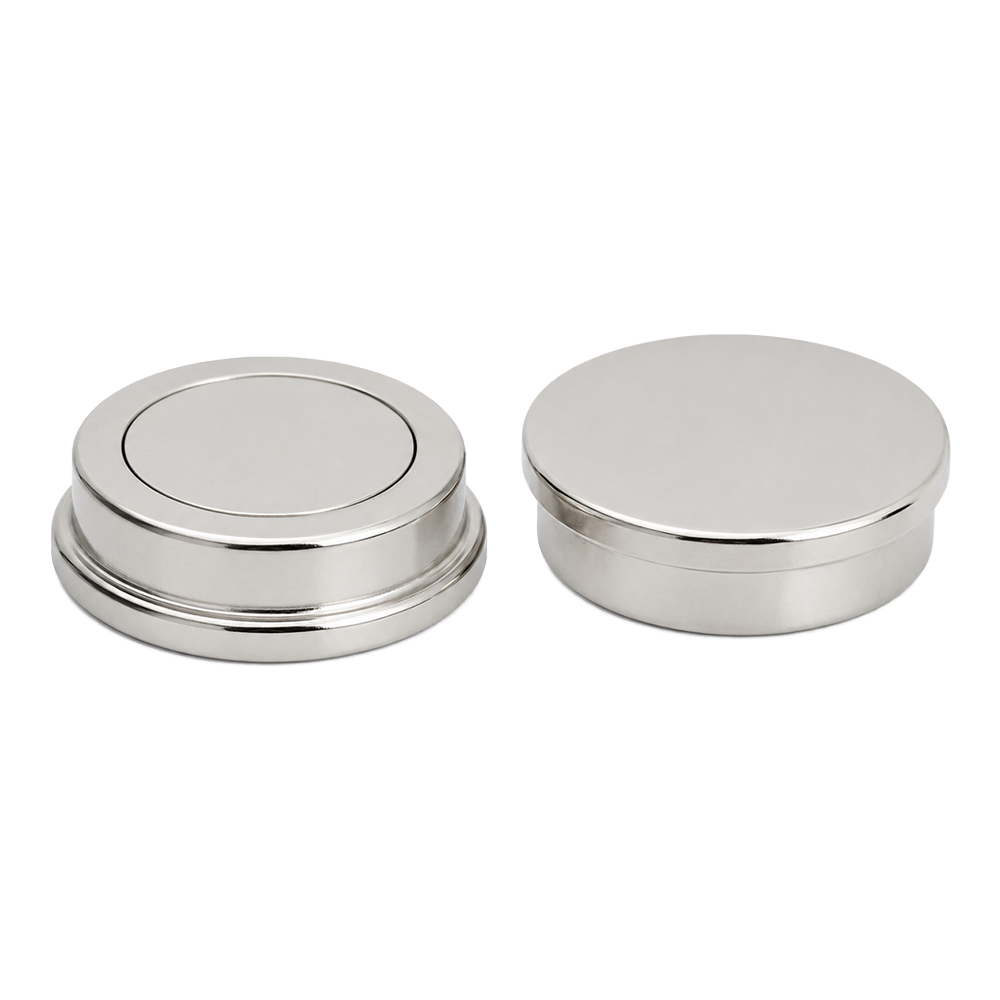

Steel Capped Neodymium Holding Pot Magnet - 25mm (D) x 9mm (H) | Nickel Plated

Product Code 60242
Coating Nickel Plated
Direction of Magnetisation Axially
Dimensions Diameter:20mm, Height:9mm

Steel Capped Neodymium Pot Magnet Product Description:

This Steel Capped Neodymium Pot Magnet is made from a powerful Rare Earth magnet encased in a nickel plated steel cap. The metal casing provides for superior durability, and protects the enclosed Rare Earth magnet from chipping or breaking. This magnet has a Diameter (D) of 25mm, and a Thickness (T) or Height (H) of 9mm. Our 25mm diameter Steel Capped Neodymium Holding Pot Magnet can hold approximately 15 pieces of A4 paper against 10mm mild steel. This product is identified by AMF Magnetics Product Code: 60242. Price is per singular magnet.

Uses for our Steel Capped Neodymium Pot Magnets:

Our 25mm diameter Steel Capped Neodymium Holding Pot Magnet can hold approximately 15 pieces of A4 paper against 10mm mild steel.

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
