Neodymium Pot Magnet - Diameter 20mm x 11mm | M6 Internal Thread

Product code: AMFYPH20

for 1 to 9 items
$6.79buy 10 to 99 itemsand save 17%
$5.46buy 100+ itemsand save 33%

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

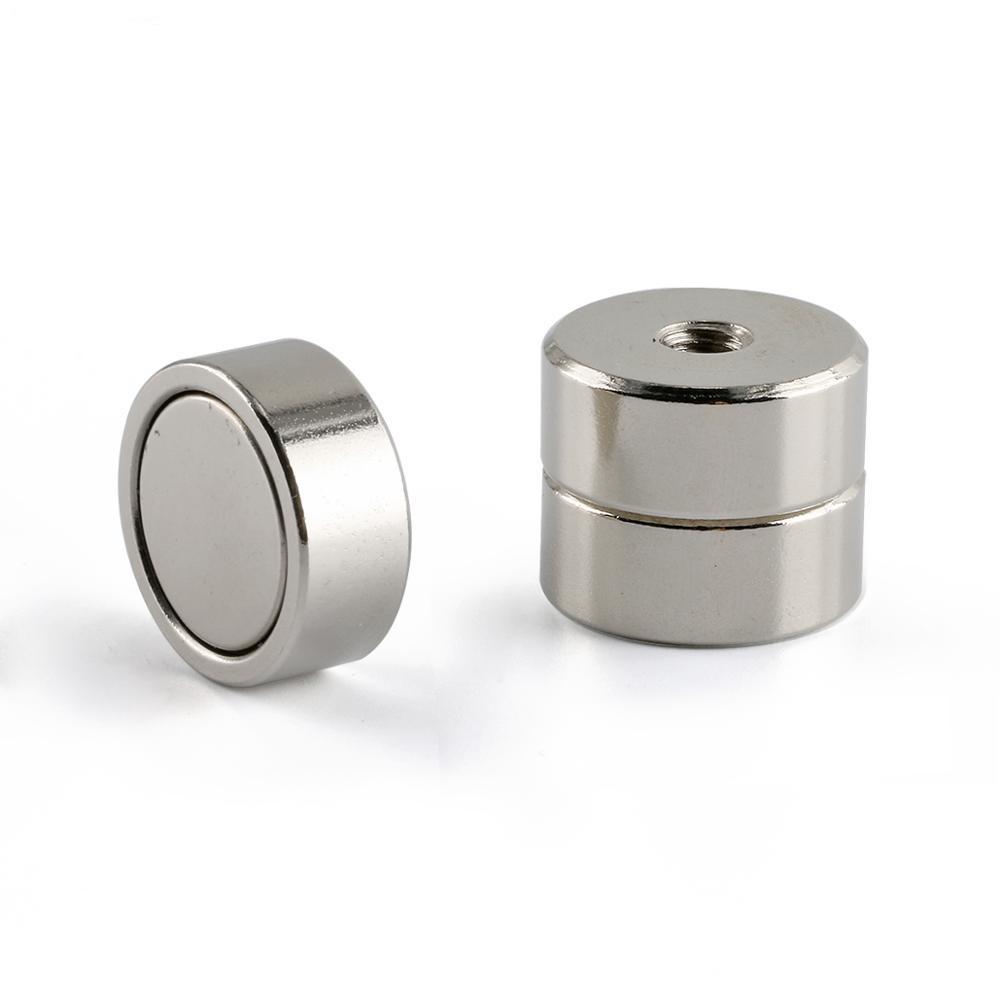

Neodymium Pot Magnet - Diameter 20mm x 11mm | M6 Internal Thread

Product Code AMFYPH20
Pull Force* 4 kg
Dimensions Height:11mm, Outside Diameter:20mm
Coating Nickel (Ni)
*Measured against up to 10mm mild steel.

AMF Magnetics supplies a wide range of magnetic pot holders. This strong industrial pot magnet is made from Neodymium Rare Earth Magnets, permanent magnets encased in nickel protective casing. Our holding pot magnets with female thread are high strength single sided magnets with powerful holding force. We stock multiple sizes and pull strengths. If you are looking for a stronger magnet we recommend our neodymium pot Magnet M8, which has a pull force of 80kg or our larger range of pot Magnets with pull forces between 2kg and 160kg!

This Neodymium Pot Magnet has a diameter of 20mm and a height of 11mm. It has an internal M6 thread, and a pull force of 4 kilograms. This product is identified by AMF Magnetics Product Code AMFYPH20 and is sold per magnet.

These strong internal threaded Neodymium Female Pot Magnets can be fastened to any material. These pot style magnets (except for Rubber - coated magnets) have a largely south pole orientation so two pot magnets do not attract to each other directly and will be slightly offset.

The pull strength of this female pot magnet is enhanced as the magnetic field is pushed to the front of the mild steel pot. Neodymium Pot Magnets make ideal holding and attachment devices. Attach these Pot Style magnets to any surface via a pre-drilled hole with internal thread. Attach to surfaces such as timber, alloy and plastic. This then allows those materials to be fixed in a permanent or temporary way to ferrous metal surfaces. Some common applications include - POS, Retail Signage, Warehouse and Industrial use, Doors, Gates and Latches along with Magnetic Fishing and Marine use!

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
