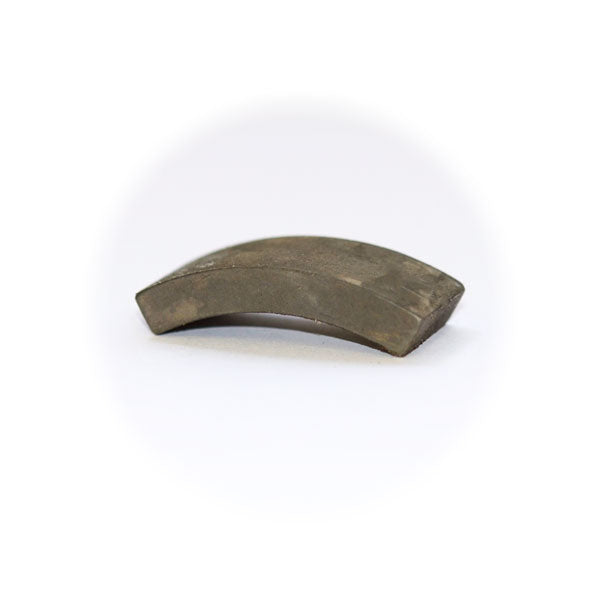

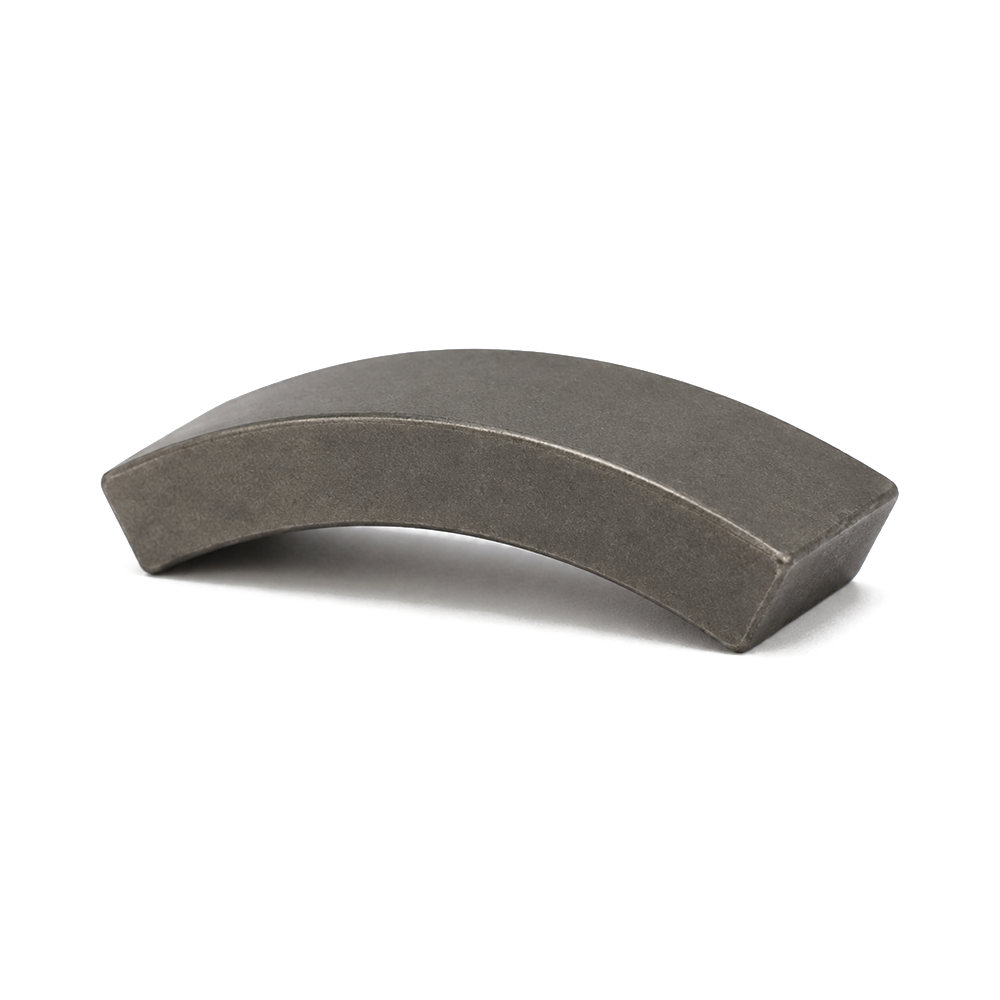

Neodymium Arc Magnet (59.5°) - 70.7mm(OD) x 60mm(ID) x 5mm

Product code: 88953

$10.40for 1 to 9 items
$9.20buy 10 to 99 itemsand save 11%
$8.50buy 100+ itemsand save 18%

Prices are GST Incl.

Volume pricing available on request

Neodymium Arc Magnet (59.5°) - 70.7mm(OD) x 60mm(ID) x 5mm

Rated 5.0 out of 5
1 Review
Product Code 88953
Weight 27 gm
Style Rare Earth Neo Arc Magnet
Grade N30M
Direction of Magnetisation Axially magnetised
Dimensions Outside Diameter:70.7mm, Inside Diameter:60mm, Thickness:5mm, Width:15mm
Neodymium Arc Magnet (59.5°) - 70.7mm(OD) x 60mm(ID) x 5mm

Magnetic Product Description:

This Neodymium Arc Magnet has an angle of 59.5°.  70.7mm outer diameter, and a 60mm inner diameter, a 5mm thickness and a width of 15mm.  It is identified by the AMF magnet part number 88953.


Uses for our Rare Earth Arc Magnets:

Never judge a book by its cover. Never judge a neodymium magnet by its arc.

These arcs may look like a specialist product with limited applications, however the opposite is true. They are instead one of the most widely used magnets of all. Housed in Direct Current motors these neodymium arc magnets provide the magnetic field to convert electrical current into mechanical power (force and movement). DC motors are durable and affordable technology.

Powering power tools with DC motors has put the means to build and renovate almost anywhere in the world. Lacking mains electricity you can generate electricity with a small, portable petrol powered generator. That’s pretty helpful. DC motors power many white goods like refrigerators and washing machines to reduce the drudgery from many of life’s necessary chores. That’s pretty helpful too.

When you’re listening to your favourite music or watching a good movie instead of hand washing your work clothes, neodymium arc magnets are sitting inside speaker systems to improve the signal (good sound) to noise (bad sound) ratio.

These arcs are also deployed in assemblies called magnetic couplings that operate like a clutch. This intuitive, smooth expression of force is used to transfer or regulate mechanical power. Inside liquid pumps and propeller systems magnetic power is expressed through a physical barrier separating the marine from the non-marine atmosphere, deleting the need for shaft seals which fatigue easily trying to bridge or mediate the two different environments. These neodymium arc magnets are handier than they look.

Smaller neodymium arc magnets are commonly used in DC motors, as sensors and in various hand crafts.

Neodymium Arc Magnet (59.5°) - 70.7mm(OD) x 60mm(ID) x 5mm (88953)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A
average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Jack
I recommend this product
Rated 5 out of 5
Review posted

excellent product

Very strong magnet, sufficient to use as a magnet for a fly wheel magneto to power a single cylinder engine, but has to be glued in position as there is no bolt hole to secure magnet.
