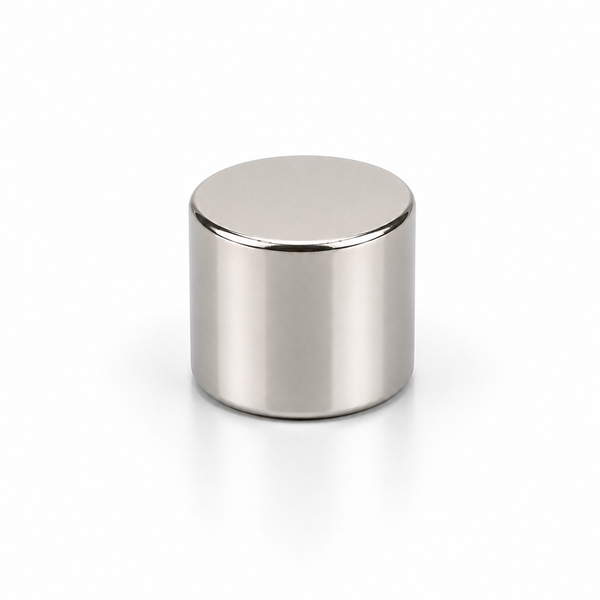

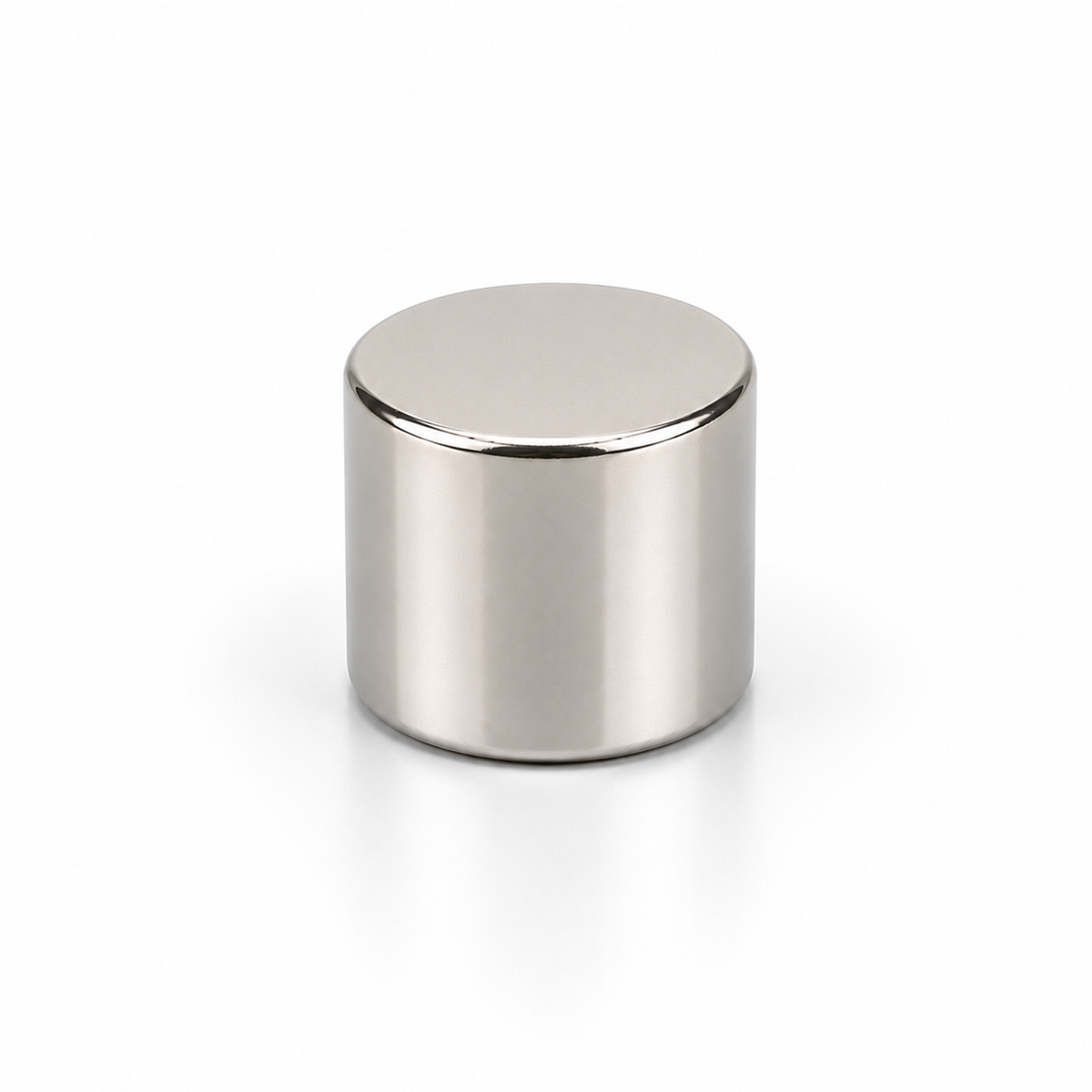

Neodymium Cylinder Magnet - 12.7mm x 12.7mm

Product code: 21020

$11.09for 1 to 9 items
$9.53buy 10 to 99 itemsand save 14%
$7.88buy 100+ itemsand save 28%

Prices are GST Incl.

Volume pricing available on request

Neodymium Cylinder Magnet - 12.7mm x 12.7mm

Rated 4.8 out of 5
Based on 4 reviews
Product Code 21020
Pull Force* 6 kg
Weight 12 gm
Style Neodymium Cylinder magnet
Gauss 5635
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:12.7mm, Diameter:12.7mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 12.7mm x 12.7mm

Magnetic Product Description:

This neo cylinder magnet has a diameter of 12.7mm and a height of 12.7mm, the imperial equivalent size of half an inch. It has a flux density reading of 5635 Gauss and a pull force of 6 kilos. Its part number is 21020.


Uses for our rare earth cylinder magnets:

Neodymium cylinder magnets are used across a broad range of industries: industrial supply and general engineering, educational equipment manufacturers, pump designers and many more.

Companies working with modern plastics turn flat sheets of plastic into three dimensional products. With the capabilities of modern printing technology many offer full turnkey services. Concept ideation, prototype development, production and delivery and installation of the equipment ready for operation.

Throughout this multi-faceted journey magnets including neodymium cylinder 12.7mmx12.7mm magnets and magnetism play very useful roles from start to finish. To take one example, concept ideation is the most crucial stage of development. Using magnetised work walls, in conjunction with cylinder magnets, stakeholders in the project are able to contribute from the very beginning, increasing ownership and commitment to the project.

Individuals working on individual computer screens cannot deliver the same organic and troubleshooting outcomes this old fashioned but effective collaborative method often produces. Magnetised work walls are an updated drawing board, the site of many great innovations.

With materials, images, symbols and words or phrases assembled beforehand, magnetic attachment is the simplest, quickest and most effective method of holding these items on a screen everyone can see and contribute to. Existing items can be easily slid apart to make way for other images and symbols to demonstrate previous issues and problems, or describe a new approach.

The shifting arrangement, held and released and re-held simply, quickly and unobtrusively, allows everyone to follow and critique how the project might best proceed. Ideas are mapped, navigated and issues addressed in a format that shifts as quickly as the ideas themselves come and go.

Modern digital screens are great for mapping out an existing approach, but they do not facilitate another’s contribution in a quick, effective way as simply sliding the segments or symbols into a different configuration to demonstrate strengths of another approach. Magnets allow complicated ideas and production processes to be communicated in a simpler more easily understood fashion to a wider audience.

The final configuration, once agreed and any objections overcome, can remain in place for the duration of the project as a reminder of stakeholder ownership, a reference point for workers wanting to confirm their role in the project and as proof positive to a visiting client that there is indeed a plan.

Neodymium Cylinder Magnet - 12.7mm x 12.7mm (21020)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 4.8 out of 5
Based on 4 reviews
  • 5 Stars
    3 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
4 Reviews
Reviewed by John J.
I recommend this product
Rated 5 out of 5
Review posted

Good strong magnets

Ok firstly if you plan on smashing these together they will chip. For fixed applications they are super strong. I used them to locate metal studs behind plasterboard wall and worked perfectly although something plasticized would be better. Will buy again. Thanks!

AMF Reply: thank you for your feedback John! Check out our Supa Dupa Studfinder (Product code: STUDFINDER) for next time.

Loading...
Was this helpful?
Reviewed by Susan F.
I recommend this product
Rated 5 out of 5
Review posted

Very effective product

I purchased this magnet to use in gemstone identification. It is the perfect size and strength. Thank you

Loading...
Was this helpful?
Reviewed by John
I recommend this product
Rated 4 out of 5
Review posted

Fun

On arrival my kids were immediately testing the limits of the magnets and getting them to fly together. A part of the magnet chipped off, but it still works. we have used it for a monopole motor which was very cool! Then my son dunked it in iron filings. That wasn't so fun..

Loading...
Was this helpful?
Reviewed by Michal
I recommend this product
Rated 5 out of 5
Review posted

Excellent

The product is excellent. Surpassed our expectations.

Delivery was super fast. Definitely will use AMF Magnetics again!!

Loading...
Was this helpful?
