Neodymium Disc Magnet - 6mm x 1.5mm | Gold Coating | North Marked

Product code: 20079

$1.17for 1 to 99 items
$0.95buy 100 to 999 itemsand save 18%
$0.75buy 1000+ itemsand save 35%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 6mm x 1.5mm | Gold Coating | North Marked

Rated 5.0 out of 5
Based on 2 reviews
Product Code 20079
Pull Force* .400kg
Weight 1 gm
Style Rare Earth Disc magnet Gold
Gauss 2818
Grade N38
Coating Gold
Direction of Magnetisation Axially magnetised
Dimensions Height:1.5mm, Diameter:6mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 6mm x 1.5mm | Gold Coating | North Marked

Magnetic Product Description:

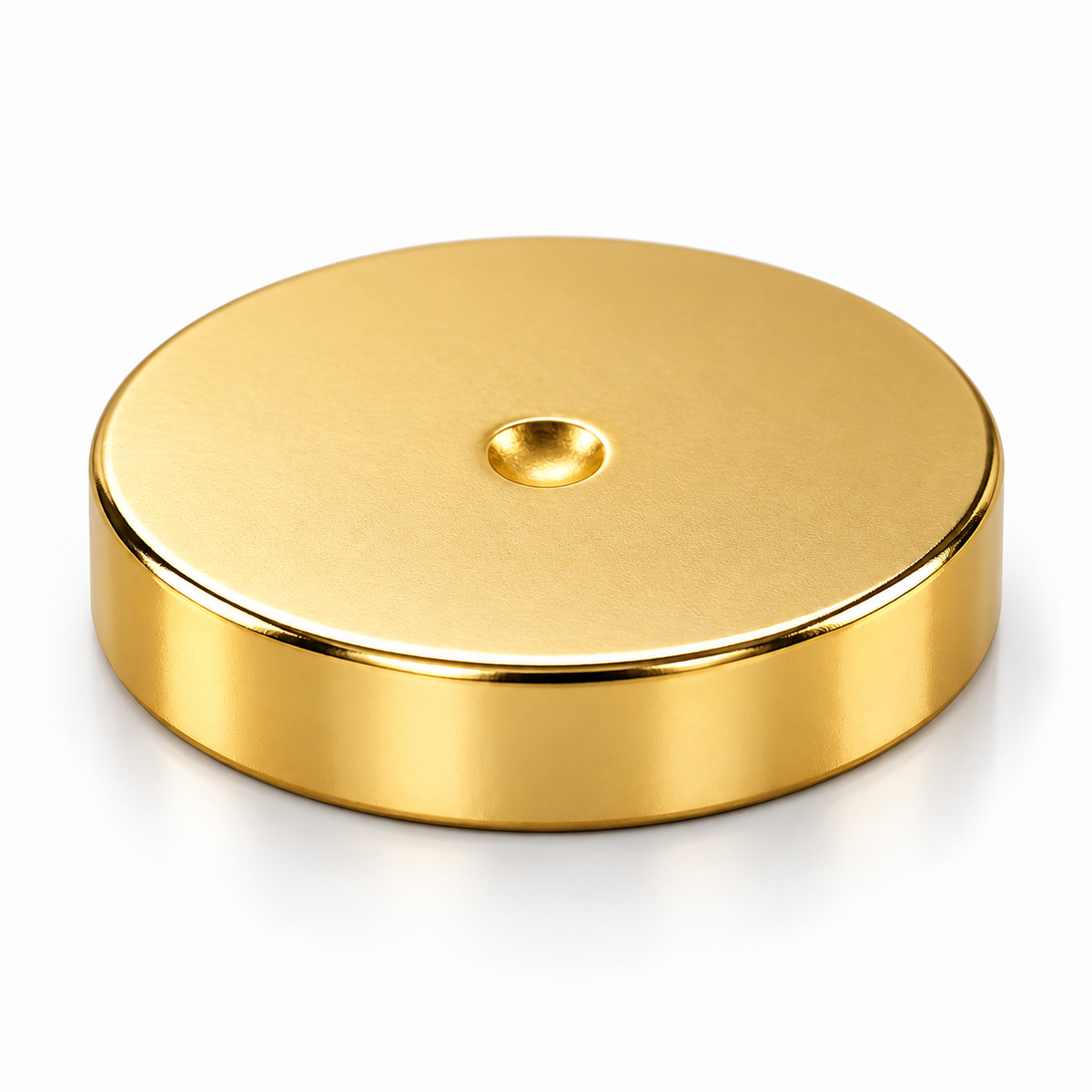

This rare earth disc has a diameter of 6mm and a height of 1.5mm. The North pole is marked with a shallow dimple. It has a magnetic flux reading of 2818 Gauss and a pull force of  400g.  It is identified by the AMFmagnet part number 20079.


Uses for our rare earth disc magnets:

This Gold Coated Neodymium Magnet is an appealing choice for Artists Hobbyists, Jewellers and Model Makers. Their small dimensions coupled with the gold coating make them a visually attractive alternative for hanging and displaying artwork, sculptures and handicrafts. The fixing point can either be disguised or incorporated in to the overall design of an object with these stylish little magnets.

This magnet comes with the handy addition of an indentation to identify the North magnetic pole on one surface. This mark can be particularly helpful for managing projects where two or more magnets need to be configured together in a North/South arrangement in order to attract together. The mark is also a convenient way to reveal the polarity of other unmarked magnets by repelling or attracting the dimple marked face.

Neodymium Disc Magnet - 6mm x 1.5mm | Gold Coating | North Marked (20079)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 5.0 out of 5
Based on 2 reviews
  • 5 Stars
    2 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
2 Reviews
Reviewed by MrT
I recommend this product
Rated 5 out of 5
Review posted

Fast Service, Great Product

Exactly what I needed, exactly as described, fast service

Loading...
Was this helpful?
Reviewed by diviomush
I recommend this product
Rated 5 out of 5
Review posted

Motorcycle speedometer sensor

I attached one of these powerful little magnets to the front disk of a motorcycle and used it in conjunction with a magnetic proximity sensor to give a speed readout. Works great. These magnets are small enough to use anywhere you wanted to monitor or measure rotation this way,

Loading...
Was this helpful?
