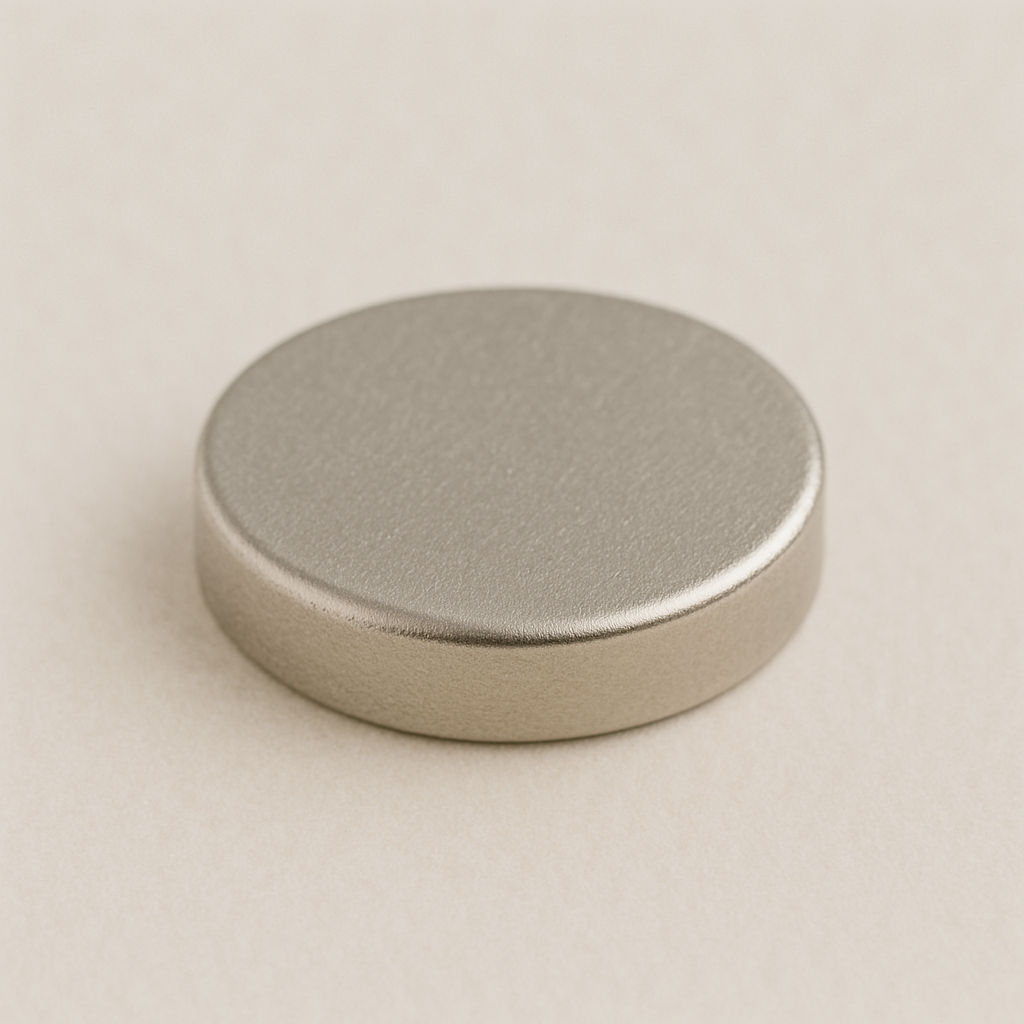

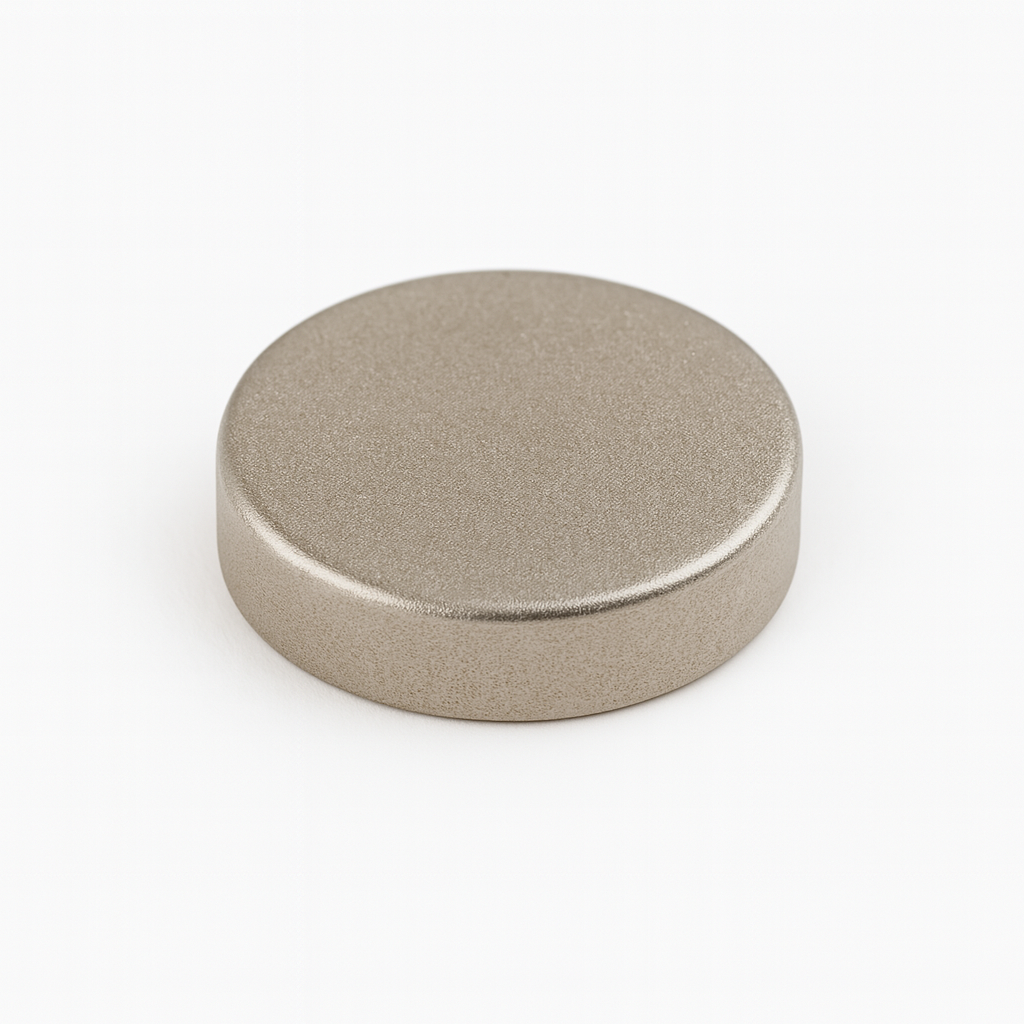

Neodymium Disc Magnet - 6mm x 2mm

Product code: 20075

$0.60for 1 to 99 items
$0.48buy 100 to 999 itemsand save 20%
$0.44buy 1000+ itemsand save 26%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 6mm x 2mm

Product Code 20075
Pull Force* .540kg
Weight 1 gm
Style Rare Earth Disc magnet
Gauss 3495
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:2mm, Diameter:6mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 6mm x 2mm

Magnetic Product Description:

This rare earth disc has a diameter of 6mm and a height of 2mm. It has a magnetic flux reading of 3495 Gauss and a pull force of 540 grams. It is identified by the AMF magnet part number 20075.


Uses for our rare earth disc magnets:

The dimensions and pull force of this magnet make it particularly well suited to applications where small items are being displayed in semi-permanent arrangements. Sample boards are a common use for these practical Neodymium disc magnets. The magnets are easily glued to the back of sample materials such as carpet, fabric, leather, tiles or stone. Two or more magnets can be used for larger or heavyweight items you wish to display so there is no need to keep stock of multiple differently sized magnets.

Events companies use these magnets for a huge assortment of applications and find them perfect for suspending lighting and party décor for medium term use. The magnets are powerful enough to prevent accidental displacement of items, yet not so strong as to inhibit their easy removal when packing up after events.

Neodymium Disc Magnet - 6mm x 2mm (20075)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
