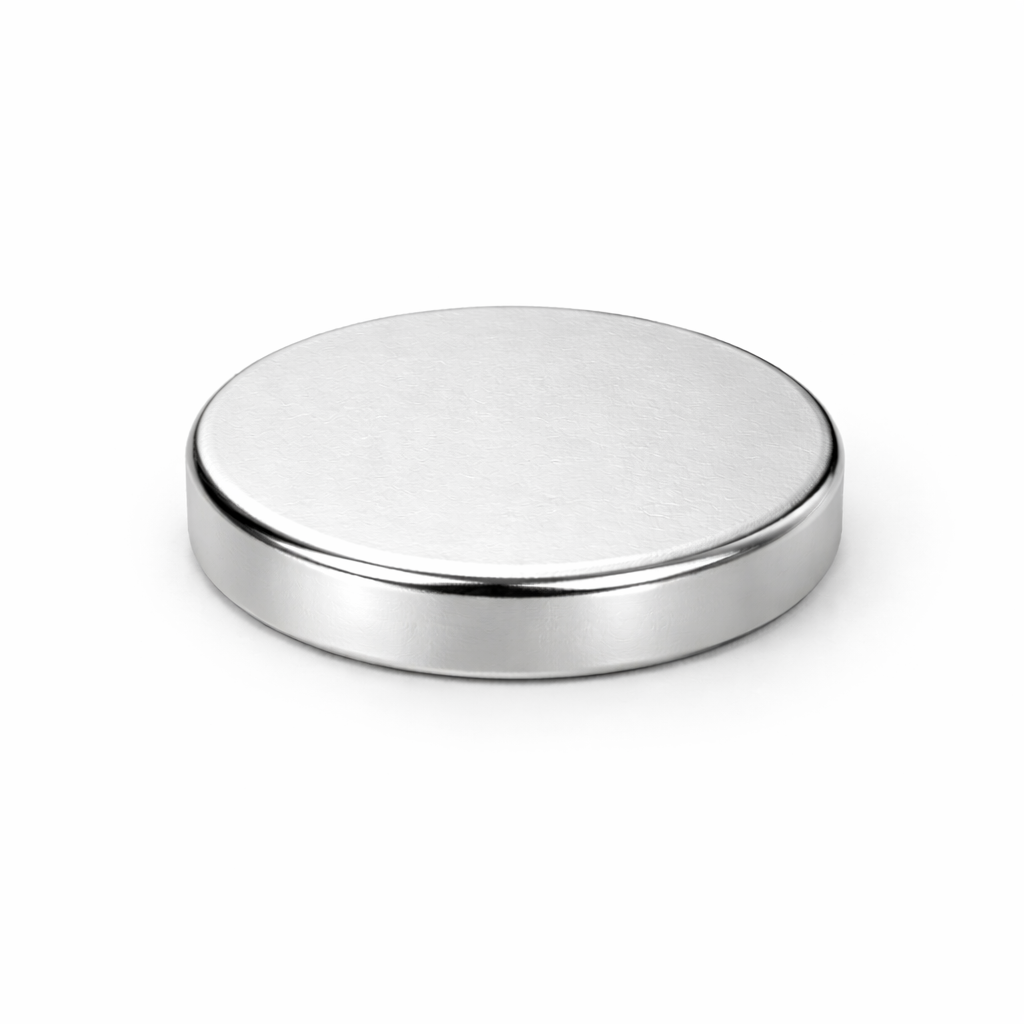

Neodymium Disc Magnet - 12mm x 2mm | N42
Product code: D-D12H2-N42
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
Magnetic Product Description:

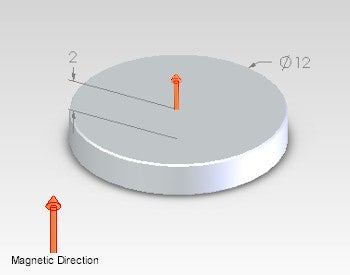

A compact neodymium disc magnet engineered for precision applications. Measuring 12mm in diameter by 2mm thick, this N42-grade magnet delivers a magnetic flux density of 2087 Gauss with an axial pull force of 1.52 kg. Ideal for assembly work, sensor integration, and holding tasks where space is limited. AMF part number: D-D12H2-N42.
Uses for our small Rare Earth disc magnets:
Tradespeople use strong, Rare Earth disc magnets in work vehicles or toolboxes to support tools, nails, screws and other metallic items used while performing their daily duties. A magnet attached to a tool-belt makes the metal components they need easy to reach, especially in enclosed or difficult to access work areas.
Plastic screens or sheets can be held in place temporarily on steel surfaces with small and powerful magnets, so other surfaces are covered and not damaged while the repairs or maintenance takes place. N42 Grade Neodymium is found inside the nickel coating of this disc and is the strongest of all grades.
High-grade Neodymium material means extremely strong magnetic hold can be extracted from magnets that are relatively small in size which makes this type of magnet ideal for crafts, model making and arts.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
