Product code: 23004

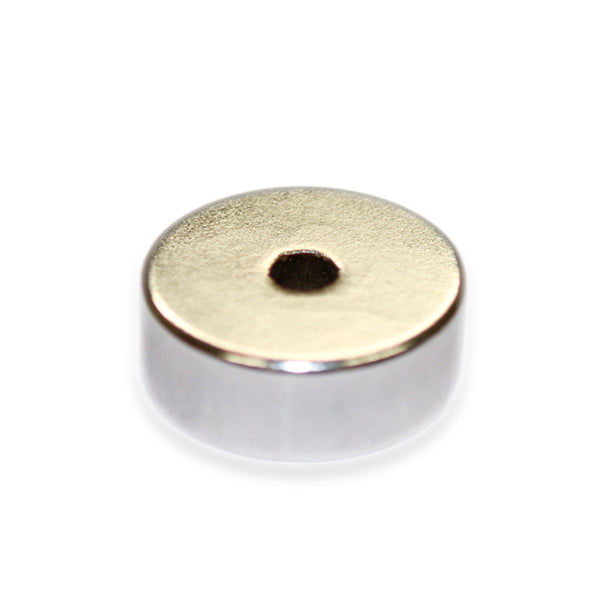

This Rare Earth ring magnet has an outside diameter of 22mm, an inside diameter of 4.5mm and a thickness of 10mm. Made from Neodymium Rare Earth Magnetic material, this strong permanent magnet has a magnetic pull force of 12.6kg. It is identified by the AMF magnet part number 23004.
Neodymium ring magnets are able to hold without a restricting locking engagement. This allows mechanical parts to move at regular intervals, releasing at a predetermined pull force. These powerful ring magnets are in constant demand, most often in the mining, transport and grain processing sectors.
Strong magnetic rings like these are used to help hold and or regulate movement of moving parts. Sometimes threaded onto a spool or axle or rod, ring magnets can compress moving parts that might drift from their position. This reduces the chance of damage or diminished mechanical efficacy.
This strong neodymium magnet is often used in modern lifts, in Tension and compression systems within large scale constructions projects. embed ring magnets like these in order to increase the flexibility and durability of the buildings. The known pull force or magnetic strength of a particular magnet allows engineers to design equipment that is reliable and durable.

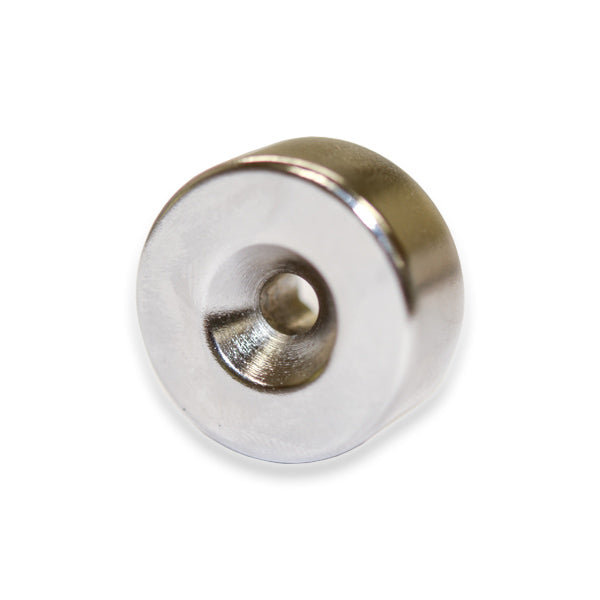

Neodymium Ring Magnet - 22mm x 4.5mm x 10mm | Countersunk (23004)
| Grade | |
|---|---|
| N38 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.23-1.3 | N/A |
| Remanence Br(kGs) | |
| 12.3-13 | N/A |
| Coercivity bHc(kA/m) | |
| >=859 | N/A |
| Coercivity bHc(Oe) | |
| >=10.8 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 286-318 | N/A |
| Max Energy Product(BH)max(MGOe) | |
| 36-40 | N/A |
| Grade | N38 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.23-1.3 | N/A |
| Remanence Br(kGs) | 12.3-13 | N/A |
| Coercivity bHc(kA/m) | >=859 | N/A |
| Coercivity bHc(Oe) | >=10.8 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=955 | N/A |
| Intrinsic Coercivity iHc(Oe) | >=12 | N/A |
| Max Energy Product(BH)max(KJ/m) | 286-318 | N/A |
| Max Energy Product(BH)max(MGOe) | 36-40 | N/A |
