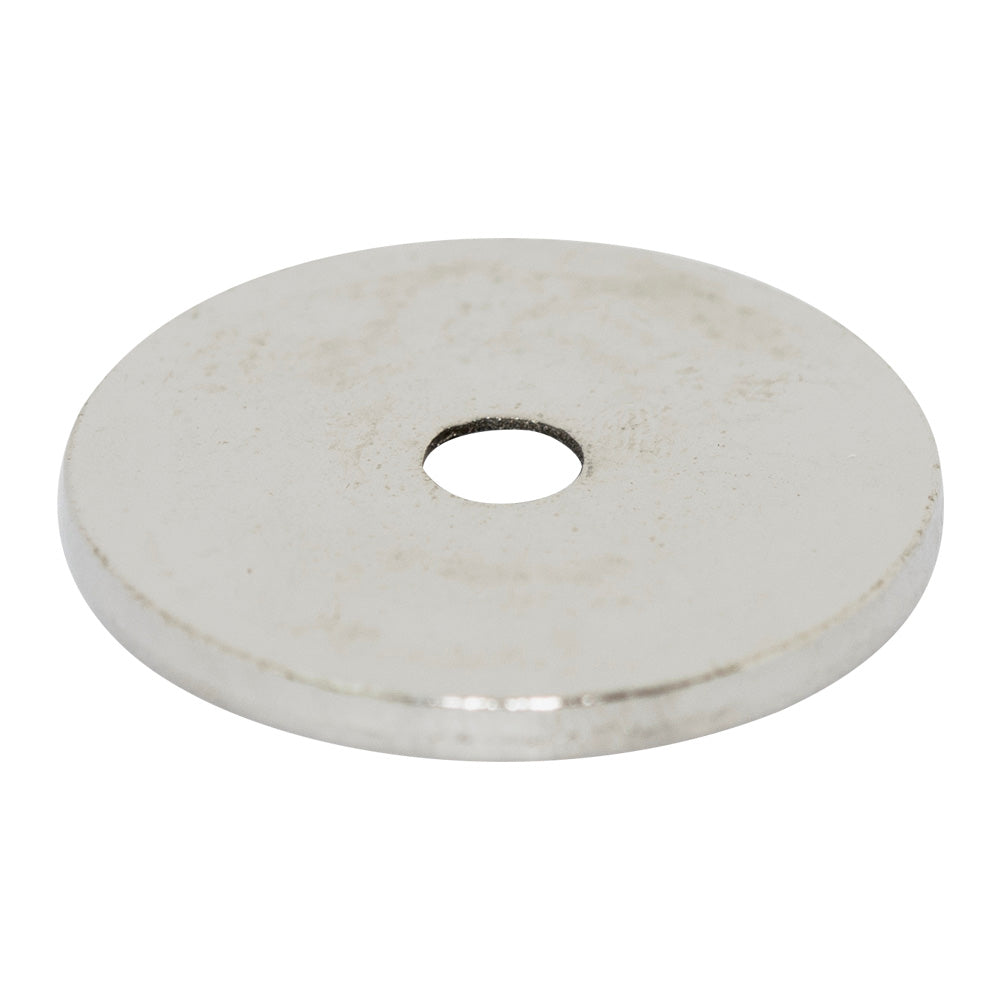

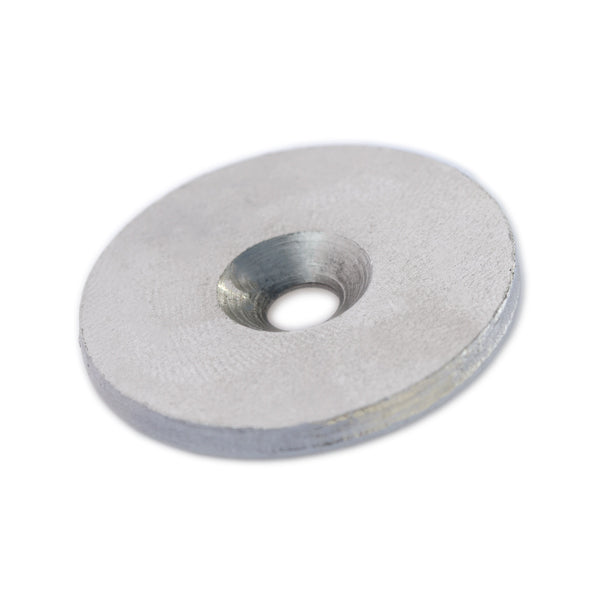

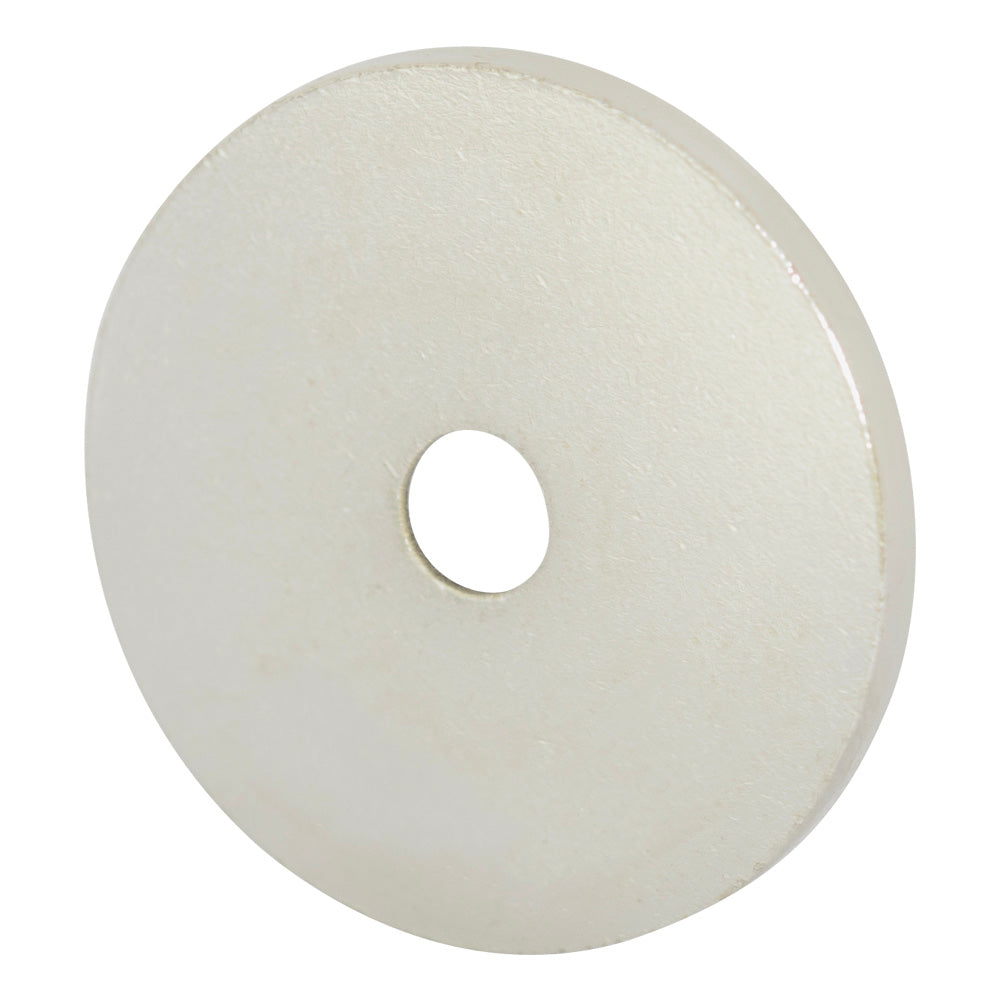

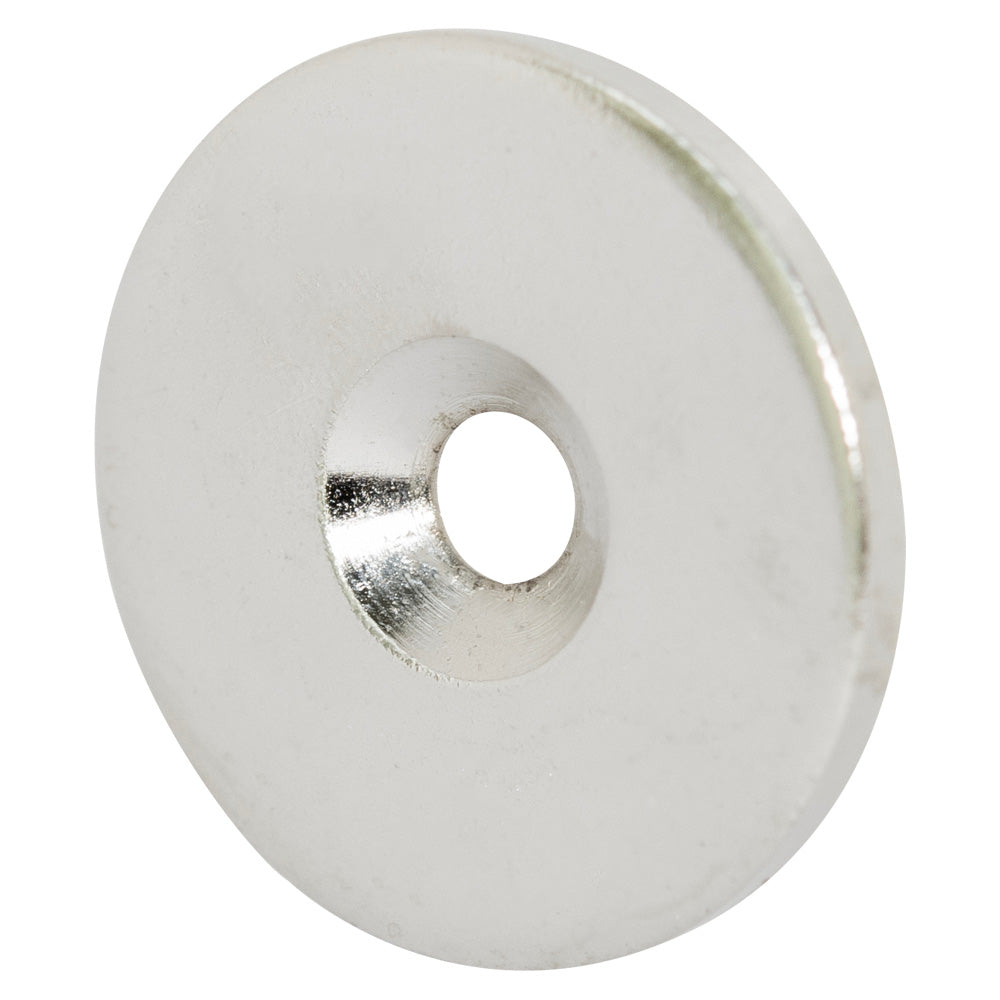

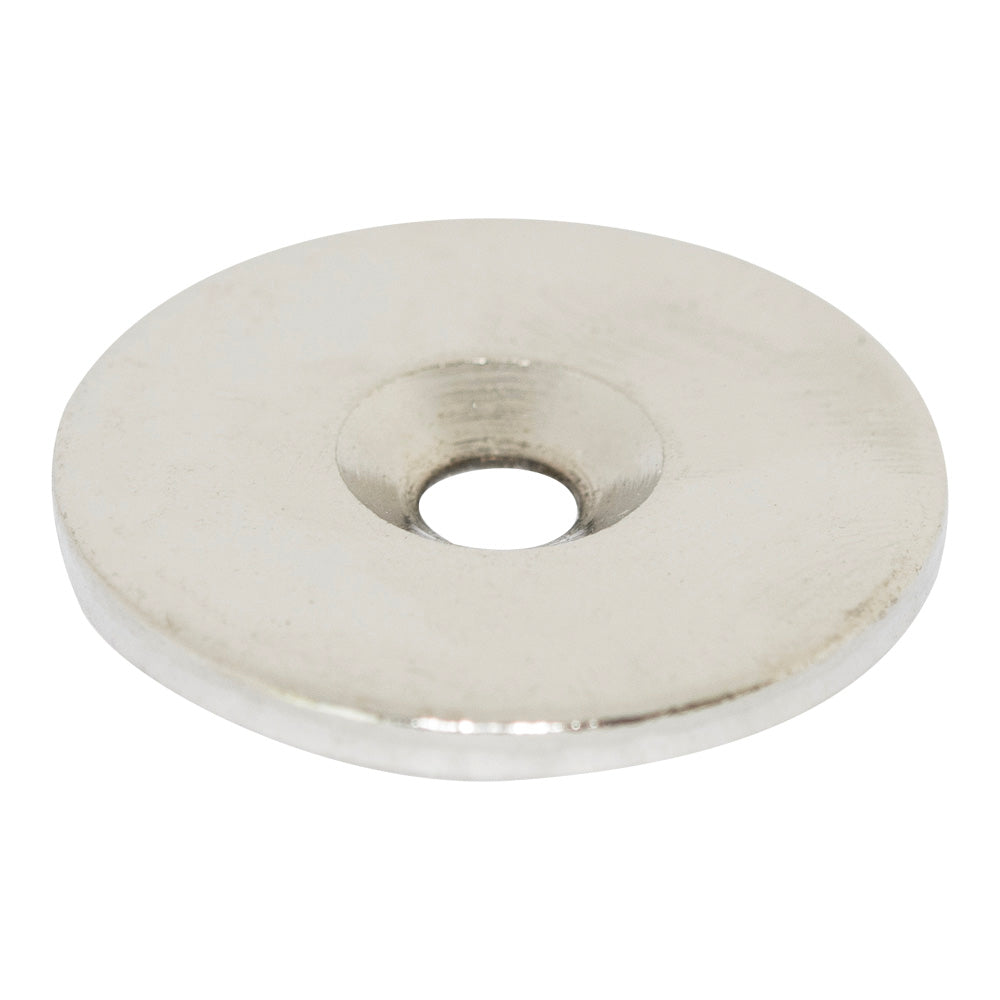

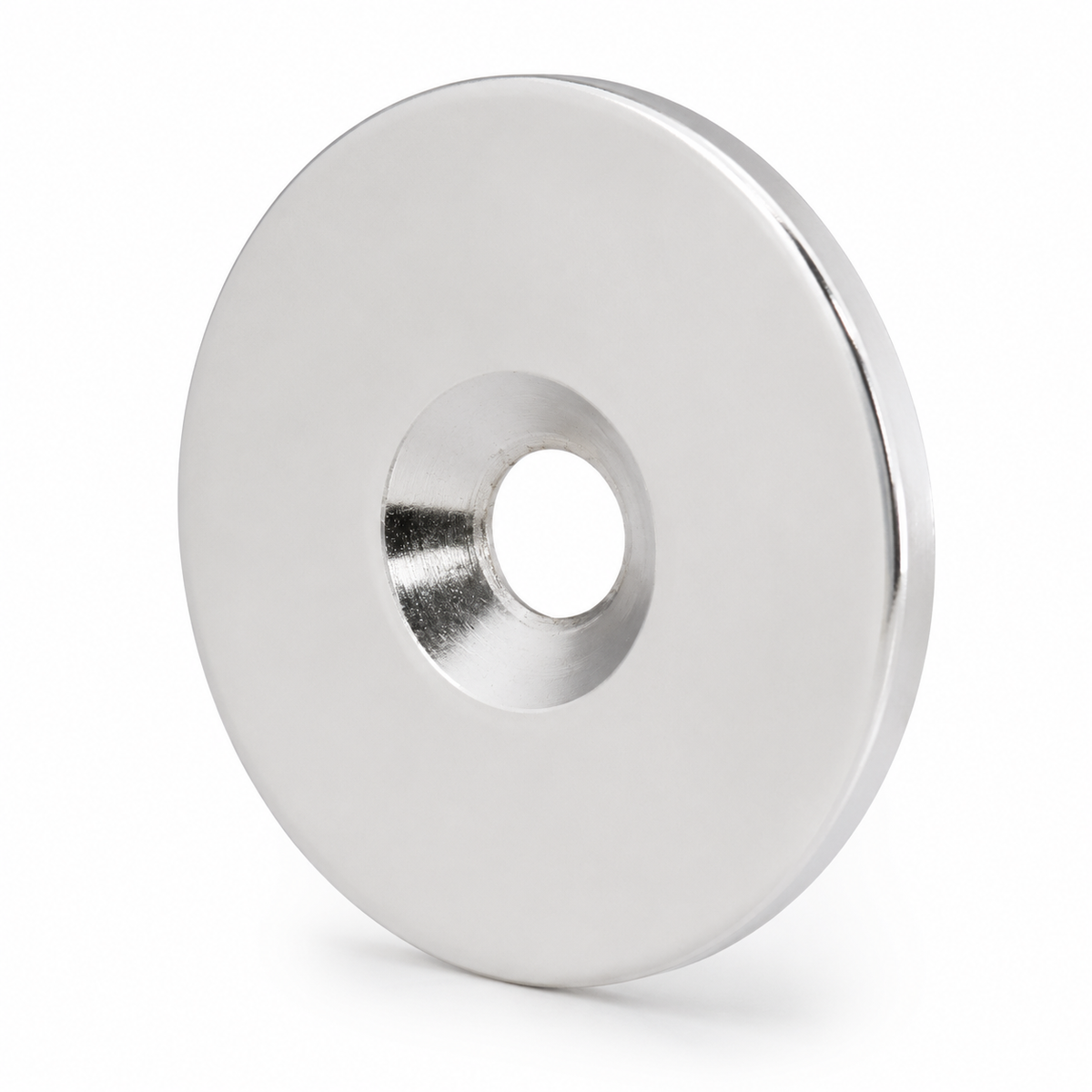

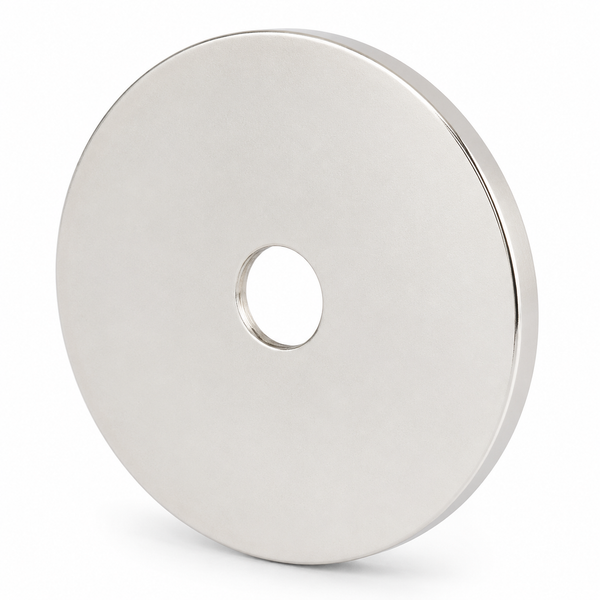

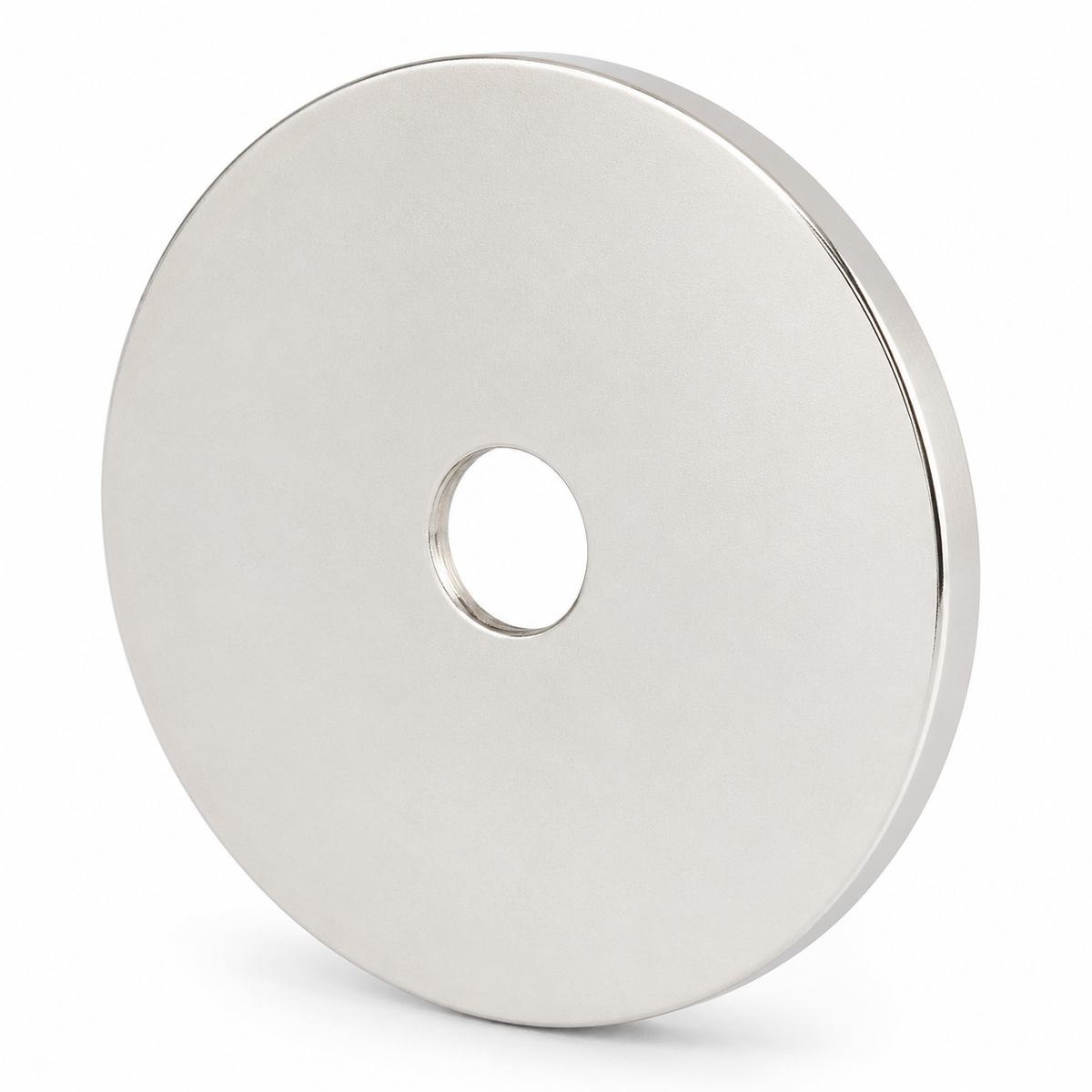

Steel Countersunk Washer (Non-Magnetic) | 30mm x 3mm | ID 5mm

Product code: WASHER30

$1.38for 1 to 9 items
$1.14buy 10 to 99 itemsand save 17%
$1.04buy 100+ itemsand save 24%

Prices are GST Incl.

Volume pricing available on request

Steel Countersunk Washer (Non-Magnetic) | 30mm x 3mm | ID 5mm

Product Code WASHER30
Pull Force* N/A
Weight 10 gm
Style Steel Countersunk Washer
Tolerance +/- 0.05mm
Coating Nickel (NiCuNi)
Dimensions Outside Diameter:30mm, Inside Diameter:5mm, Thickness:3mm

Product Description:

Used as a metal contact point which magnets are attracted to, our Steel Countersunk Washers have an outer diameter (OD) of 30mm, a thickness of 3mm and an inner diameter (ID) of 5mm. This product is identified by AMF Magnetics Part Number 'Steel Washer 30'.


Uses for our Steel Countersunk Washers:

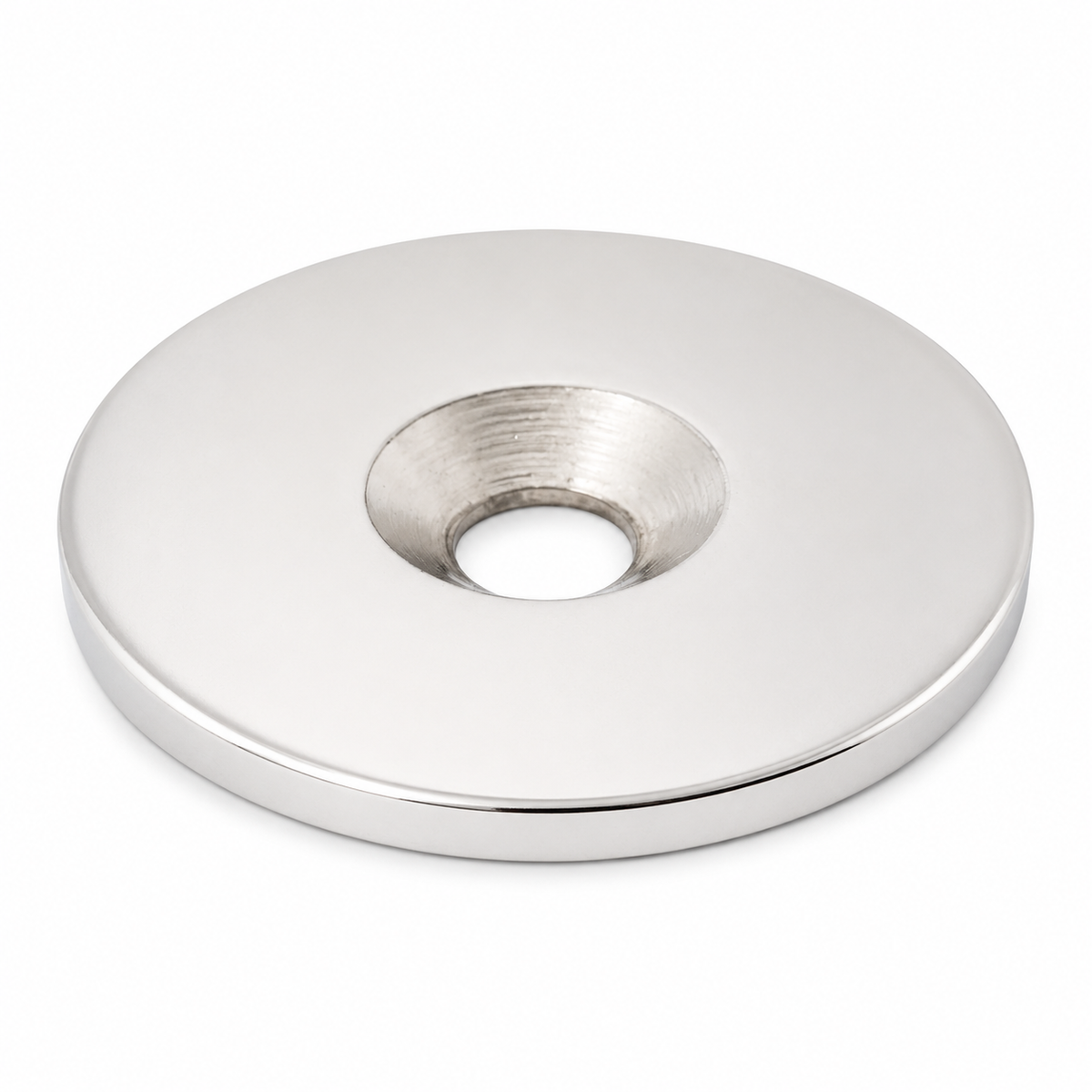

Made from high quality steel, with a nickel coating for corrosion resistance, our steel washers are used as a metal contact point which magnets are strongly attracted to. Featuring a 5mm countersunk hole, perfect for use with flat-head screws.

Steel Countersunk Washer (Non-Magnetic) | 30mm x 3mm | ID 5mm (WASHER30)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
